VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
168 02.9678.0010 F
DMX Input PCB
24.9663.3830 Rev B
Refer to Figure 3-70

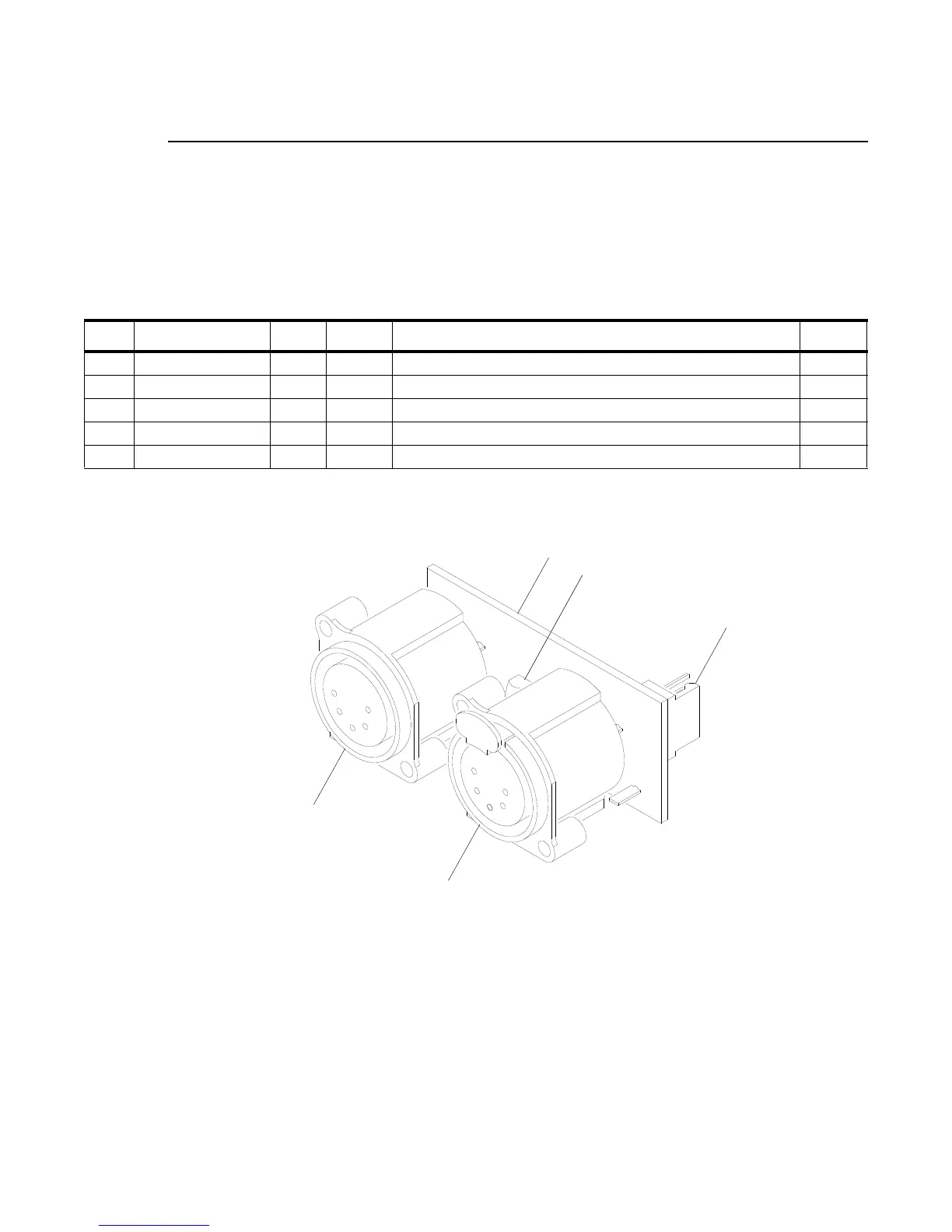

Figure 3-70: DMX Input PCB
No. Item Qty. UM. Description Ref.
1 11.9663.1830 1 EA PCB FAB, DMX INPUT -
2 52.6259.0006 1 EA HEADER, 5POS MTA FRCT LOK STRT POST J3
3 52.6625.0006 1 EA CONN, RECPT XLR 5P FEM PC MT VERT J1
4 52.6626.0006 1 EA CONN, RECPT XLR 5P MALE PC MT VERT J2
5 62.3017.0102 1 EA CAP, 1000PF 250V RAD CER DISC 20% Y-TYPE C1
1
2
3
4
5
