HEAD ASSEMBLY : STROBE ASSEMBLY (VL3000 QUIET)
02.9678.0010 F 123
3
Strobe Assembly (VL3000 Quiet)
22.9678.0463 Rev B
Refer to Figure 3-33

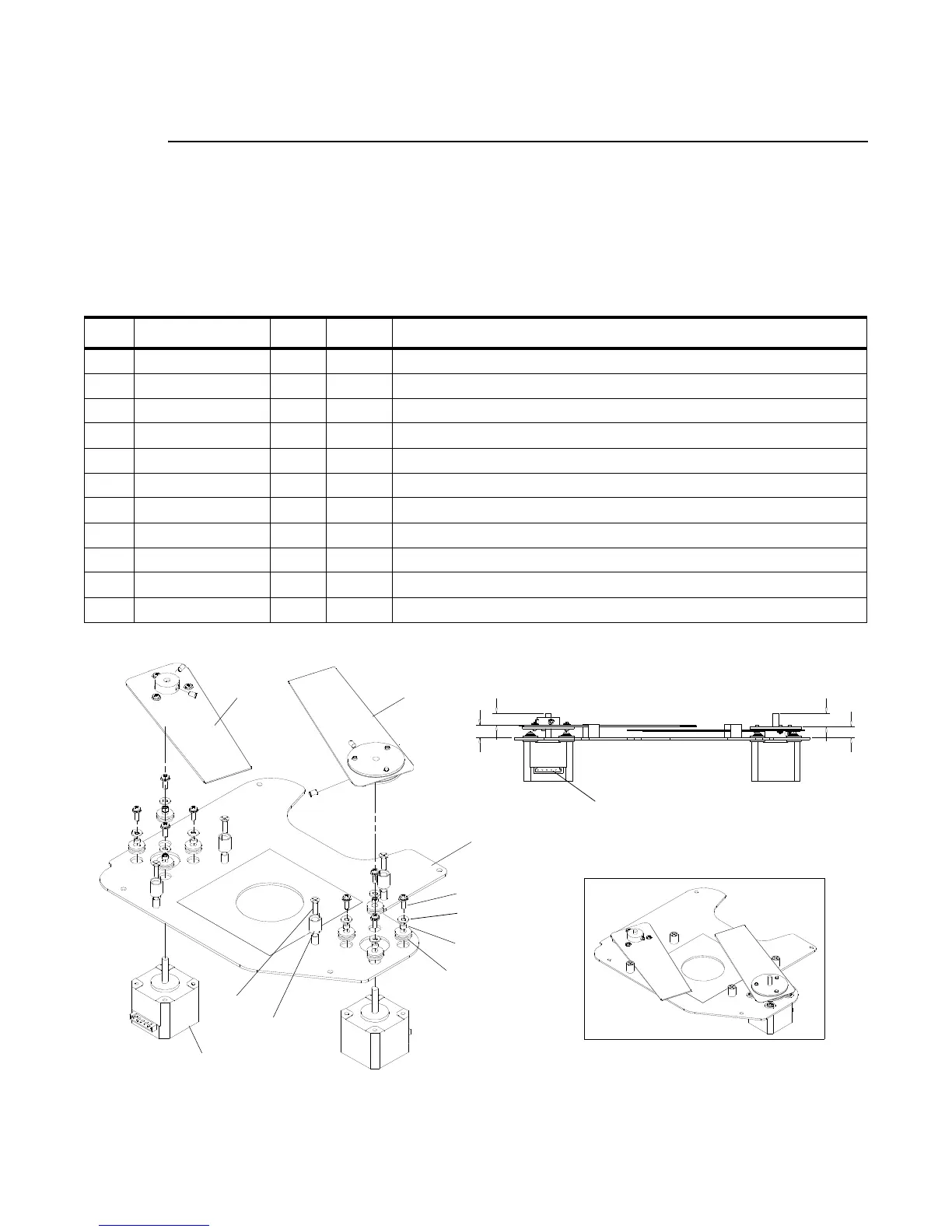

Figure 3-34: Strobe Assembly
No. Item Qty. UM. Description
1 10.9678.0491 4 EA BUMPER STOP, STROBE
2 10.9678.0465 1 EA STROBE BULKHEAD
3 22.9678.0467 1 EA ASSEMBLY, RIGHT STROBE BLADE
4 22.9678.0468 1 EA ASSEMBLY, LEFT STROBE BLADE
5 23.9678.0499 2 EA ASSEMBLY, STROBE MOTOR, VL3000Q
6 53.6520.0001 8 EA SCREW, #4-40 X 3/8 PPZ
7 53.6609.0500 4 EA SCREW, 6-32 X 1/2"LG PFZ
8 55.3306.0006 8 EA WASHER, .375 OD .149 ID .025 THK SS
9 55.6537.0001 8 EA WASHER, #4 INTERNAL LOCK TOOTH
10 55.6659.0001 8 EA SPACER, 1/4" RND 4 THRU 3/16" AL
11 55.6706.0001 8 EA GROMMET, 9/32" ID, 9/16" OD, 1/4" TH SILICONE
Set blade assemblies according
to dimensions shown
.389
.410
.455
.355
1 (x2)
2
4
3
5 (x2)
6 (x8)
7 (x4)
10 (x8)
9 (x8)
11 (x8)
This motor connector faces down
