VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
82 02.9678.0010 F
80mm Fan Assembly
21.9678.0619 Rev B
Refer to Figure 3-4

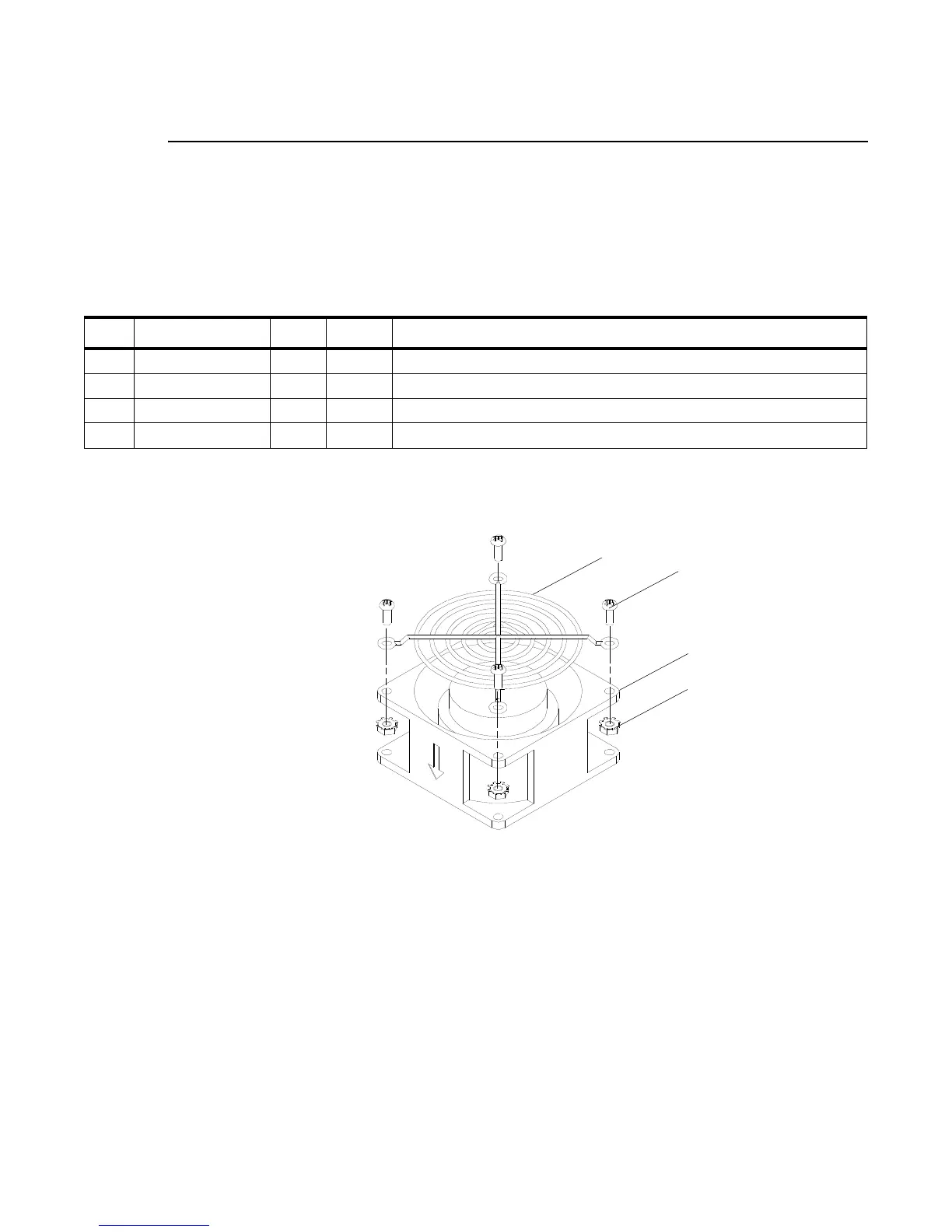

Figure 3-4: 80mm Fan Assembly
No. Item Qty. UM. Description
1 40.7145.0004 1 EA FAN, TUBEAXIAL 80 X 80 X 38mm 28 CFM 230V (added 03/11/04)
2 53.2200.0006 4 EA NUT, 6-32 KEPS SS
3 53.6558.0001 4 EA SCREW, 6-32 X 3/8" PPZ
4 55.7016.0001 1 EA FAN GUARD, 80MM NICKEL PLATED STEEL WIRE
1
2 (x4)
3 (x4)
4
