Vari Lite VL3000 - Rotating Effects Wheel Assembly

VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
88 02.9678.0010 F
Rotating Effects Wheel Assembly
21.9678.0211 Rev B
Refer to Figure 3-8

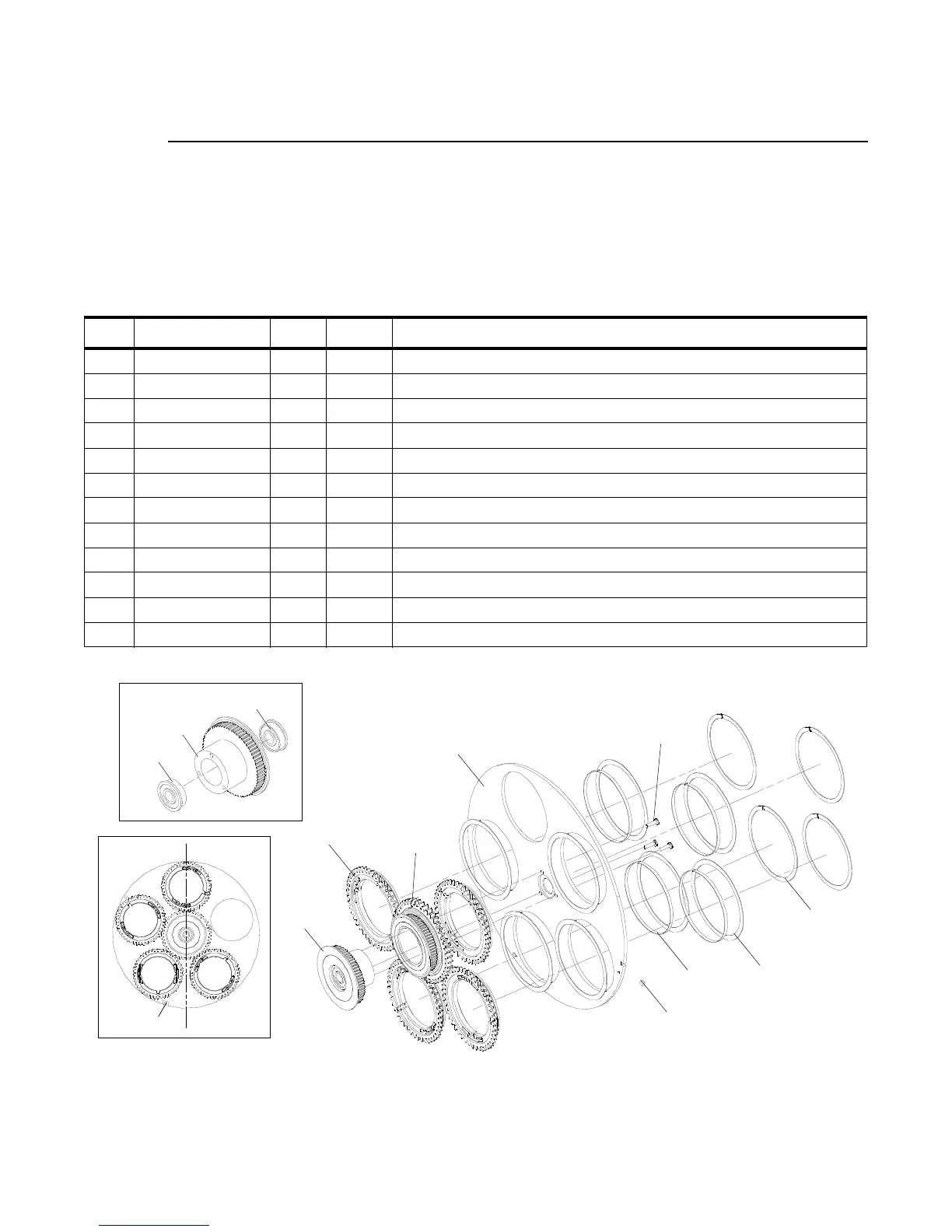

Figure 3-8: Rotating Effects Wheel Assembly
No. Item Qty. UM. Description
1 10.9663.1211 8 EA SPACER, TEFLON GOBO GEAR
2 10.9663.1240 4 EA BEARING, GOBO WHEEL BORE
3 10.9678.0221 1 EA PLATE, ROTATING EFFECTS WHEEL
4 10.9678.0224 4 EA RETAINING RING, PLANET
5 22.9678.0230 4 EA ASSY, PLANET GEAR
6 22.9678.0233 1 EA SUN GEAR, MOLDED ELASTOMERIC INTEGRAL BEARING
7 22.9678.0234 1 EA ASSY, PULLEY GOBO WHEEL HUB
7a - 10.9678.0227 1 EA PULLEY, HUB, GOBO WHEEL
7b - 54.1259.0001 2 EA BEARING, RAD. FLANGED .25" ID .625"OD
8 53.6650.0001 3 EA SCREW, 2-56 X 5/16"
9 55.2256.0001 1 EA MAGNET, 2:17 SMCO 2MM X 2MM X 3MM
10 10.9678.0250 1 EA MAGNET TAPE .375"W x .625" L x .0035" THICK (changed 07-15-03)
1 (x8)
2 (x4)
3
4 (x4)
5 (x4)
6
7
8 (x3)
9
7a
7b
7b
10
