Vari Lite VL3000 - Beam Spreader Assembly

HEAD ASSEMBLY : BEAM SPREADER ASSEMBLY
02.9678.0010 F 135
3
Beam Spreader Assembly
21.9678.0910 Rev A (Wash Only)
Refer to Figure 3-46

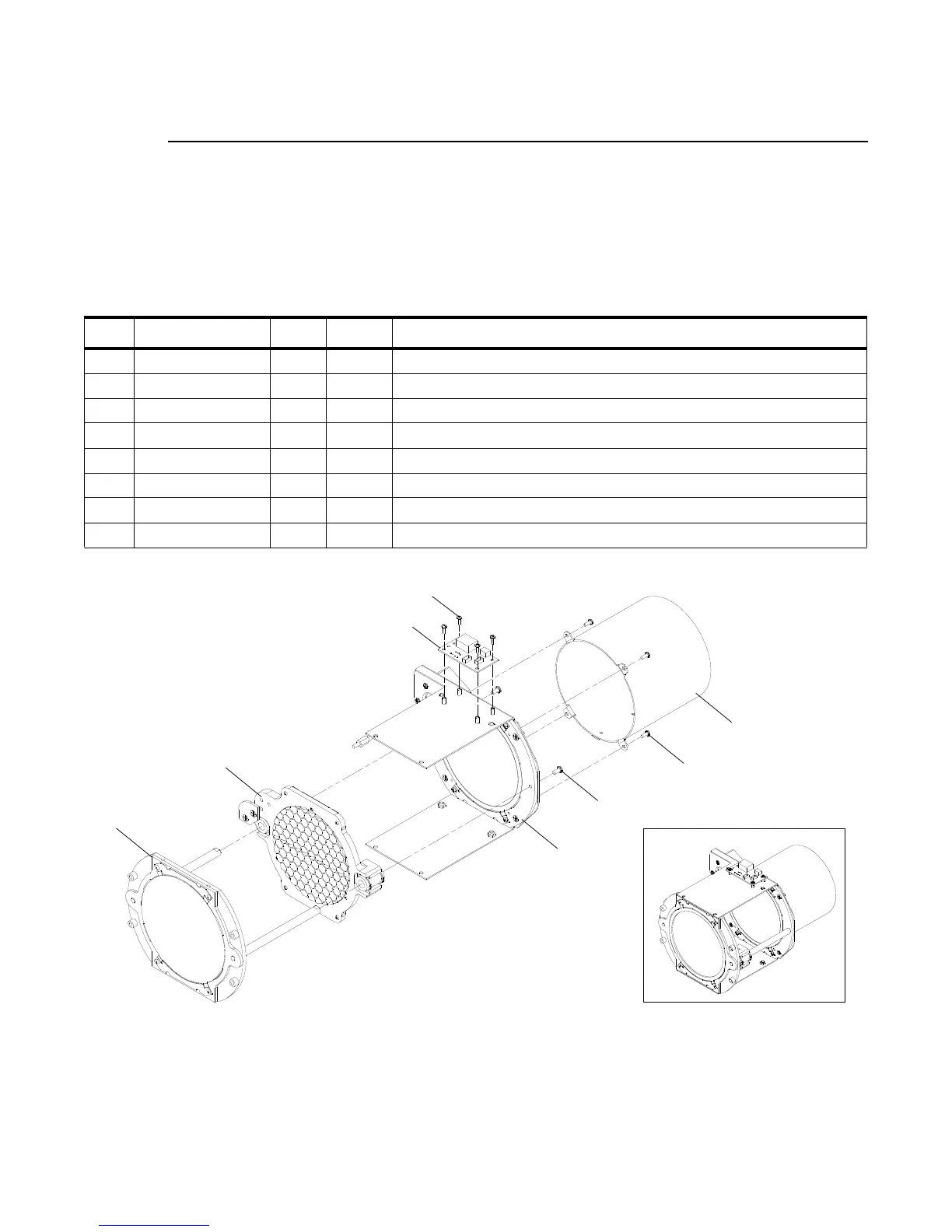

Figure 3-46: Beam Spreader Assembly
No. Item Qty. UM. Description
1 10.9678.0945 1 EA TUBE, WASH LIGHT BAFFLE
2 21.9678.0920 1 EA ASSY, CONCAVE LENS STATIONARY
3 21.9678.0930 1 EA ASSY, CONVEX LENS TRANSLATING
4 21.9678.0940 1 EA ASSY, CONDENSER LENS
5 24.9678.3916 1 EA PCB ASSY, ZOOM INTERCONNECT WASH
6 53.6520.0375 4 EA SCREW, 4-40 X 3/8" PPZ SEMS
7 53.6682.0022 2 EA SCREW, 8-32 X 3/8" PPZ
8 53.6558.0009 4 EA SCREW, 6-32 X 3/8" PPZ
1
2
3
4
5
6 (x4)
7 (x2)
8 (x4)
