Vari Lite VL3000 - Group 2 Lens Assembly

HEAD ASSEMBLY : GROUP 2 LENS ASSEMBLY
02.9678.0010 F 107
3
Group 2 Lens Assembly
22.9678.0182 Rev A
Refer to Figure 3-21

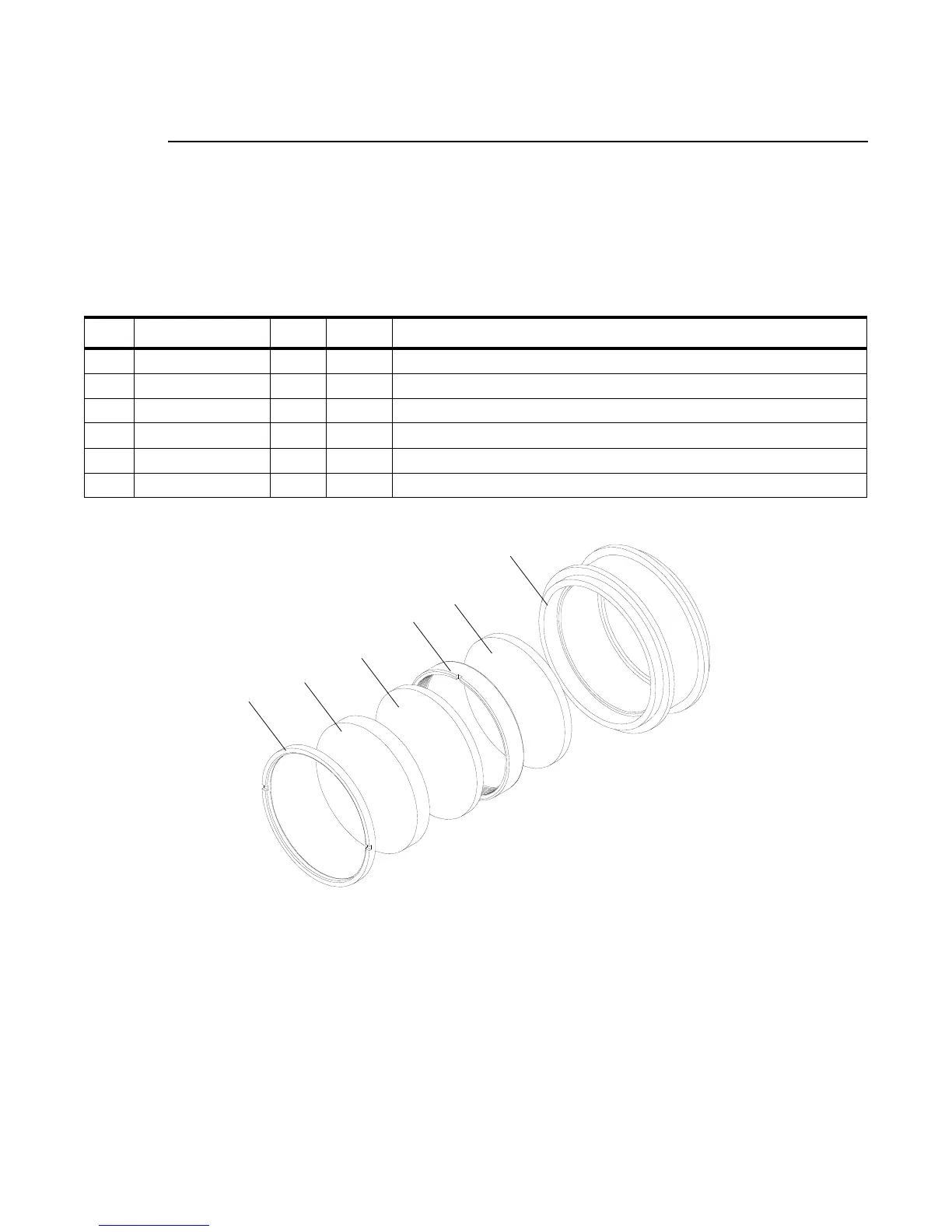

Figure 3-21: Group 2 Lens Assembly
No. Item Qty. UM. Description
1 10.9678.1127 1 EA LENS RETAINER, GROUP 2 (changed 6-12-03)
2 10.9678.0177 1 EA LENS SPACER, L6-L7/G2
3 10.9678.0189 1 EA LENS BARREL, GROUP 2
4 42.9678.0135 1 EA LENS, #5
5 42.9678.0136 1 EA LENS, #6
6 42.9678.0137 1 EA LENS, #7
1
2
3
4
5
6
