VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
86 02.9678.0010 F

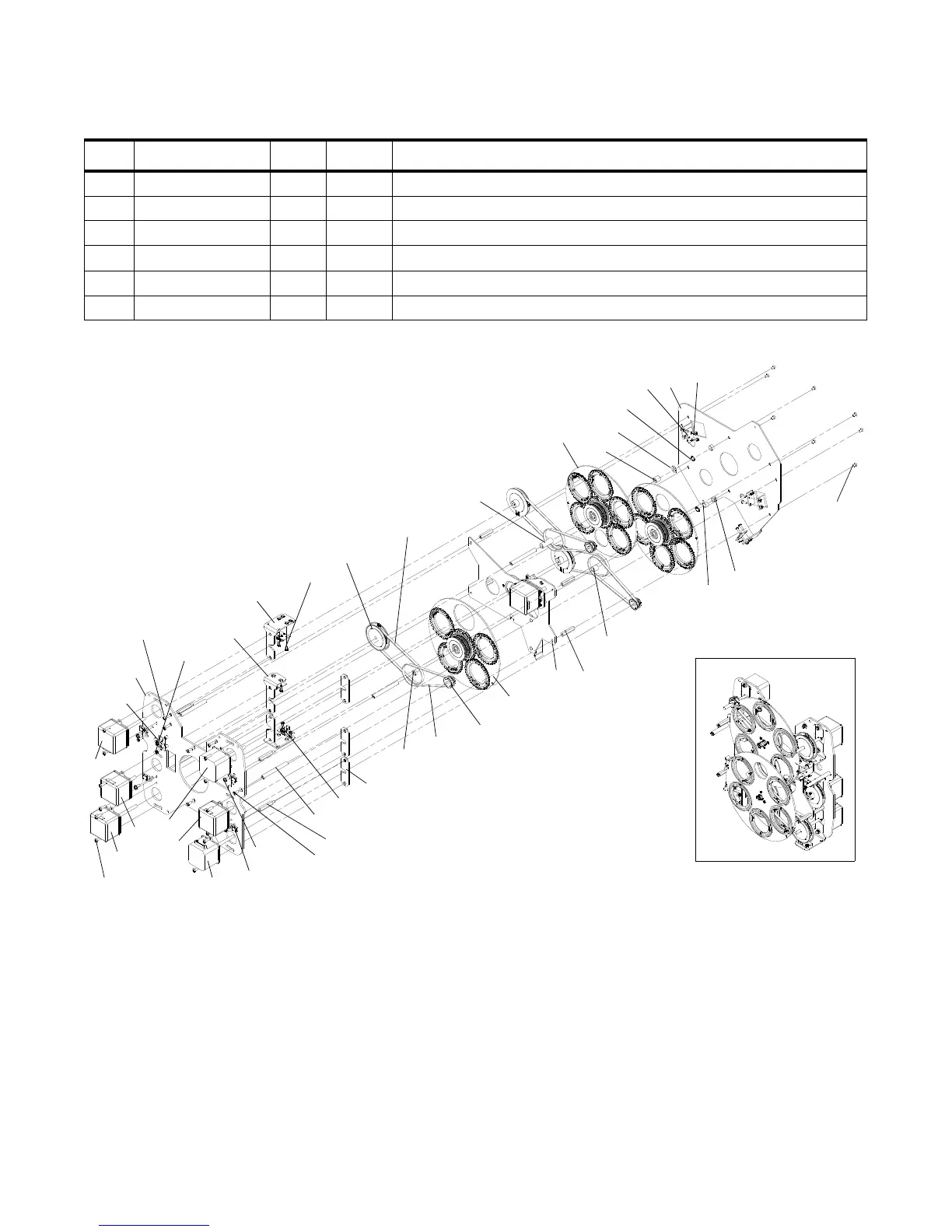

Figure 3-6: Spot Gobo Assembly
31 53.6609.0001 4 EA SCREW, 6-32 X 3/8" PFZ
32 55.6506.0030 1 EA SPACER, 3/8" RND 3/8" LG .257" ID THRU ALUM
33 55.2110.0002 1 EA WASHER, .400" OD .260 ID .010" THK FLAT SS (added 4-29-03)
34 10.9678.0457.02 2 EA SPACER, RND, 3/8" OD, .257 ID, .190 LG, AL (added 4-29-03)
35 55.6520.0001 2 EA WASHER WAVE SPRING .265" ID .367" OD .006" THK (added 4-29-03)
36 10.9678.0457.04 1 EA SPACER, RND, 3/8"OD, .257 ID , .031 LG, AL (added 6-09-03)
No. Item Qty. UM. Description
1
2
3 (x4)
4 (x3)
5 (x3)
6 (x2)
7
8 (x3)
9
10 (x2)
11
12
13
14 (x3)
15 (x3)
16
17
18 (x6)
19 (x2)
20 (x8)
21 (x8)
22 (x4)
23 (x3)
24 (x3)
25 (x4)
26 (x4)
27 (x4)
28 (x6)
29
30
31 (x4)
14
18 (x6)
19 (x6)
22 (x12)
17
16
12
32
33
34 (x2)
35 (x2)
36
