HEAD ASSEMBLY : HOT BOX ASSEMBLY
02.9678.0010 F 93
3
Hot Box Assembly (continued)

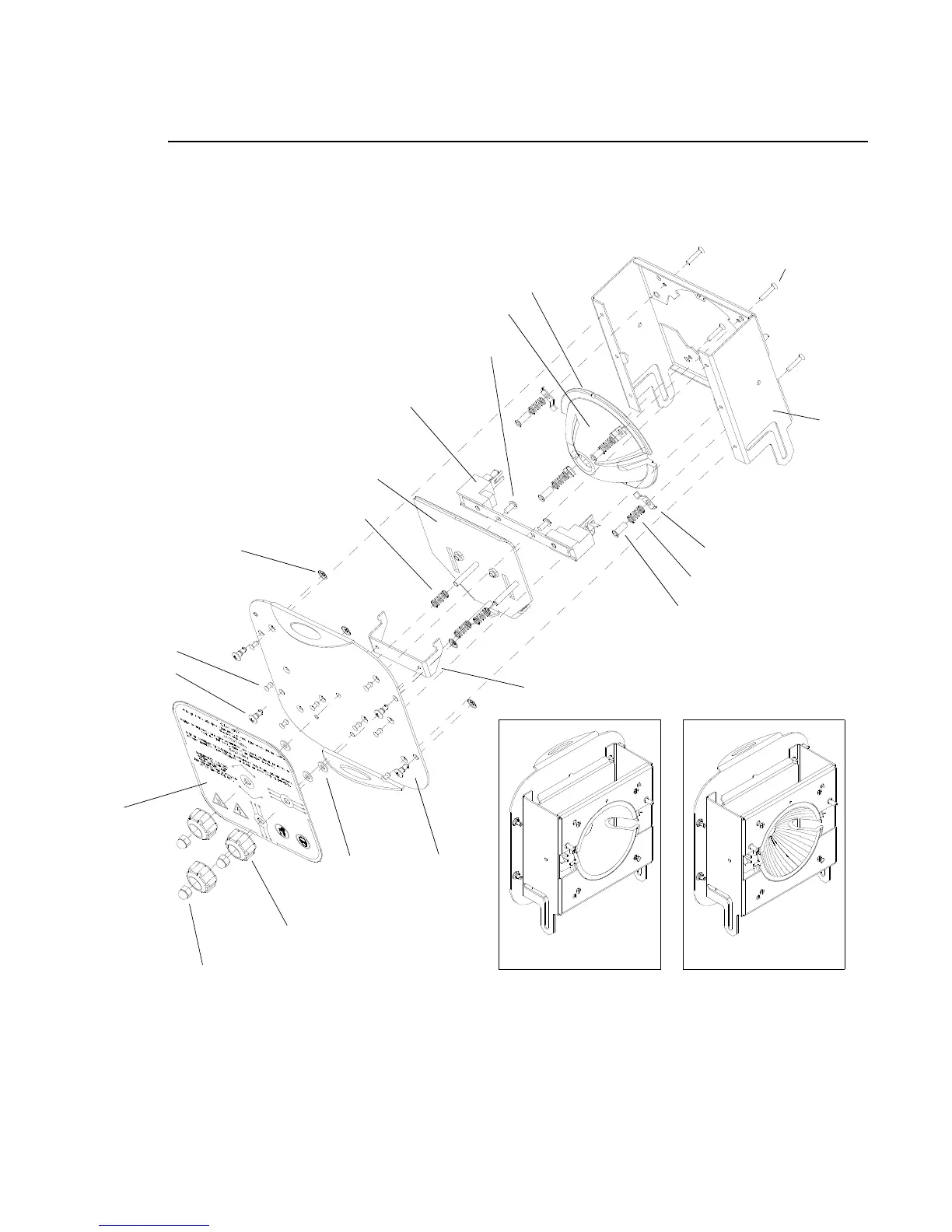

Figure 3-11: Hot Box Assembly
1
2
3
4
5 (x3)
6
11
13 (x3)
14 (x2)
12 (x4)
15 (x8)
16 (x4)
17 (x4)
18 (x3)
19 (x3)
20
8 (x4)
10 (x4)
7 (x4)
9 (x4)
Wash Version
Spot Version
