MAINTENANCE PROCEDURES : GOBO GEAR PLANET ALIGNMENT
02.9678.0010 F 39
2

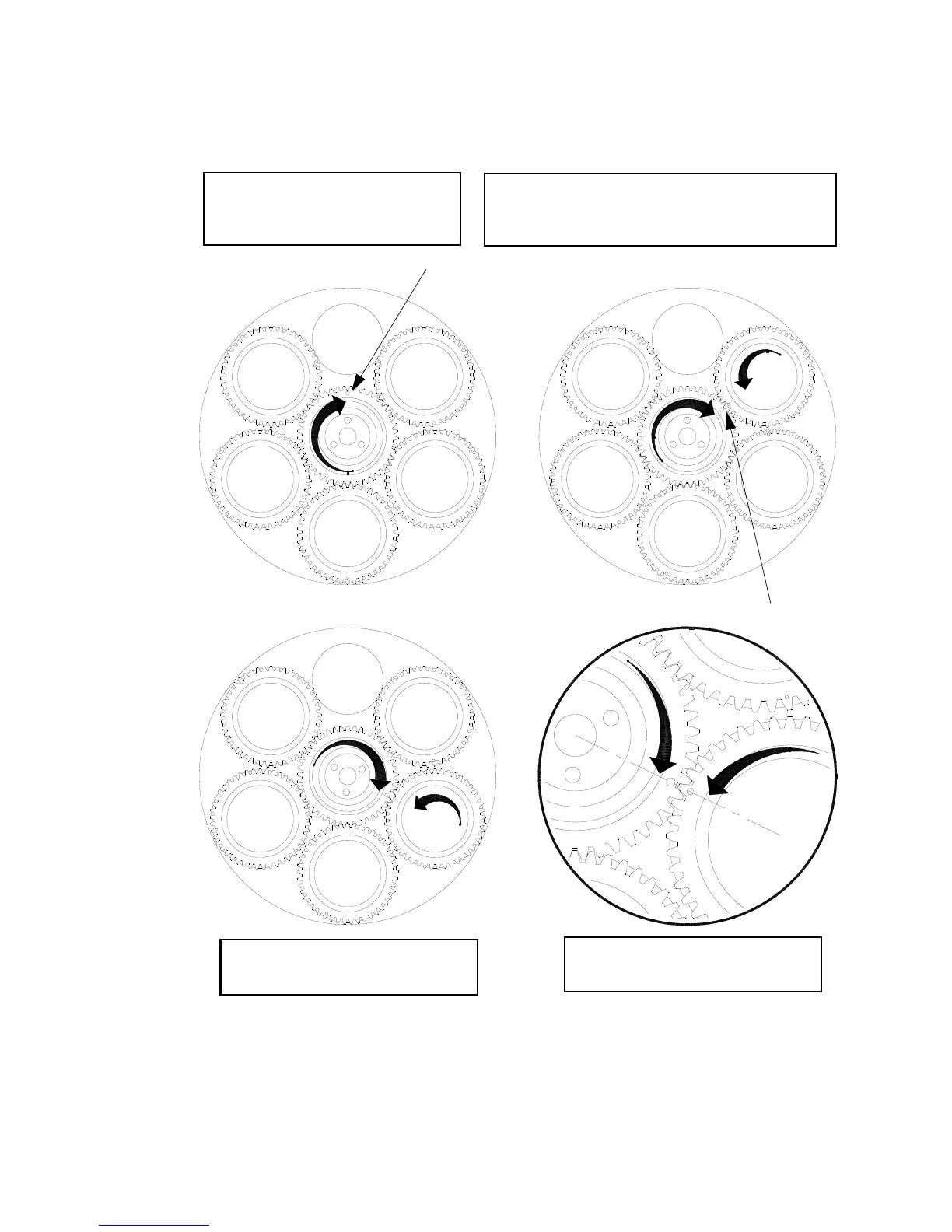

Figure 2-18: Aligning Gobo Planet Gears
open
1
2
3
4
5
6
Alignment Mark
1) Start with center gear timing
mark facing Position 1 (open).
2) Rotate center gear clockwise until timing mark
is directly across from Position 6. Rotate
Position 6 gear until timing marks align.
Align both marks
6
5
3) Align remaining gobo gears
using the same method.
4) Verify alignment of all marks
and adjust as necessary.
