MAINTENANCE PROCEDURES : BALLAST ASSEMBLY REPLACEMENT
02.9678.0010 F 47
2
Table 3: VL3000 Ballast Connector Locations

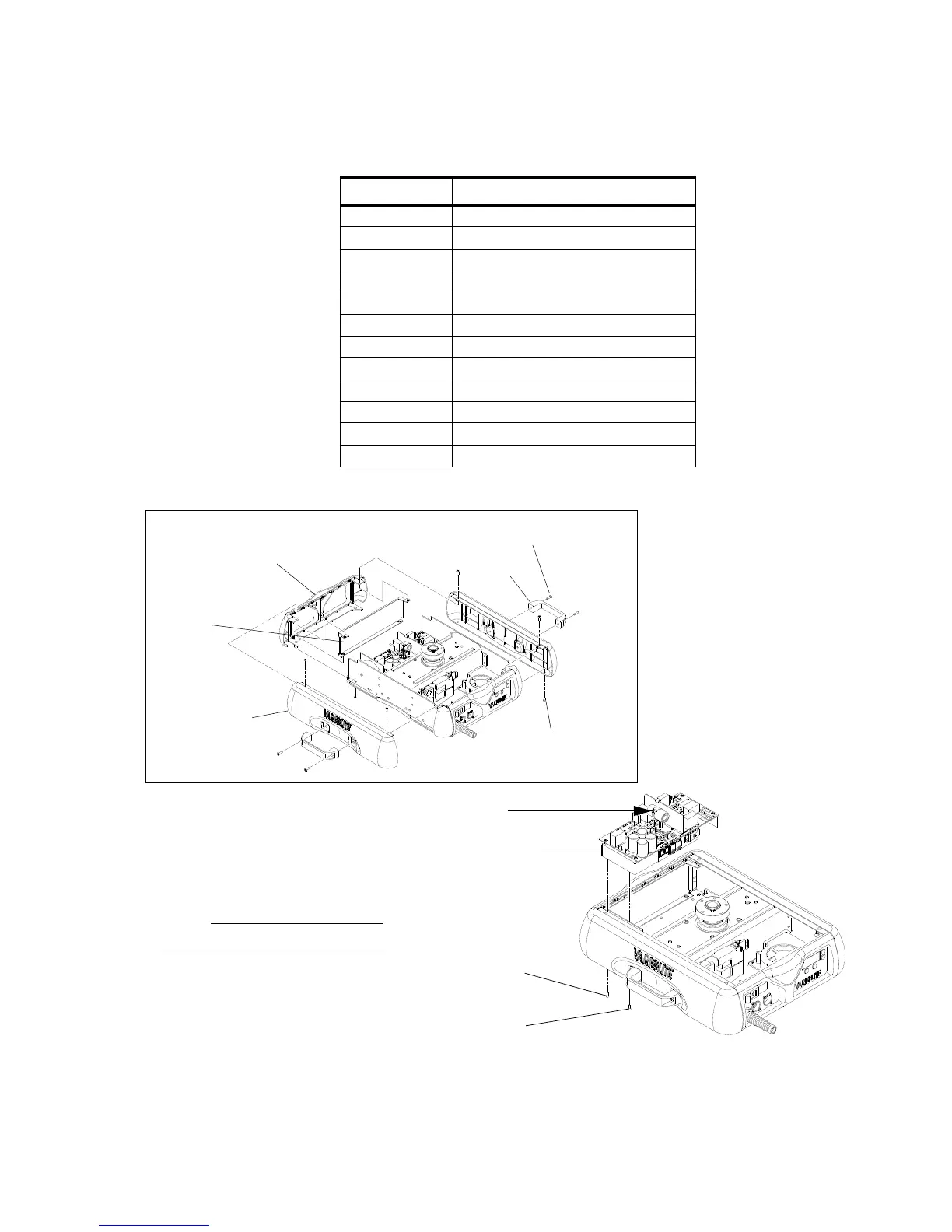

Figure 2-26: VL3000 Ballast Assembly Replacement
- See next page for instructions on the new style ballast -
Location Connector
J102 2-Pos Connector
J103 3-Pos Mate N Lok
J108 Red 1+ (Choke)
J109 Dark Blue 2– (Choke)
J110 Orange 3+ (Choke)
J111 Orange 4– (Choke)
J112 8-Pos MTA
J113 3-Pos MTA
J202 Lamp Wires (Black)
J203 Lamp Wires (White)
J204 Light Blue (Choke)
J205 Red (Choke)
1)
Some components not shown for clarity.
NOTE:
Front Cover
6-32×3/8"
PPZ Screw (8)
Side Cover (2)
APS Side
Bracket
10-32x5/8" PPB Screw (2)
Handle
8-32×3/8”
PFZ Screw (3)
Ballast
Module
Ferrite core
Pull wires through here.
8-32x3/8"
PPZ Screws (2)
2)
