VARI❋LITE® - VL3000™ SERIES LUMINAIRE SERVICE MANUAL
50 02.9678.0010 F
Note: Fixtures manufactured before 02/17/05 do NOT have a heat shield installed between the 80MM
fan and the lamp house.

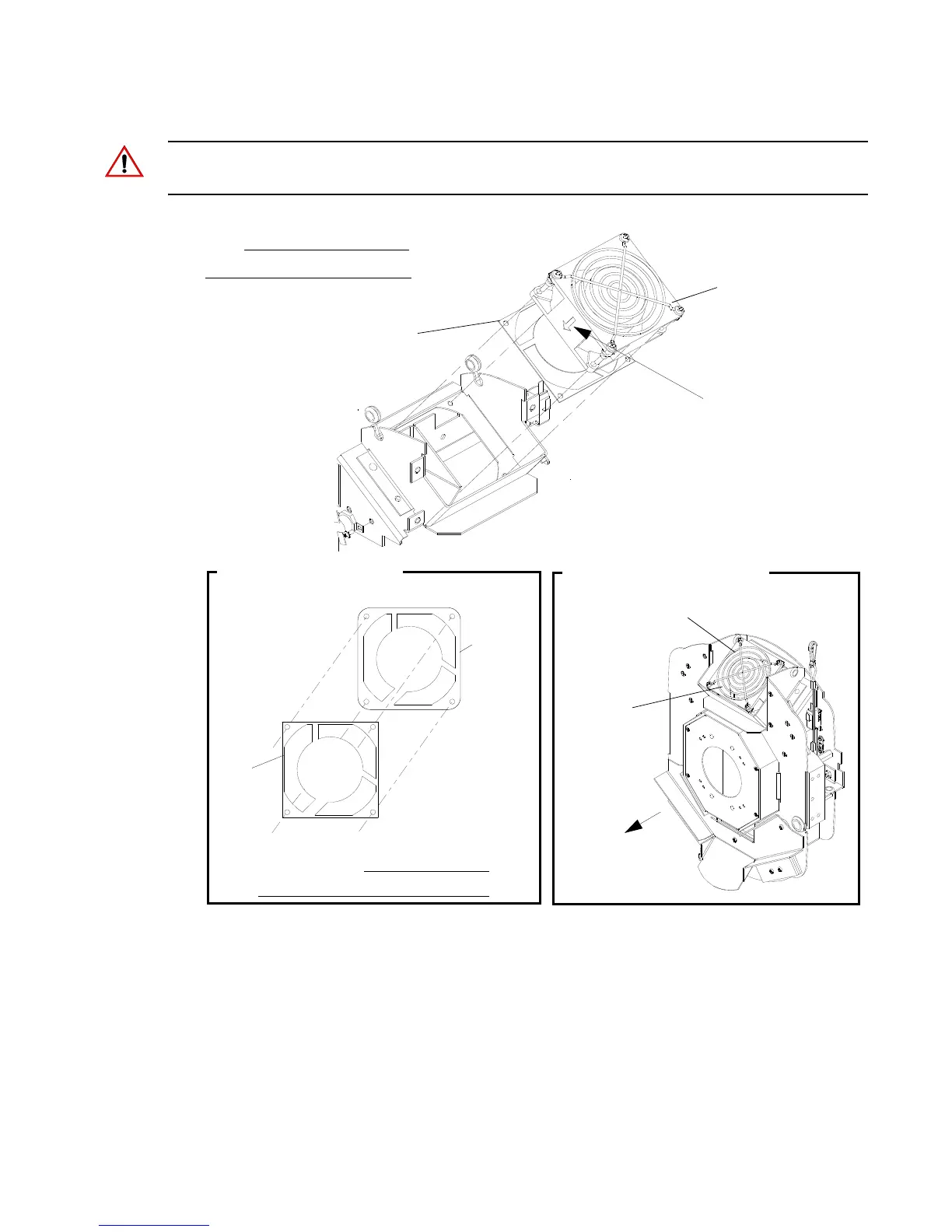

Figure 2-28: VL3000 80MM Fan Replacement
80MM Fan
Assembly
Shield Orientation:
80 mm Fan Shield Orientation
Shield must mimic and cover fan housing.
Fan
Fan
Assembly
Shield
Fan Shield
Note fan air flow indicator
80 mm Fan Assembly
80 mm Fan Assembly
Series 3000 Back End Assembly
Front of Luminaire
(see note above)
Note:
Other components removed for clarity.
