09/2007
4-7
Phaser 8860/8860MFP Service Manual
REP 1.0.8
Repairs and Adjustments
Initial Issue
REP 1.0.8 Scanner Hinges (8860MFP)
Parts List on PL 1.0
Removal
CAUTION
If possible, lock the Scanhead before removing the assembly. A utility for locking the Scanhead
is provided in the Service Tools Menu. Power down the printer with the DADF closed.
1. Remove the DADF (REP 1.0.15).
2. Disconnect the Scanner from the printer.
3. Place the Scanhead in the locked position for removal.

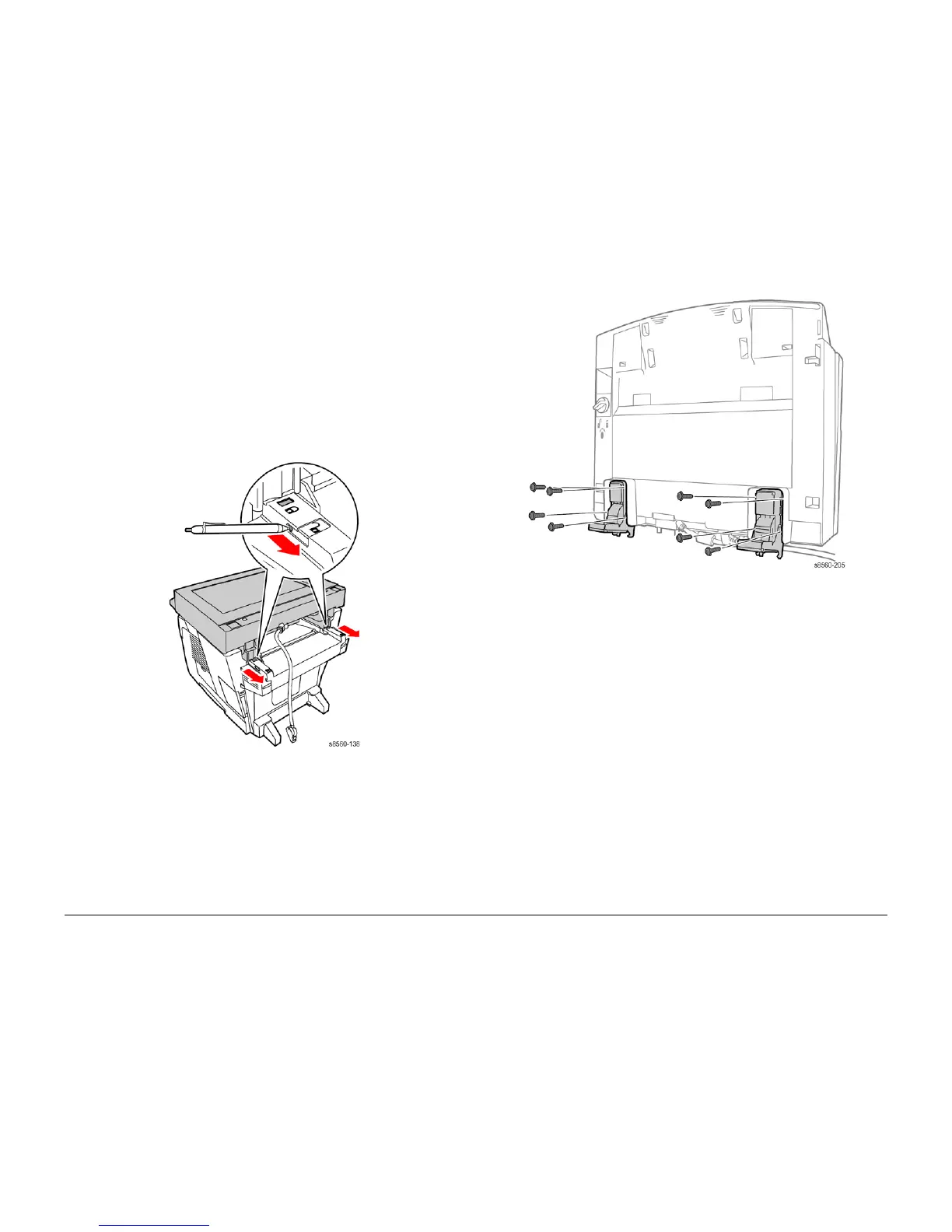

Figure 1 Unlocking the Scanner Hinges
4. Release the hinge latches using a screwdriver or pen.
5. Slide the Scanner towards the back, and then lift to remove it from the printer.
6. Remove the 4 (plastic T-20) screws that secure each hinge to the assembly.
Figure 2 Removing the Scanner Hinges
