5-6
Phaser 8860/8860MFP Service Manual
PL 2.0
Parts List
Initial Issue

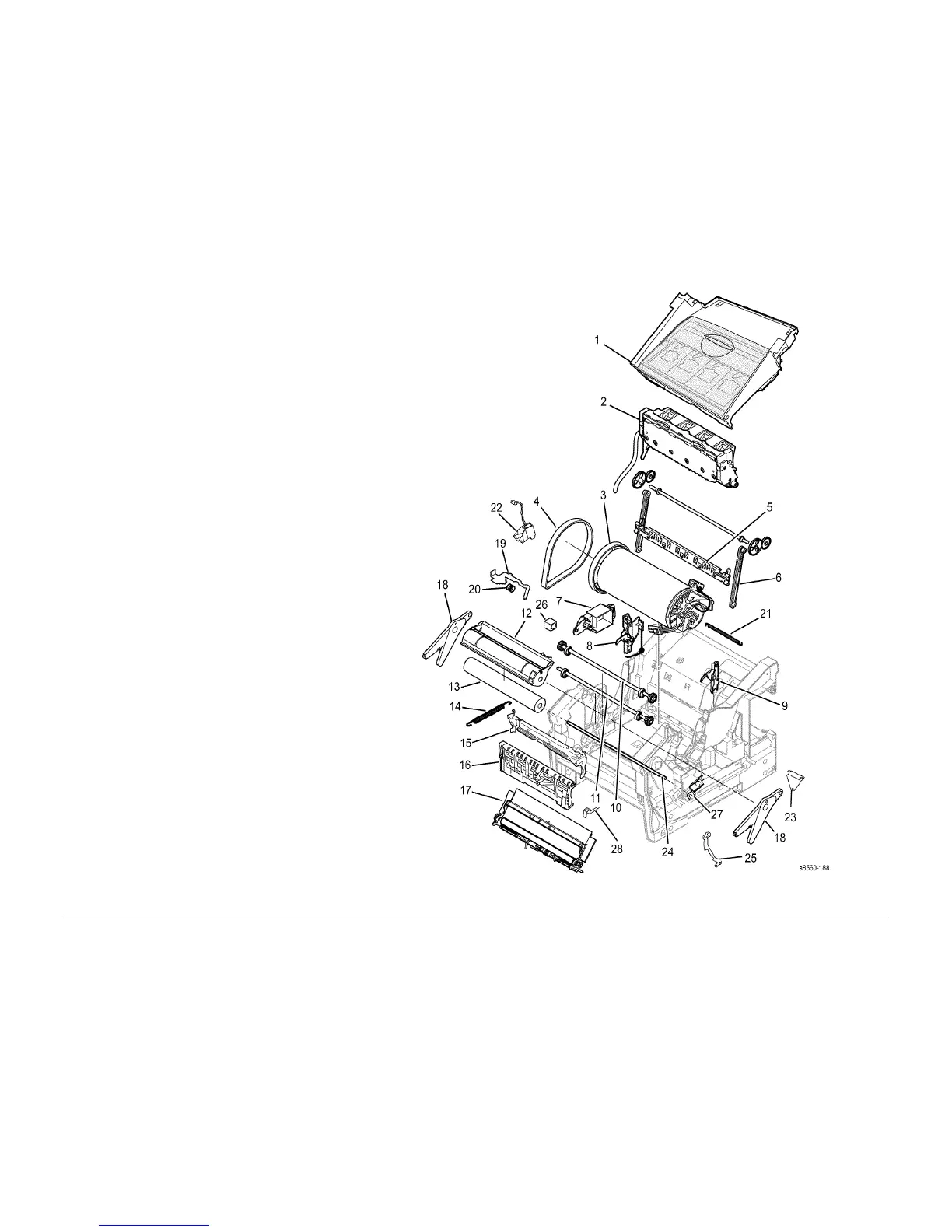

PL 2.0 Imaging
Item Part Description
1 848K18890 Ink Loader (8860MFP only)
– 848K24660 Ink Loader (metered 8860MFP)
– 848K18880 Ink Loader (8860 only)
– 848K24650 Ink Loader (metered 8860)
2 033K04490 Printhead
3 020K15090 Drum Assembly
4 023E30670 Y-Axis Belt
5 033E05290 Printhead Wiper Blade
6 023E31250 Wiper Drive Belt
7 094E02790 Purge Pressure Pump
8 120E29160 Left Printhead Restraint
9 120E29150 Right Printhead Restraint
10 020K14800 Drum Maintenance Camshaft
11 008K02260 Transfix Camshaft
12 041K06500 Stripper Carriage Assembly
13 022E33180 Transfix Roller
14 809E69920 Y-Axis Tension Spring
15 137E24130 Transfix Load Module
16 020K15100 Drum Maintenance Pivot Plate
17 126E02721 Preheater and Deskew Assembly
18 059K50011 Transfix Arm Kit (with pins)
19 019E75180 X-Axis Bias Spring Hook
20 809E69940 X-Axis Roll Adjuster Spring
21 809E69930 X-Axis Bias Spring
22 121K44430 Preheater Lift Solenoid
23 – X-Axis Bias Spring Retainer (Not
Spared)
24 – Transfix Roller Shaft (Not Spared)
25 – Drum Ground Plate (Not Spared)
26 – Roll Block (Not Spared)
27 – Transfix Roller Shaft Restraint (Not
Spared)
28 – Transfix Load Module Ground Strap
(Not Spared)
