09/2007
5-11
Phaser 8860/8860MFP Service Manual
PL 5.0
Parts List
Initial Issue

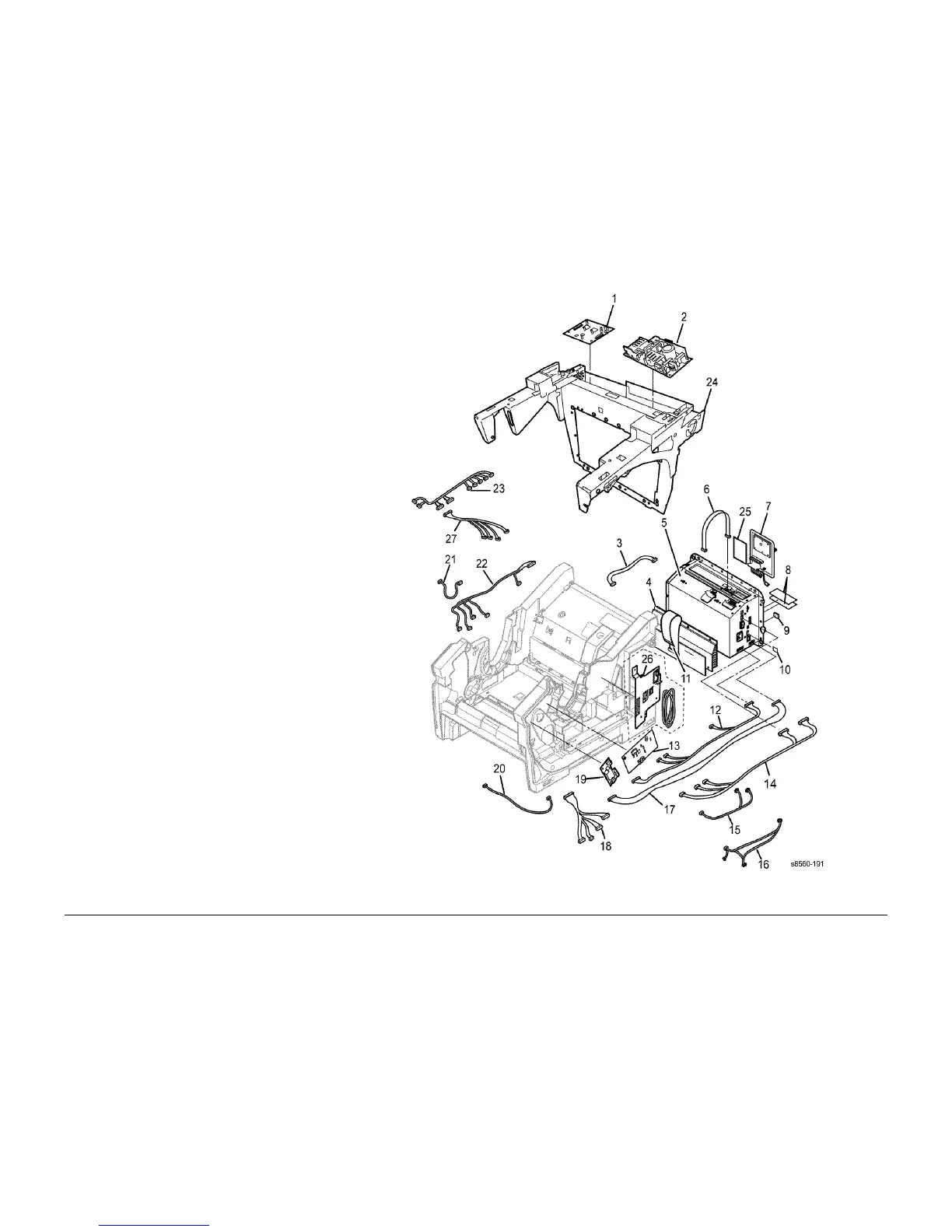

PL 5.0 8860MFP Electrical
Item Part Description
1 960K34960 Exit Module Control Board
2 105E23670 Scanner Power Supply
3 117E34870 Cable, Wave Amp Signal
4 960K46480 Wave Amplifier
5 084K36560 Electronics Module 8860MFP only
(w/o RAM, Configuration Card,
NVRAM)
6 117E29840 Cable, Printhead Interface
7 121K50440 Hard Drive Assembly
8 237E23640 256 MB SDRAM
– 237E23650 512 MB SDRAM
– 237E23890 128 MB SDRAM
9 237E23660 8-pin NVRAM
10 069E00570 Configuration Card
11 117E29790 Cable, ZIF, Wave Amp Drive
12 117E29820 Harness, Right Side
13 960K22331 I/O Board
14 117E29810 Cable, Right Combined
15 117E29650 Cable, Scanner PS to System PS
16 117E29660 Cable, Scanner PS it IP, Exit
Module and Fan
17 117E29830 Cable, I/O Board Power Control
18 117E28790 Cable, Right Umbilical
19 960K35170 Drum Heater Relay Board
20 117E28780 Cable, Front Door
21 117E34880 Cable., Y-Axis Motor Ground
22 117E29800 Harness, Left Side
23 117E29670 Cable, Exit Module Rear
24 801K33480 Back Frame
25 – Flash Disk
26 050K67600 Foreign Device Interface
27 117E29680 Cable, Exit Module Front
To Next Page
