Phaser 8860/8860MFP Service Manual
REP 2.0.15, REP 2.0.16
Repairs and Adjustments
Initial Issue
Replacement
Place a small amount of Rheolube 768 grease (P/N 070E00890) in the groove at the end of
each Transfix Load Arm before reattaching the Spring Hooks. Also, when replacing the
Grounding Springs on the Transfix Load Module, make sure the springs rest below the Transfix
Camshaft.
After replacing the Exit Module, perform ADJ 2.5.1, Wiper Alignment. Error code 7009.4x indi-
cates misalignment of the Wiper Assembly.
REP 2.0.16 Drum Maintenance Pivot Plate
Parts List on PL 2.0
Removal
NOTE: These steps describe Drum Maintenance Pivot Plate removal for the 8860MFP. On
8860 models, access the Drum Maintenance Pivot Plate by removing the Control Panel Cover
(REP 1.1.5). Afterwards, return to this procedure and begin at Step 3.
CAUTION
Use care not to damage the Drum while servicing the Pivot Plate. Feed a sheet of paper
between the Transfix Roller and Drum to protect the Drum surface during this procedure.
1. Remove the Scanner Assembly with attached DADF (REP 1.0.11).
2. Remove the Output Tray (REP 1.0.6).
3. Remove the Front Door (REP 1.0.1).
4. Remove the Right Side Cover (REP 1.0.21 or REP 1.1.10 for the 8860).
5. Remove the Left Side Cover (REP 1.0.7 or REP 1.1.9 for the 8860).
6. Remove the Drum Maintenance Kit.
7. Remove the Preheater (REP 2.0.17).
8. Remove the Drum Fan (REP 4.0.6) and grounding plate.
9. Remove the KL- Clip on the right end of the shaft and remove the shaft from the chassis
by pulling it out from the right side,

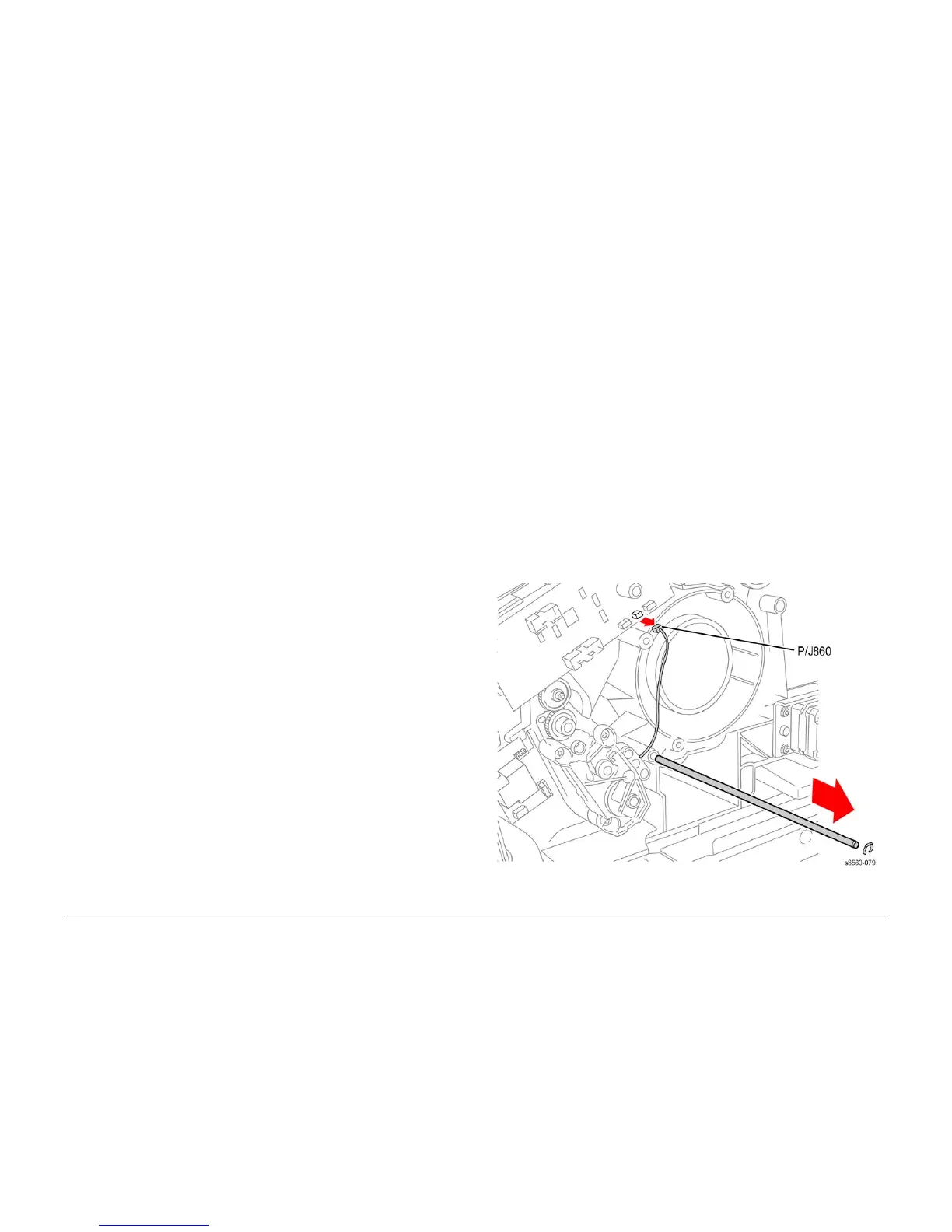

Figure 1 Removing the Pivot Plate Shaft
