09/2007
5-10
Phaser 8860/8860MFP Service Manual
PL 4.1
Parts List
Initial Issue

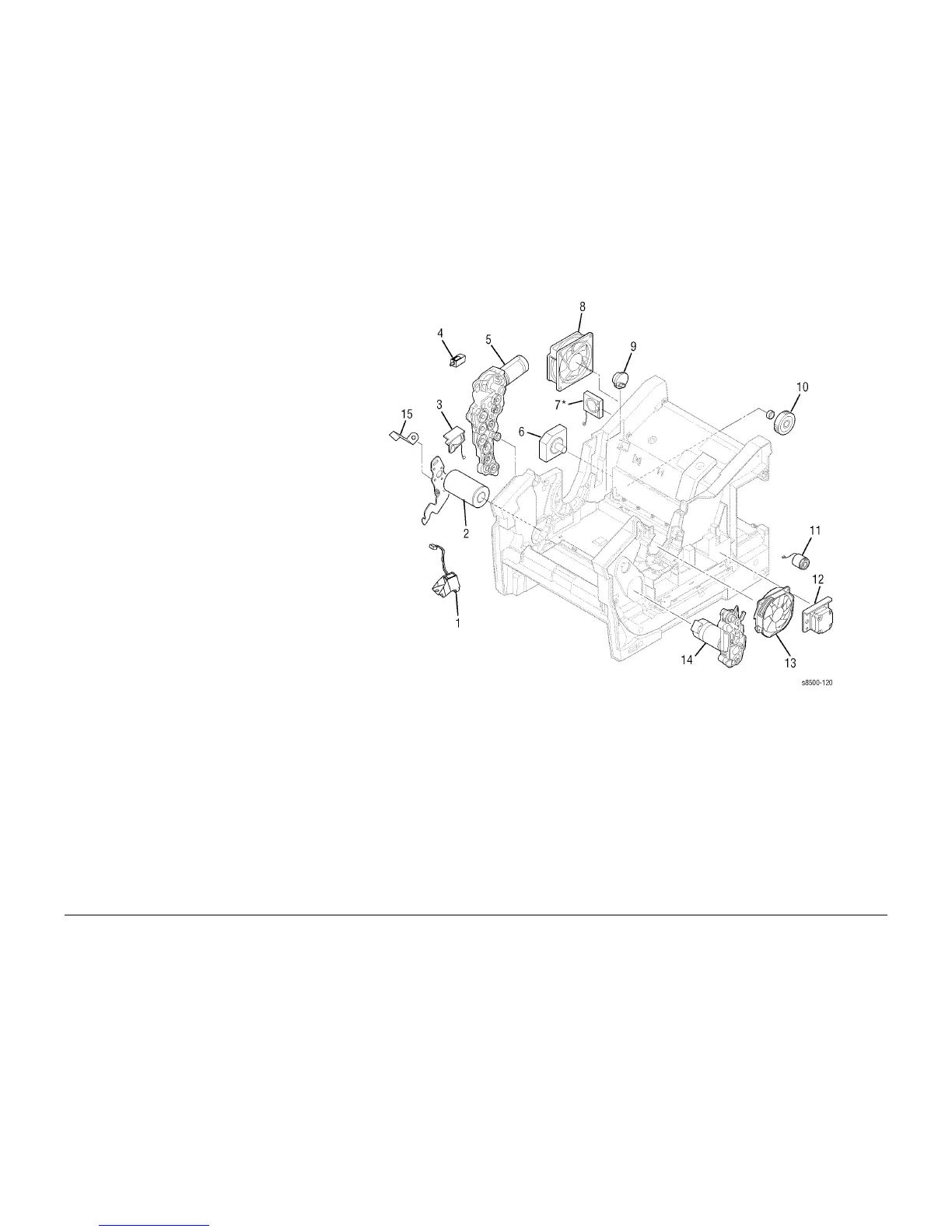

PL 4.1 8860 Drive
Item Part Description
1 121K44430 Preheater Lift Solenoid
2 127K56520 Y-Axis Motor Assembly
3 121E20120 Tray 1 Pick Solenoid
4 121K44480 Head Tilt Solenoid
5 807E23090 Media Drive with 2 Clutches
6 604K31810 Tray Lift Motor
7–
8 133K25010 Electronics Module Fan
9 807E16060 Head Tilt Gear
10 – Lift Motor Gear (P/O PL 4.1 Item 6)
11 033E05190 Head Maintenance Clutch
12 127K53580 X-Axis Motor
13 127E16010 Drum Fan
14 005K12780 Process Drive
15 650442700 Ground Clip
