4-46
Phaser 8860/8860MFP Service Manual
REP 3.0.6, REP 3.0.7
Initial Issue
Repairs and Adjustments
REP 3.0.6 Outer Duplex Guide
Parts List on PL 3.0
Removal
NOTE: These steps describe Outer Duplex Guide removal for the 8860MFP. On 8860 models,
access the Outer Duplex Guide by removing the Control Panel (REP 1.1.6). Afterwards, return
to this procedure and begin at Step 2.
1. Remove the Output Tray (REP 1.0.6).
2. Remove the Left Side Cover (REP 1.0.7 or REP 1.1.9 for the 8860).
3. Remove the Right Side Cover (REP 1.0.21 or REP 1.1.10 for the 8860).
4. Disconnect the Front Door P/J140 and Exit Door P/J411 Interlock Switches on the
8860MFP and remove the guide. For 8860 models, these connections are made on the
Control Panel (Figure 12).
5. Remove the 4 (plastic, T-20) screws that secure the Outer Duplex Guide.

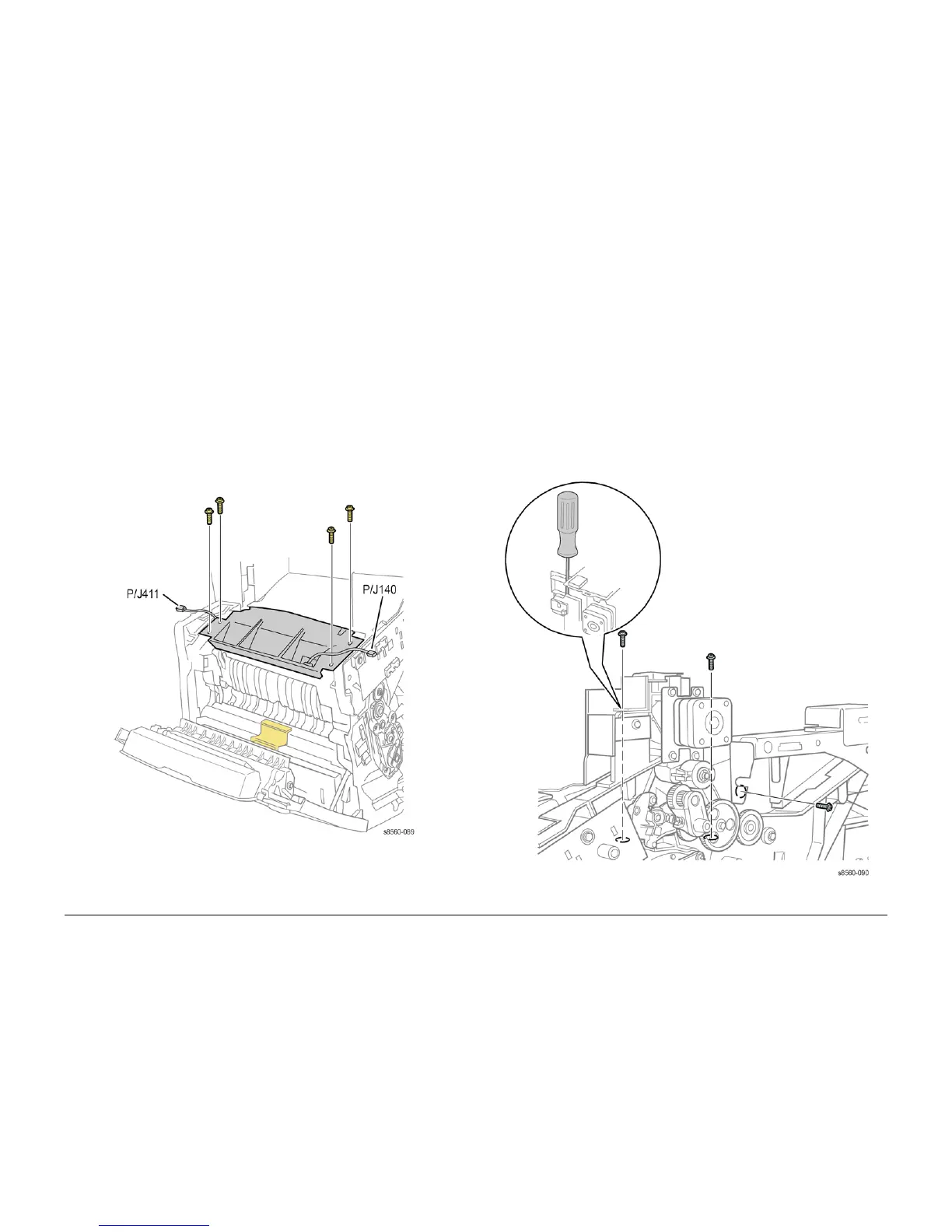

Figure 1 Removing the Outer Duplex Guide
REP 3.0.7 Exit Module (8860MFP)
Parts List on PL 3.0
Removal
1. Remove the Scanner Assembly with attached DADF (REP 1.0.11).
2. Remove the Output Tray (REP 1.0.6).
3. Remove the Left Side Cover (REP 1.0.7).
4. Remove the Right Side Cover (REP 1.0.21).
5. Remove the Ink Loader (REP 2.0.1).
6. Remove these components from the right side:
a. Remove the right front (plastic, T-20) screw.
b. Remove the KL-Clip, Pulley, and Belt from the Exit Elevator Roller to access and
remove the right rear screw located behind the large Wiper Assembly gear.
Figure 1 Exit Module Right Side Fasteners
