09/2007
4-70
Phaser 8860/8860MFP Service Manual
REP 5.0.26, REP 6.0.1
Initial Issue
Repairs and Adjustments
REP 5.0.26 FDI Board (8860MFP Option)
Parts List on PL 5.0
Removal
1. Remove the Scanner Assembly with attached DADF (REP 1.0.11).
2. Remove the Output Tray (REP 1.0.6).
3. Remove the Right Side Cover (REP 1.0.21).
4. Disconnect the harnesses from the FDI board.
5. Remove the 3 (2 metal, T-20, 1 plastic T-20) screws that secure the board to the chassis.

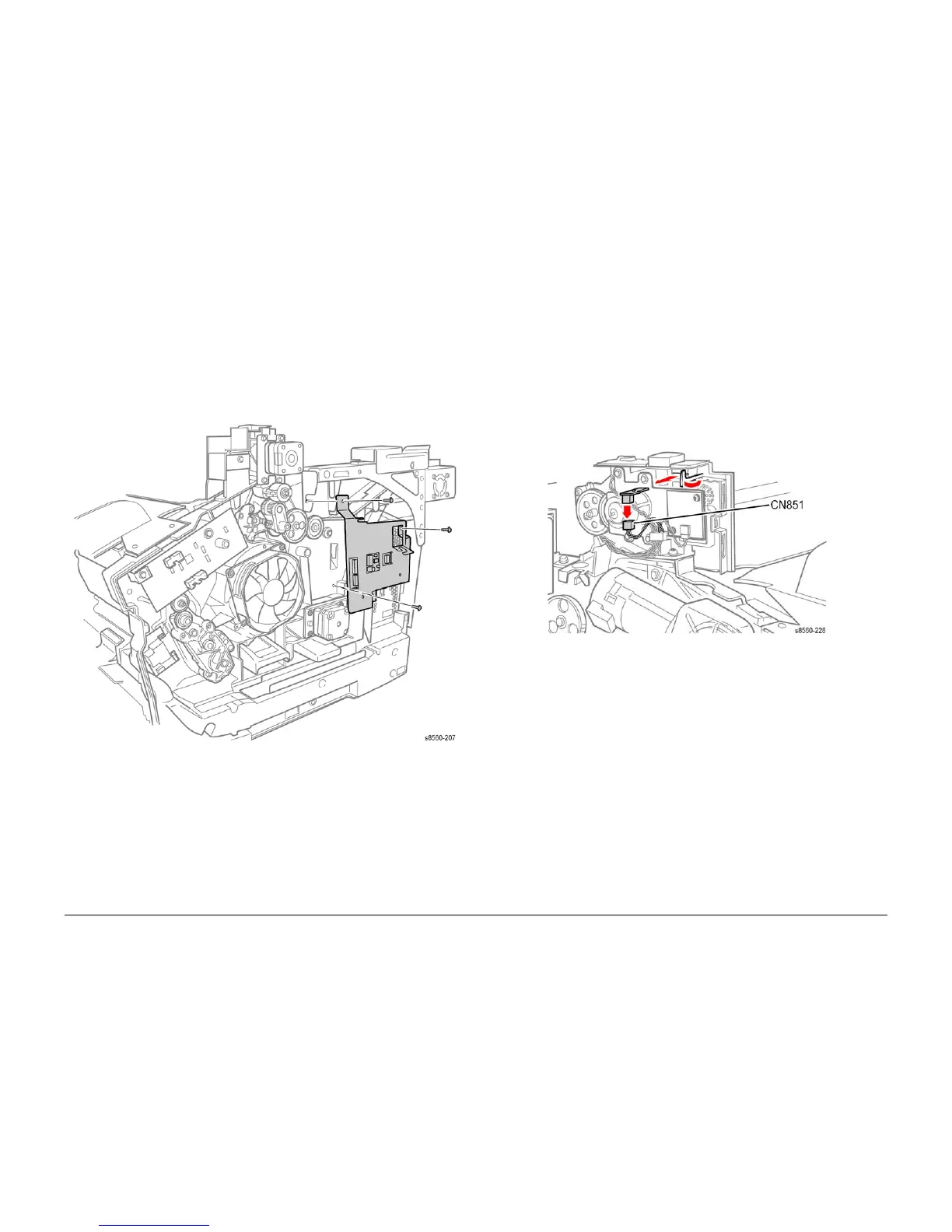

Figure 1 Removing the FDI Board
REP 6.0.1 Scanner Detect Sensor (8860MFP)
Parts List on PL 6.0
Removal
1. Remove the Scanner Assembly with attached DADF (REP 1.0.11).
2. Remove the Output Tray (REP 1.0.6).
3. Remove the Left Side Cover (REP 1.0.7).
4. Flex the retaining hook to the right to remove the sensor from the chassis.
5. Disconnect the sensor (CN851) from the harness.
Figure 1 Removing the Scanner Detect Sensor
