09/2007
5-7
Phaser 8860/8860MFP Service Manual
PL 3.0
Parts List
Initial Issue

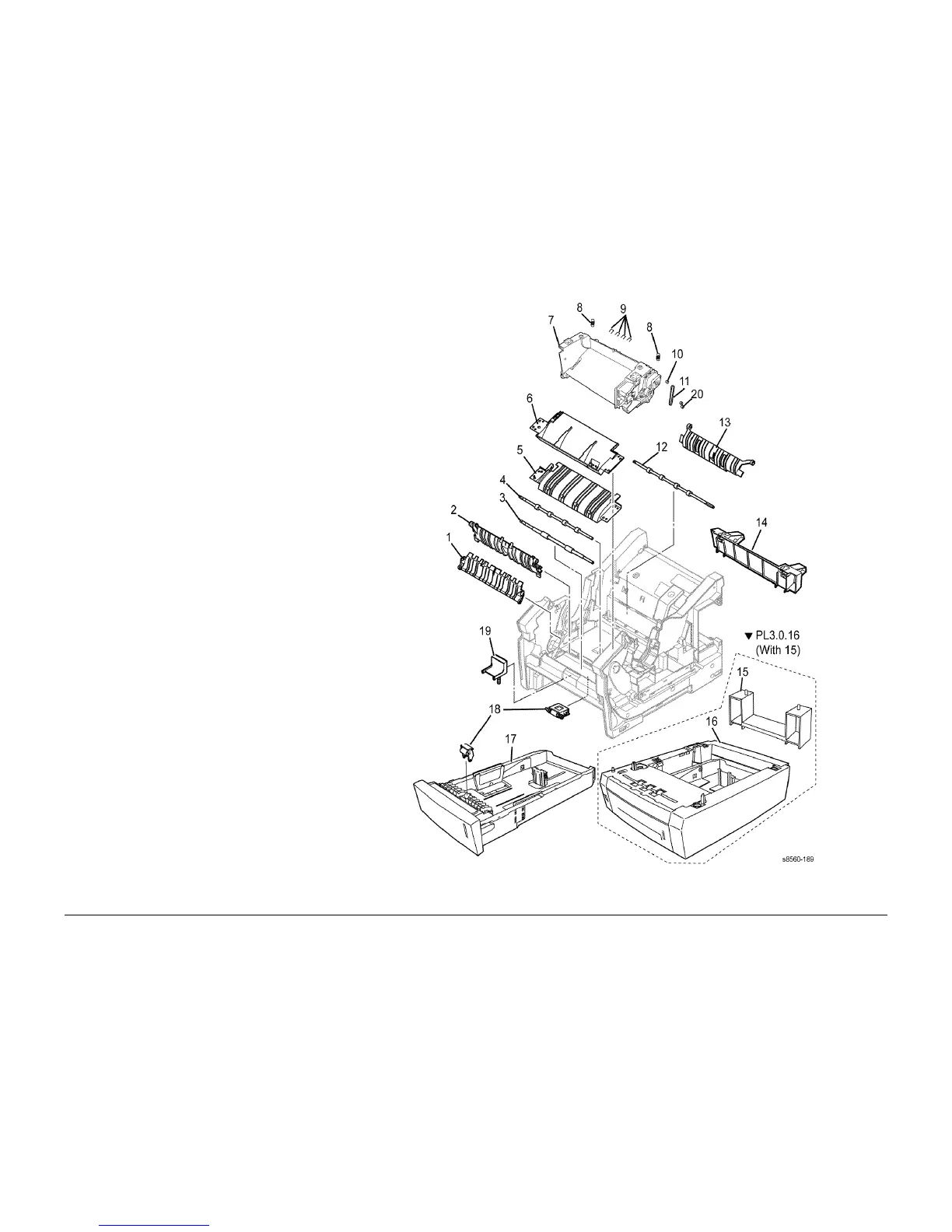

PL 3.0 8860MFP Paper Path
Item Part Description
1 032E29480 Inner Simplex Guide
2 038K16870 Lower Inner Duplex Guide
3 022E32420 Take Away Roller
4 022E32410 Duplex Roller
5 032K04630 Upper Duplex Guide with Solenoid
6 032K04640 Outer Duplex Guide with Switches
7 133K27680 Exit Module Assembly (with 10, 11,
20)
8 809E78710 Spring Carriage
9 809E78700 Spring, Carriage Roller
10 – Pulley, Exit Module (P/O PL 3.0
Item 7)
11 – Belt, Exit Module (P/O PL 3.0 Item
7)
12 059E05610 Exit Roller
13 038K17800 Lower Exit Guide Assembly
14 674E02820 Stabilizer, Printer
15 674E00760 525-Sheet Feeder Stabilizer
16 059K58610 525-Sheet Feeder, Tray, Stabilizer
(P/O PL 3.0 Item 15)
17 050E23570 525-Sheet Tray, Adjustable to Legal
18 604K42200 Pick Assembly and Retard Roller
19 604K31140 Separator Pad Kit
20 – Belt Tensioner (P/O PL 3.0 Item 7)
To Next Page
