09/2007
4-44
Phaser 8860/8860MFP Service Manual
REP 3.0.3 , REP 3.0.4
Initial Issue
Repairs and Adjustments
NOTE: Pressure from the Idler Rollers may make it difficult to slide the Take Away Roller
shaft to the right during removal.

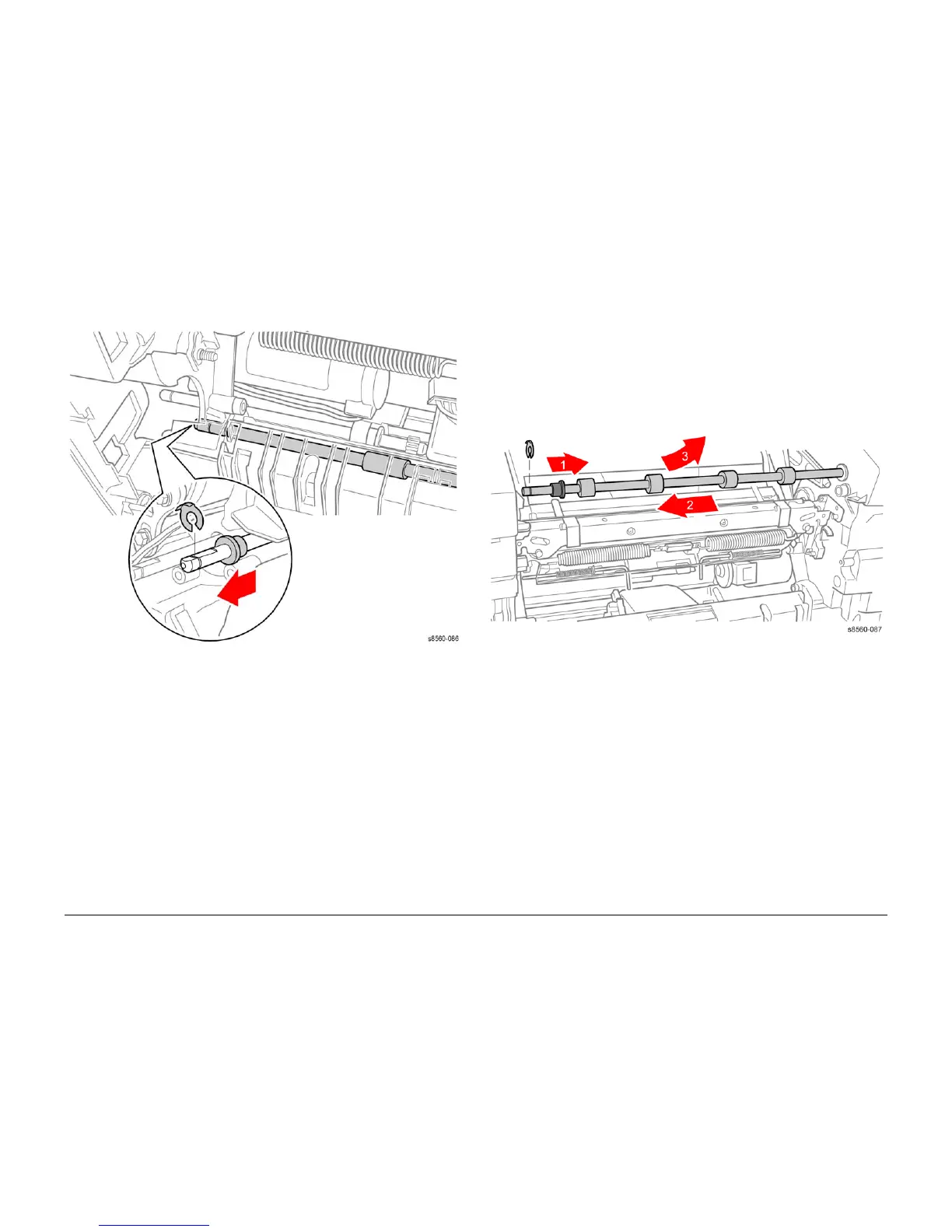

Figure 1 Removing the Take Away Roller
REP 3.0.4 Duplex Roller
Parts List on PL 3.0
Removal
1. Open the Front Door.
2. Remove the Outer Duplex Guide (REP 3.0.6).
3. Remove the Lower Inner Duplex Guide (REP 3.0.2).
4. Remove the KL-Clip on the left end of the roller shaft, move the bearing to the right, slide
the shaft to the left to release the right end from the chassis, and lift the right end upward
to clear the top of the frame at the right.
Figure 1 Removing the Duplex Roller
