4-76
Phaser 8860/8860MFP Service Manual
REP 6.0.11, ADJ 1.15.1
Initial Issue
Repairs and Adjustments

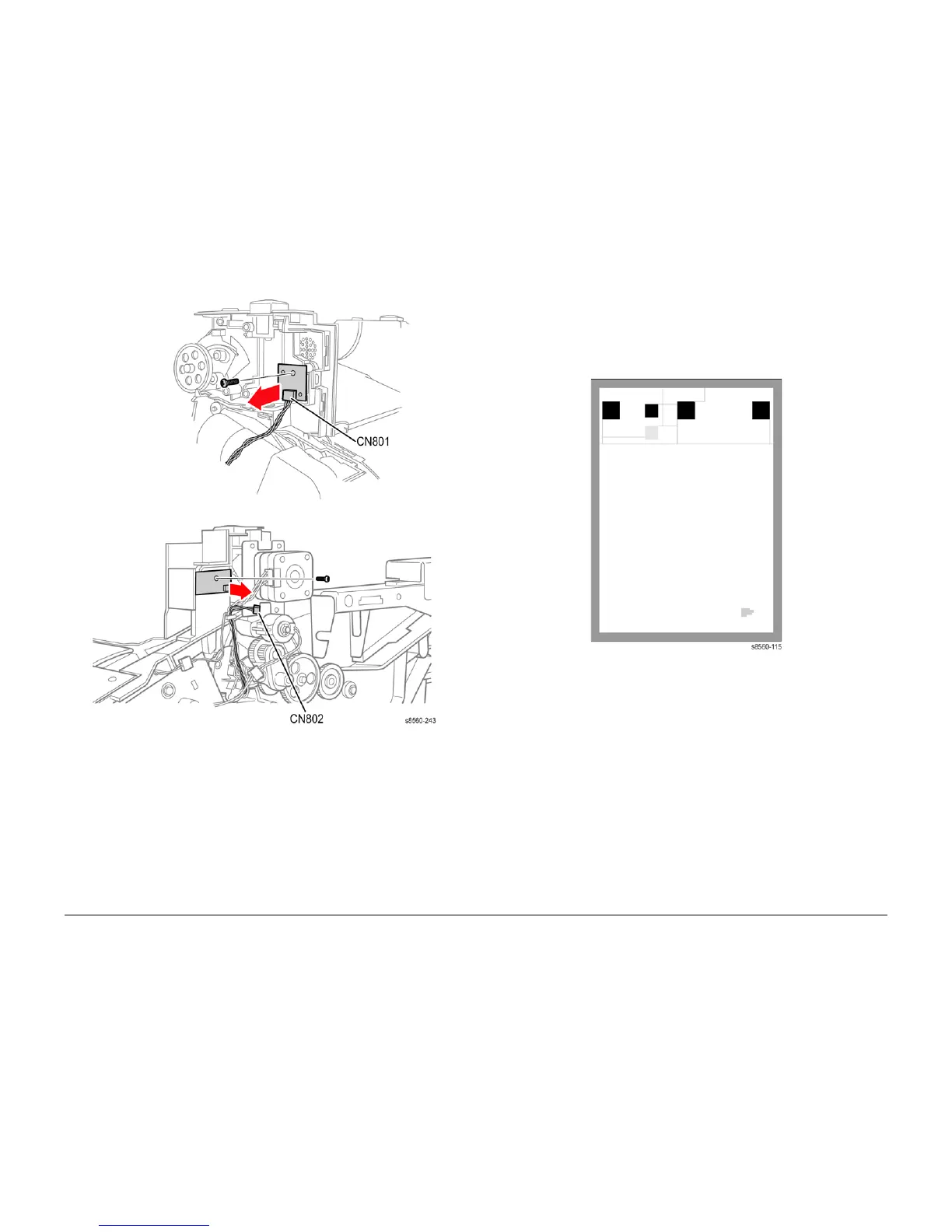

Figure 1 Removing the Output Tray Full Sensor
ADJ 1.15.1 DADF to Scanner Calibration (8860MFP)
Purpose
Use this adjustment procedure to calibrate a newly installed DADF to the Scanner Assembly.
This procedure requires the Scanner Calibration Page shown in Figure 1, Use the calibration
page that came with the replacement part
Figure 1 Scanner Calibration Page P/N 109K02110
NOTE: Perform this calibration procedure when replacing the Scanner Assembly or DADF.
Start this procedure with the scanner having just made a duplex copy, this ensures the lamps
are up to temperature. If the lamps are cold, the calibration procedure fails due to a time-out.
Manual calibration of the platen to DADF scanheads adjust grey level and margins. It matches
the front of the page to the back of the page on a duplex scan/copy.
Adjustment
1. On the control panel, press the System Setup button.
2. Select the Information menu
3. Select Troubleshooting, and then press the Enter button.
4. Select Calibrate Scanner, and then press the Enter button.
5. Place the Scanner Calibration page on the platen with the top edge to the left as shown in
Figure 2.
