Phaser 8860/8860MFP Service Manual
PL 6.0
Parts List
Initial Issue

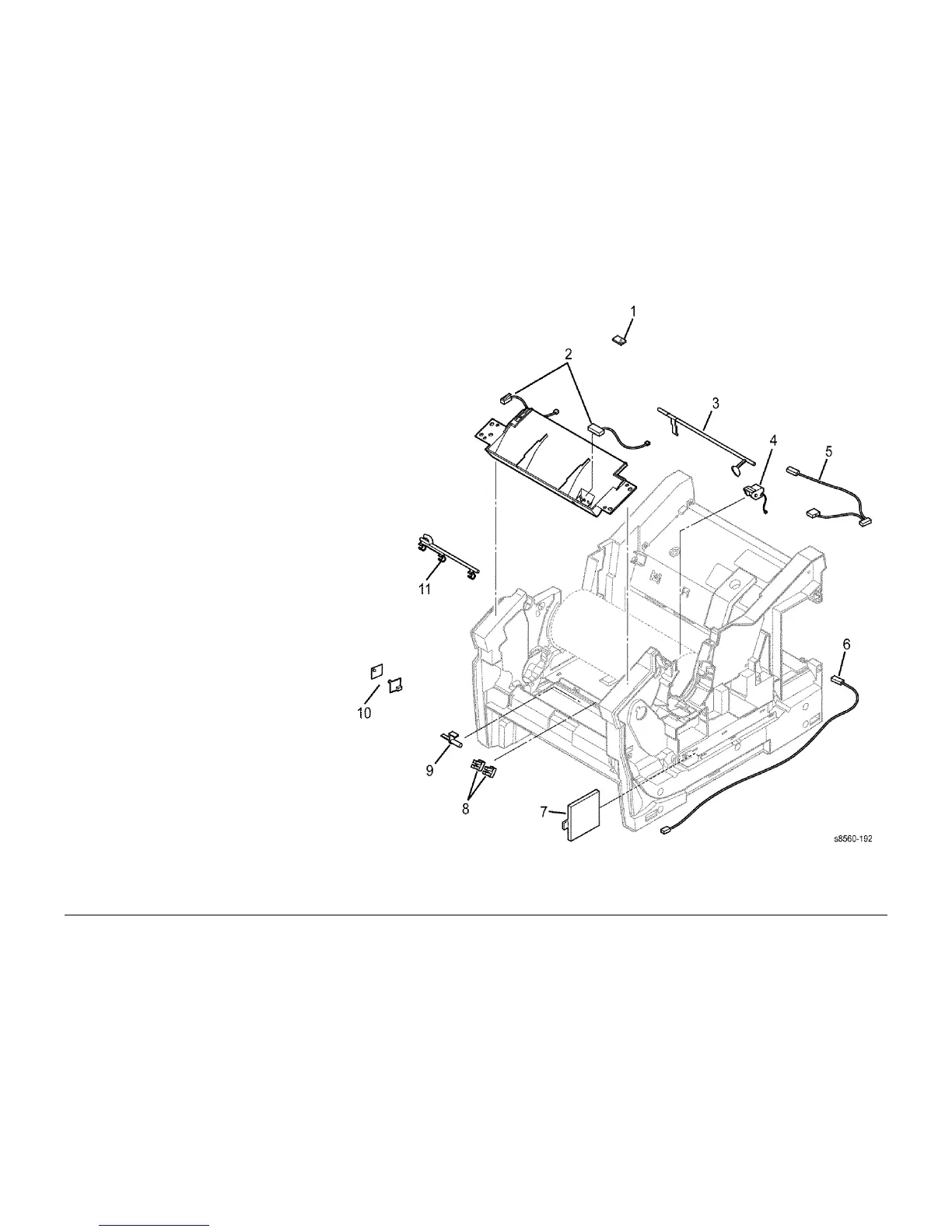

PL 6.0 Sensors and Actuators
Item Part Description
1 130E12570 IIT Cover Sensor (Scanner Detect
8860MFP only)
2 110E20390 Front Door Interlock Switch
3 137E24280 Engine Exit Flag
4 130K75210 Drum Temperature Sensor
5 130K75220 Exit Module Sensor Assembly
6 130E12620 Waste Tray Sensor
7 130K75230 Paper Size Switch
8 119640580 No Paper or Paper Height Sensor
9 130E11550 Paper Present Flag
10 130E12600 Output Tray Full Sensor (8860MFP
only)
11 137E24290 Exit Module Flag (8860MFP only)
