09/2007
5-5
Phaser 8860/8860MFP Service Manual
PL 1.1
Parts List
Initial Issue

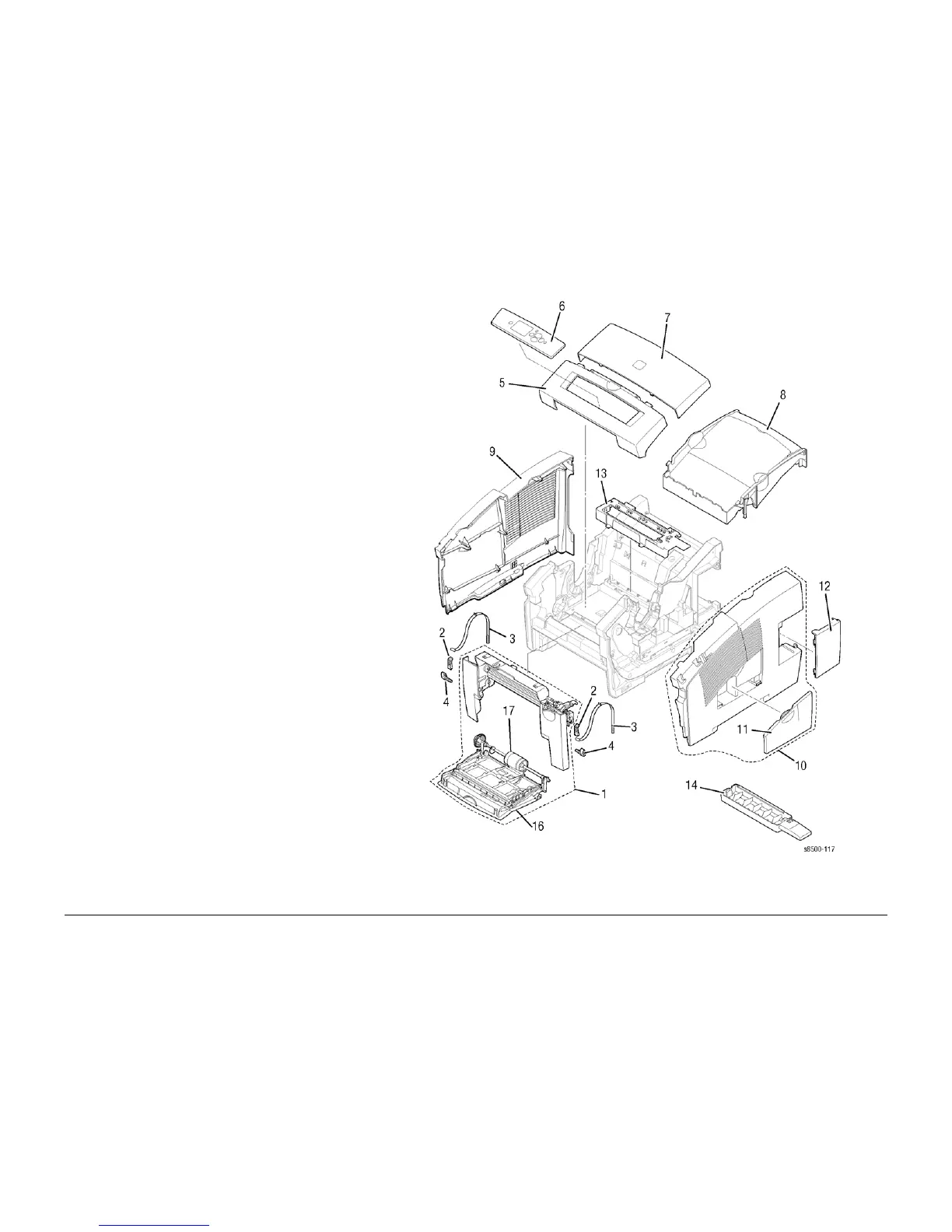

PL 1.1 8860 Covers
Item Part Description
1 848K06520 Front Door / Tray 1 Assembly
2 120E29140 Front Door Stay Retainer
3 009K02390 Front Door Stay with Spring
4 029E49330 Hinge Pins, Front Door
5 802E93850 Control Panel Cover
6 802K93650 Control Panel with Bezel
7 848K12760 Exit Cover with Badge
8–
9 802K93660 Left Side Cover
10 802K93570 Right Side Cover with Doors
11 802E93870 Drum Maintenance Door (P/O PL
1.1 Item 10)
12 802E93860 I/O Access Door
13 802E93880 Waste Tray Cover
14 109R00736 Waste Tray
15 113R00736 Maintenance Kit, Standard
– 604K53810 Maintenance Kit, Extended
16 050K68070 MPT Tray Arm (P/O PL 1.1 Item 1)
17 059K63590 MPT Pick Roller (P/O PL 1.1 Item
1)
To Next Page
