Phaser 8860/8860MFP Service Manual
8860 Control Panel Layout
Initial Issue
Introduction
8860 Control Panel Layout

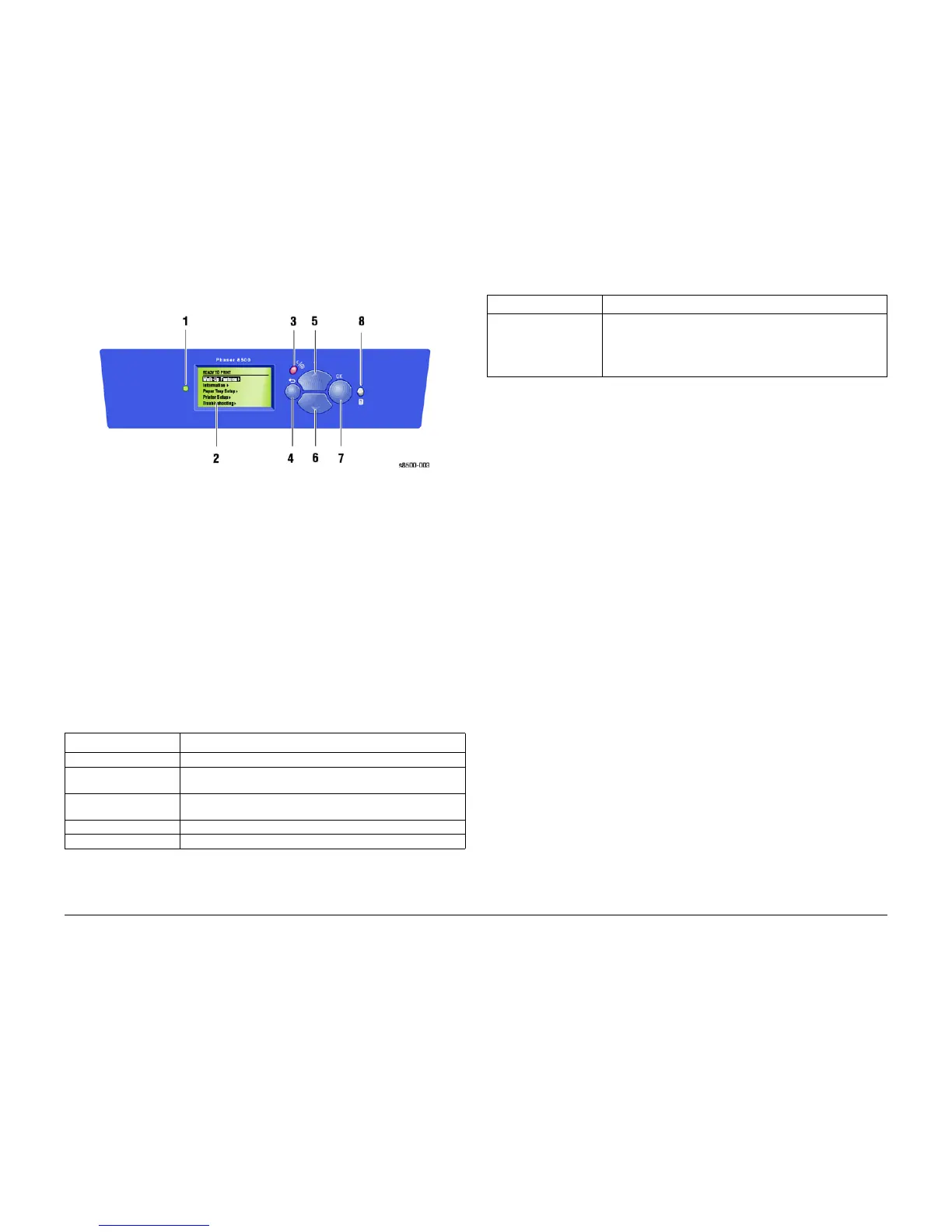

Figure 1 8860 Control Panel
1. Status LED.
• Green is Ready to Print
• Yellow is Warning condition, printer continues to print
• Red is Startup sequence or error condition
• Blinking is printer is busy or warming up
2. Display
3. Cancel button cancels the current print job
4. Back button returns to the previous menu item
5. Up Arrow button scrolls upward through the menus
6. Down Arrow button scrolls downward through the menus
7. OK button accepts the selected setting
8. Help (?) button provides additional information, such as status, error messages, and
maintenance information
Control Panel Shortcuts
Table 1 Short Cuts
Mode or Menu Press These Buttons
Service Tools Menu From any menu, press and hold the Up Arrow, then press OK.
Hidden Service Menu From the Service Tools menu, press and hold the Up Arrow, and
then press the Down Arrow.
Service Diagnostics When the Display turns black, press and hold Back and Help until
“Beginning Service Mode” appears.
Control Panel language Press and hold the Cancel button, then press the Help button.
Bypass protected menus Press and hold the Cancel button, then press the Back button..
FTTR (Fast Time To
Ready)
Printer goes to the ready state without waiting for temperatures to
reach operating values. On power-up, when the Xerox splash
screen displays, press and release the Up Arrow button, then
press the Down Arrow button. If the printer detects ink on the
drum, the display indicates a warming-up status.
Table 1 Short Cuts
Mode or Menu Press These Buttons
To Next Page
