Phaser 8860/8860MFP Service Manual
PL 4.0
Parts List
Initial Issue

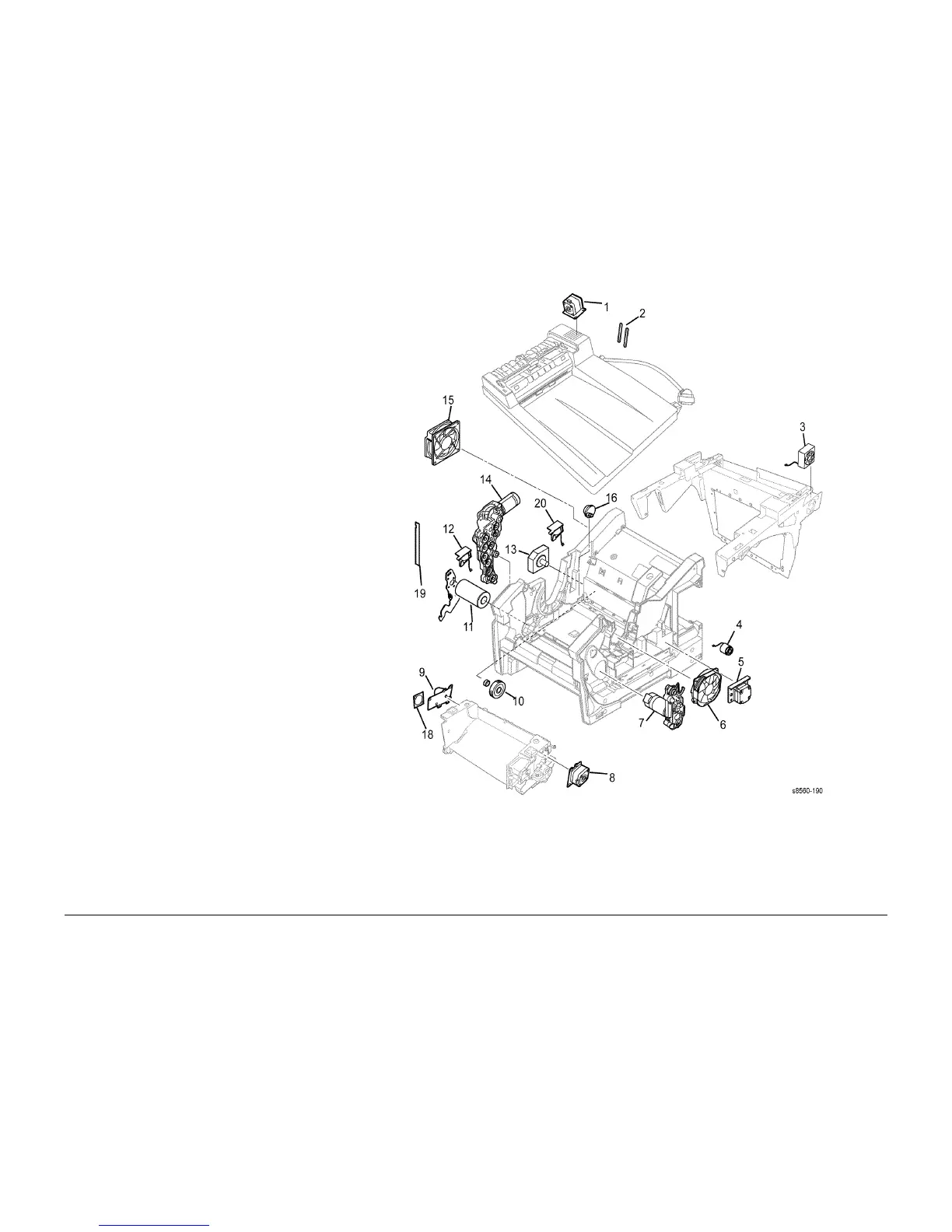

PL 4.0 8860MFP Drive
Item Part Description
1 – ASM, Motor (Not Spared) (DADF)
2 – DADF Belt Kit (Not Spared)
3 127E15910 Scanner Power Supply Fan
4 033E05190 Head Maintenance Clutch
5 127K53580 X-Axis Motor
6 127E16010 Drum Fan
7 005K12780 Process Drive
8 127K56300 Exit Motor
9 059K58470 Elevator Motor Assembly
10 – Lift Motor Gear (Not Spared)
11 127K56520 Y-Axis Motor Assembly
12 121E20120 Tray 1 Pick Solenoid
13 604K31810 Tray Lift Motor
14 807E23090 Media Drive with 2 Clutches
15 133K25010 Electronics Module Fan
16 007K14590 Head Tilt Gear
18 130E12580 FAX Speaker
19 – Head Tilt Gear Spring (Not Spared)
20 121K44480 Head Tilt Solenoid
To Next Page
