Phaser 8860/8860MFP Service Manual
PL 5.1
Parts List
Initial Issue

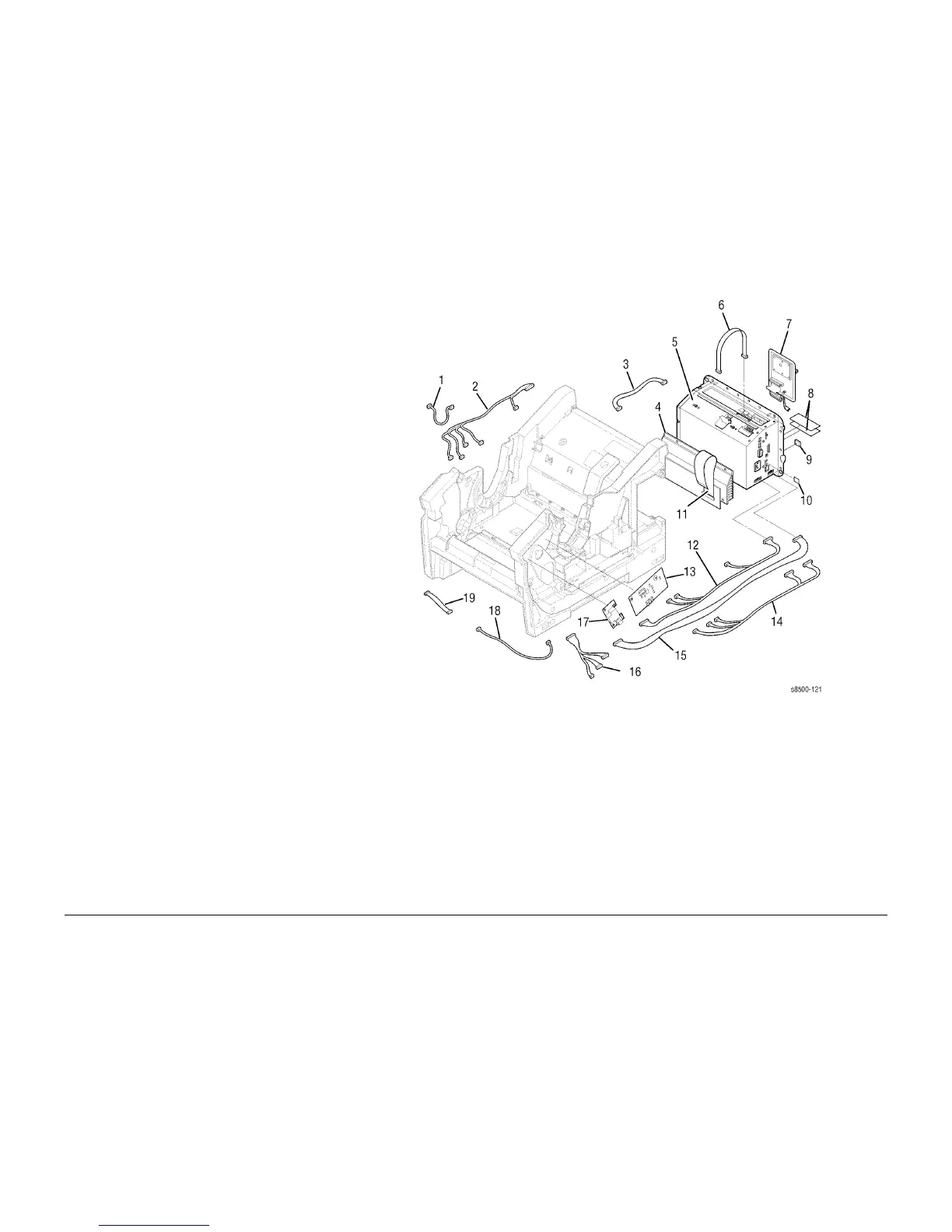

PL 5.1 8860 Electrical
Item Part Description
1 117E34880 Cable., Y-Axis Motor Ground
2 117E29800 Harness, Left Side
3 117E34870 Cable, Wave Amp Signal
4 960K21181 Wave Amplifier
5
084K36550 Electronics Module 8860 only (w/o
RAM, Configuration Card, NVRAM)
6 117E29840 Cable, Printhead Interface
7 121K45340 Hard Drive
8 237E23640 256 MB SDRAM
– 237E23650 512 MB SDRAM
– 237E23890 128 MB SDRAM
9 237E23660 8-pin NVRAM
10 069E00570 Configuration Card
11 117E29790 Cable, Wave Amp Drive
12 117E29820 Harness, Right Side
13 960K22331 I/O Board
14 117E29810 Cable, Right Combined
15 117E29830 Cable, I/O Board Power Control
16 117E28790 Cable, Right Umbilical
17 960K35170 Drum Heater Relay Board
18 117E28780 Cable, Front Door
19 117E35230 Cable,Control Panel (8860 only)
