Phaser 8860/8860MFP Service Manual
Parts of the 8860MFP
Introduction
Initial Issue

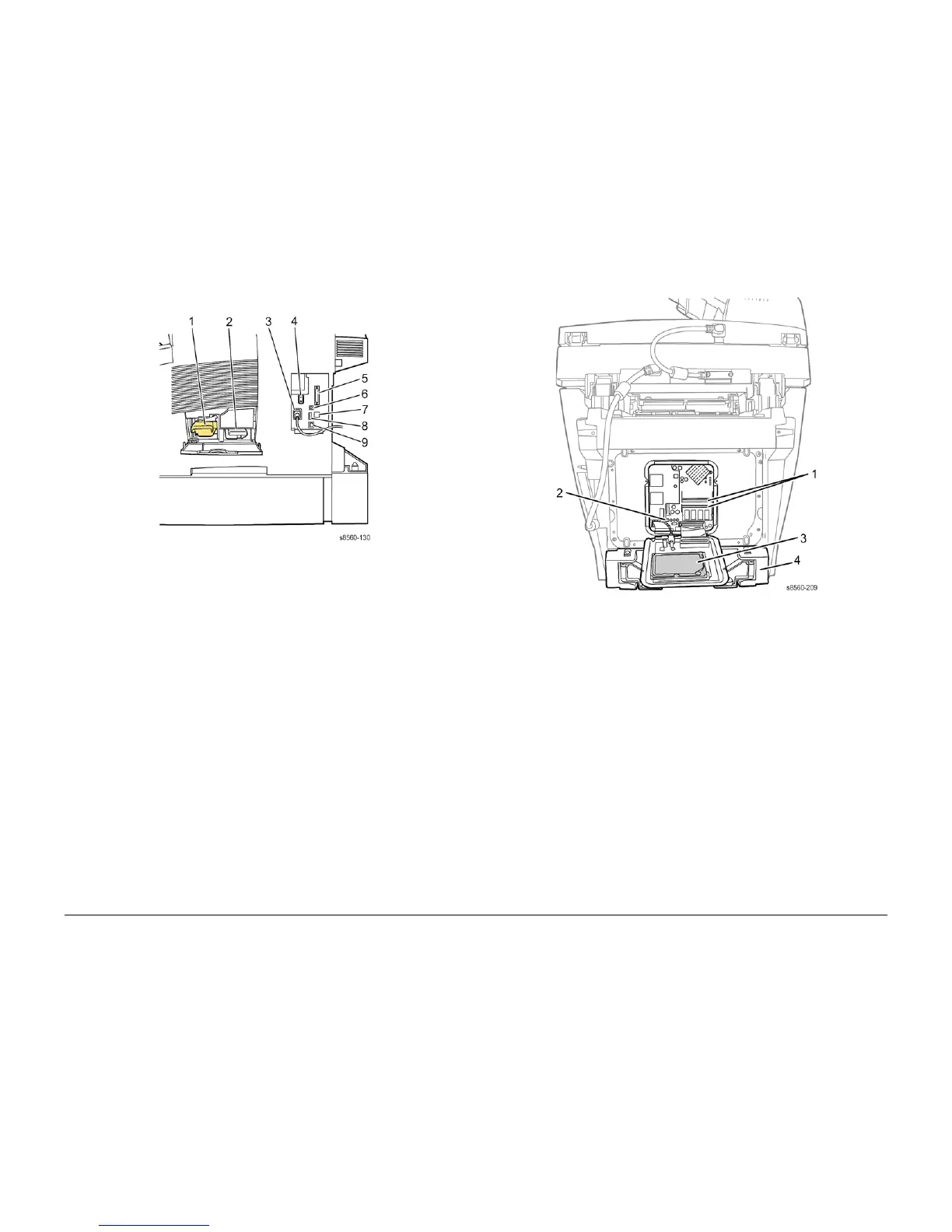

Side View with Interface Connections
Figure 3 Side View with Interface Connections
1. Drum Maintenance Kit
2. Waste Tray
3. AC Power Cord Connection
4. Power Switch
5. Scanner Cable Connection
6. USB Connection
7. Ethernet Connection
8. Configuration Card
9. RJ-11 Fax Modem Connection
Back View - Electronics Module
The system’s main electronics and power supply are enclosed in a metal case called the Elec-
tronics Module. The Electronics Module’s rear panel allows access to the RAM, and NVRAM
chips. The optional Hard Drive mounts on the rear panel.
NOTE: When replacing the electronics module, transfer these components to the new module.
•RAM
• Configuration Card
• NVRAM Device
• Hard Drive or Flash Disk
Figure 4 Back View
1. RAM Connectors
2. NVRAM Device
3. Hard Drive
4. Printer Stabilizer (8860MFP only)
