Starter motor
5-39

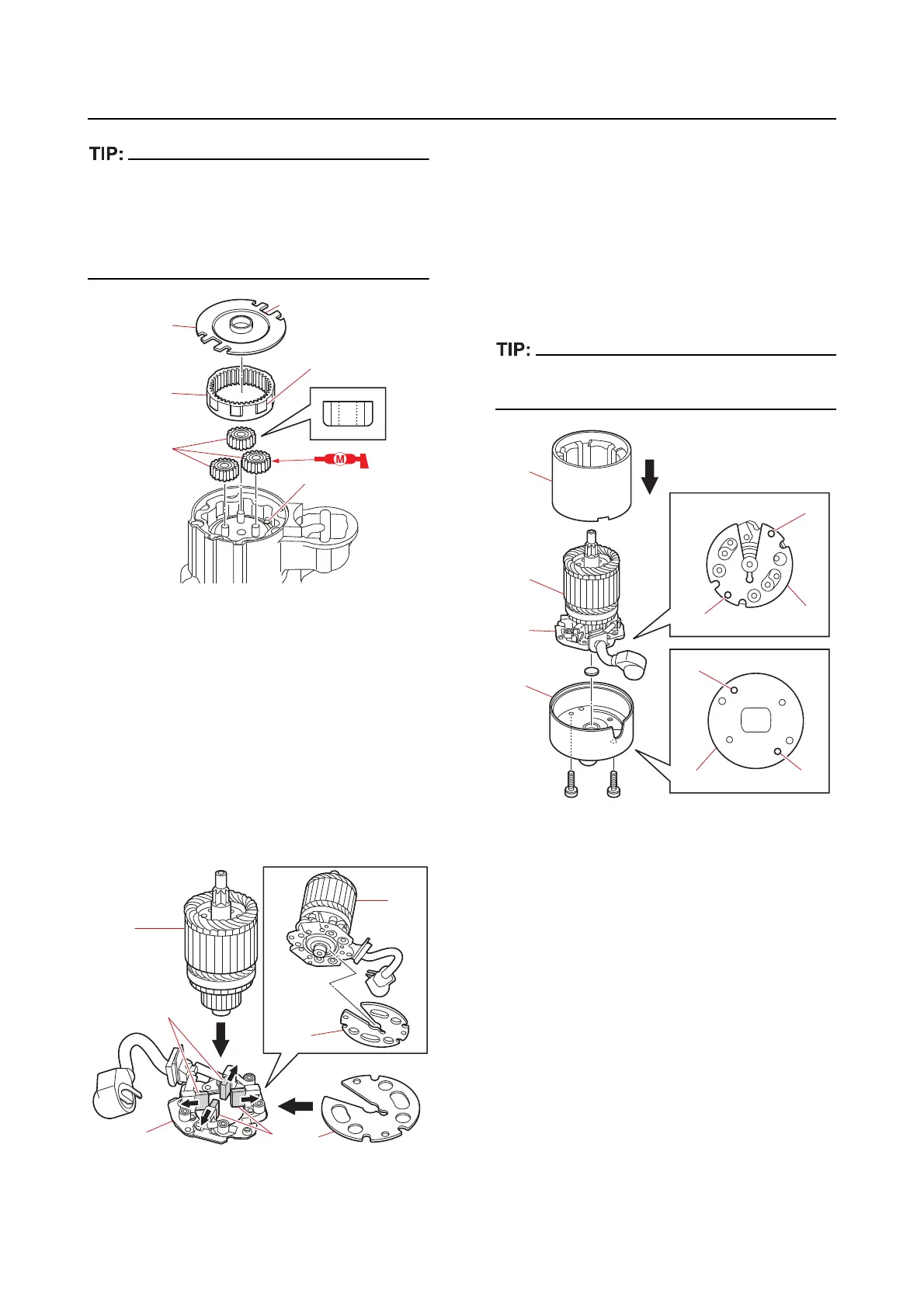

• Be careful not to align the protrusions “a” on
the outer gear “1” with the holes “b” in the
bracket.
• Align the notches “c” in the plate “3” with the
holes “b” in the bracket.
5. Install:
• Brush spring (to
the brush holder)
• Brush assembly (to
the brush holder)
6. Install:
• Armature
• Pla
te
a. Push the brushes “1” into the holders,
and
then install the armature “2” to the
brush holder assembly “3”.
b. Install the plate “4”.
7. Install:
• Brush holder assembly
• Bracke
t
• Bracke
t screw
• Stator
a. Install the armature “1” along with the
brush holder
assembly “2” to the
bracket “3”, and then install the stator
“4”.
Align the holes “a” and “b” in the plate “5” with
the holes “c” and “d” in the bracket “3”.
2
3
1
c
a
b
4
4
1
1
2
2
3
5
4
2
3
1
d
b
a
3
c
