Yamaha F75F - Checking the Propeller Shaft; Disassembling the Propeller Shaft Housing Assembly

Propeller shaft housing
8-7

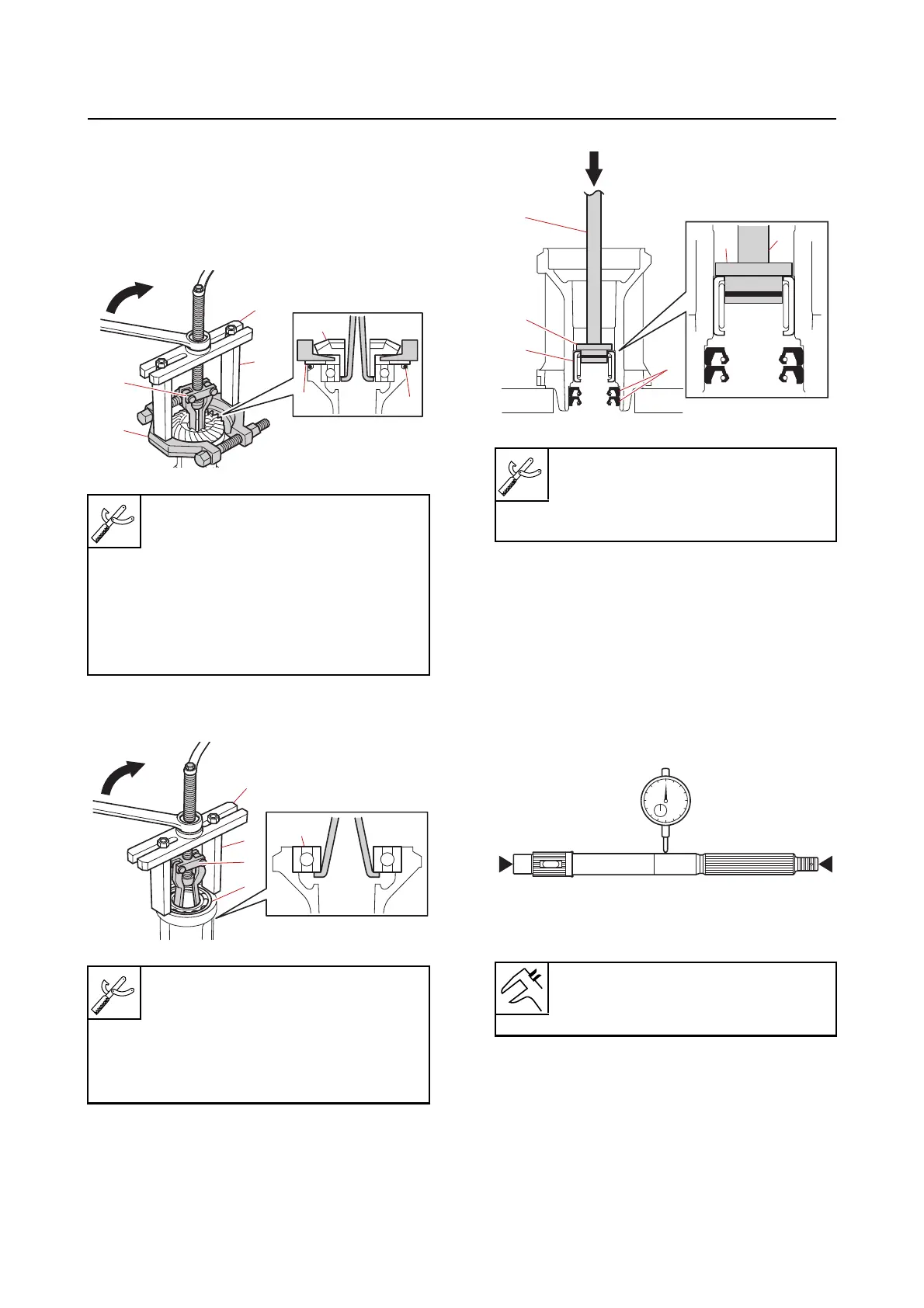

Disassembling the propeller shaft
housing assembly
1. Remove:
• Reverse gear
“1”
• Thr
ust washer “2”
• O-ring “3”
2. Remove:
• Ball bearing “1”
3. Remove:
• Oil seal “1”
• Needle
bearing “2”
Checking the propeller shaft
1. Check:
• Propeller shaft
Damaged/worn  Replace.
2. Measure:
• Propeller shaft runout
Above specification  Replace.
Stopper guide plate “4”
90890-06501
Bearing separator “5”
90890-06534
Bearing puller assembly “6”
90890-06535
Stopper guide stand “7”
90890-06538
Stopper guide plate “2”
90890-06501
Stopper guide stand “3”
90890-06538
Bearing puller assembly “4”
90890-06535
5
6
4
7
1
2
3
2
3
4
1
1
Driver rod L3 “3”
90890-06652
Needle bearing attachment “4”
90890-06653
Propeller shaft
Runout
0.02 mm (0.0008 in)
1
2
4
4
3
3
