Yamaha F75F - Vapor Separator and High-Pressure Fuel Pump

Vapor separator and high-pressure fuel pump
6-15

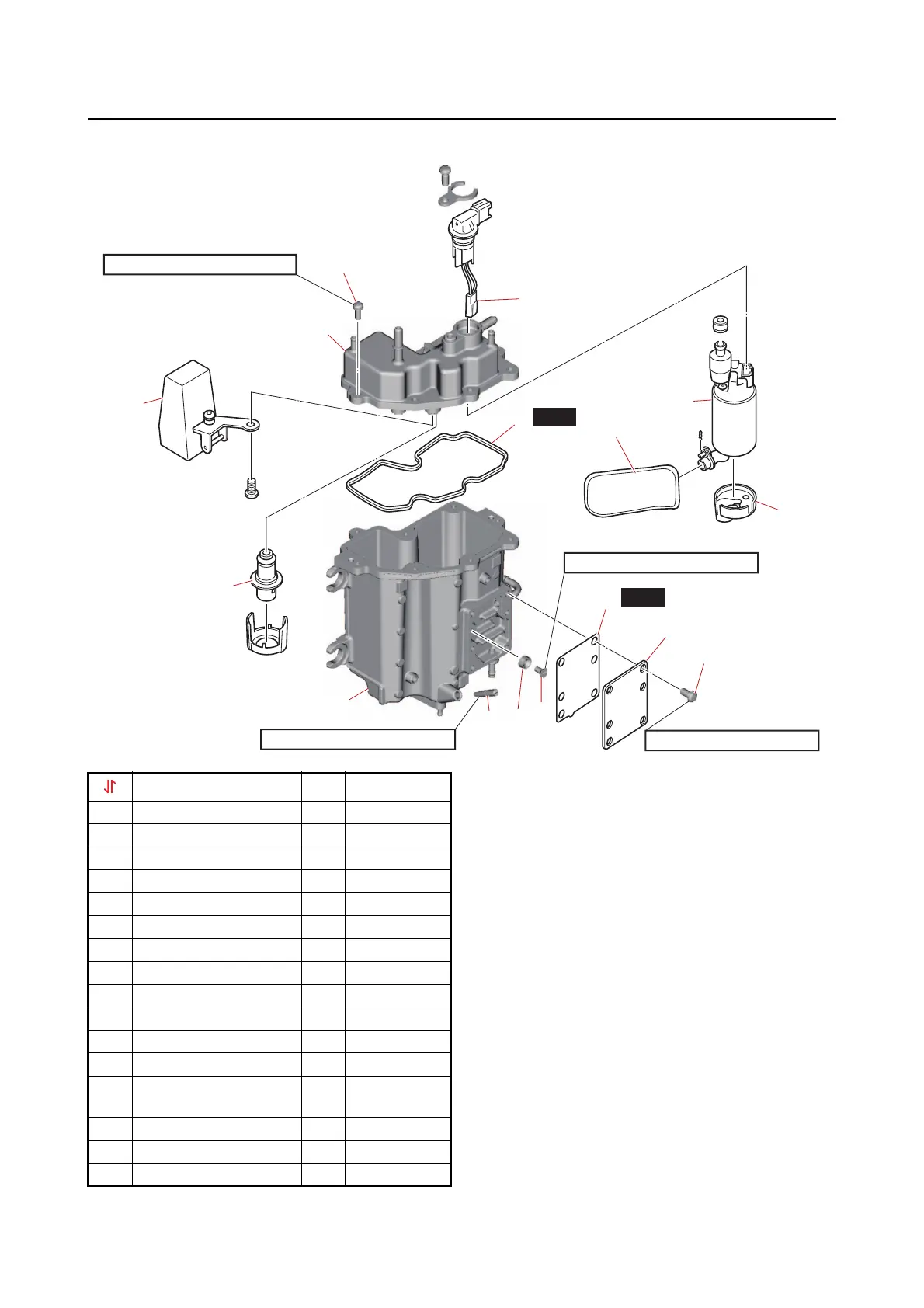

Vapor separator and high-pressure fuel pump
1
2
3
4
5
6
7
8
9
10
11
12
14
13
15
16
New
New
6 N·m (0.6 kgf·m, 4.4 lb·ft)
1.5 N·m (0.15 kgf·m, 1.1 lb·ft)
2.9 N·m (0.29 kgf·m, 2.1 lb·ft)
2.5 N·m (0.25 kgf·m, 1.8 lb·ft)
Part name Q’ty Remarks
1 Drain screw 1
2 Screw M6  9 mm 6
3 Cover 1
4 Gasket 1
5 Screw M5  6 mm 1
6 Anode 1
7 Screw M5  14
mm 8
8 Cover 1
9 Gasket 1
10 Cushion rubber 1
11 Float chamber body 1
12 Filter 1
13
High-pressure fuel
pu
mp
1
14 Lead 1
15 Pressure regulator 1
16 Float 1
