Serviceability
2-14
Serviceability

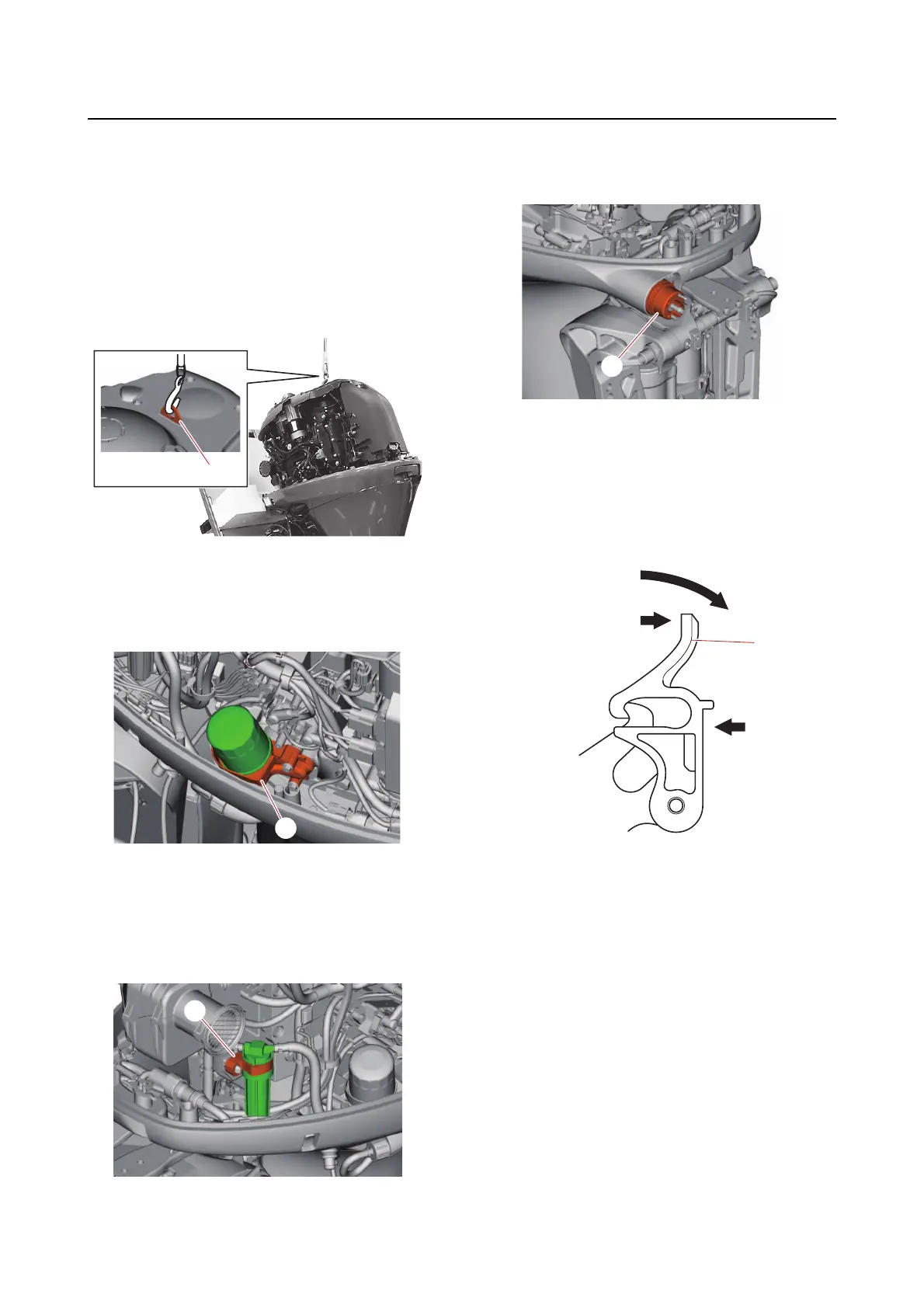

Lifting the outboard motor
The outboard motor can be suspended without
removing the flywheel magneto cover by at-
taching the lifting harness to the designated lift-
ing point “1”.
However, use the special service tool (lifting
eye) when removing the engine from the out-
board motor.
Oil catch tray
The oil filter is mounted on the oil catch tray “1”
to prevent oil from dripping during oil filter re-
placement.
Fuel filter
The mounting method of the fuel filter has been
changed to a rubber holder “1” type. This al-
lows fuel filter removal without the use of a tool,
improving serviceability.
Rigging grommet
The rigging grommet “1” is located on the
STBD side for easier rigging.
Cable clamp
The shape of cable clamp “1” has been
changed to improve the cable holding perfor-
mance and reliability. To remove it, while
pressing and holding [1] and [2], turn the cable
clamp “1” in direction [3].
1
1
1
1
[1]
1
[2]
[3]
To Next Page
