Shimming
8-27
Shimming procedure
• Before selecting the forward gear shim (T1) and reverse gear shims (T2), make sure to select the pin-
ion shims (T3).
• When assembling the lower unit to measure the backlash after selecting the pinion shims (T3), d
o not
apply gear oil, grease, or sealant to the parts.
• When assembling
the lower unit after shimming is completed, make sure to apply gear oil, grease,
and sealant to the specified areas.

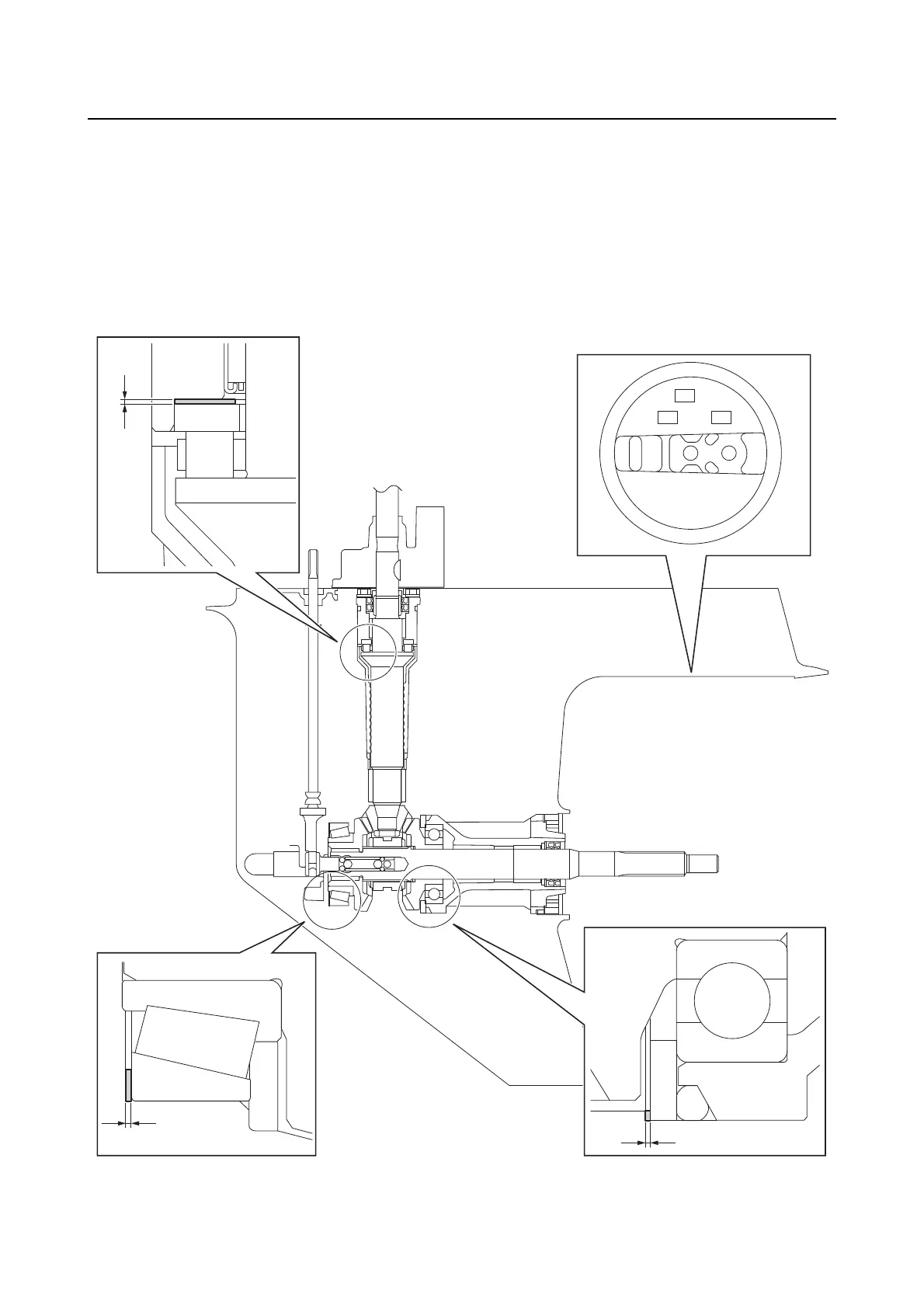

Shim location
To Next Page
