Yamaha F75F - Crankcase

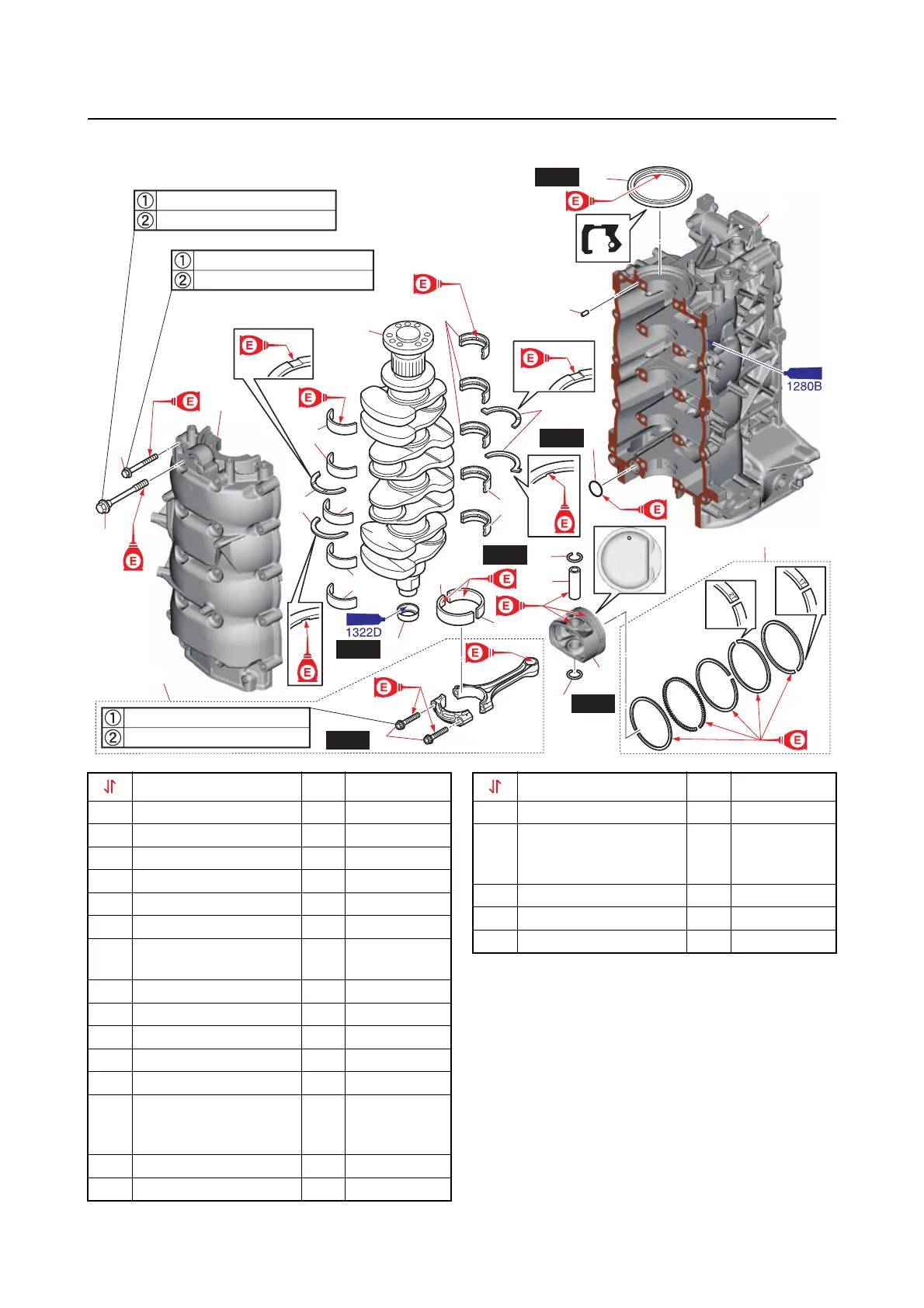

Crankcase
7-46
Crankcase
1
2
3
4
5
6
7
8
8
9
10
10
11
12
13
14
14
14
15
16
16
17
18
19
20
New
New
New
New
New
New
28 N·m (2.8 kgf·m, 21 lb·ft)
14 N·m (1.4 kgf·m, 10 lb·ft)
60˚
16 N·m (1.6 kgf·m, 12 lb·ft)
60˚
13 N·m (1.3 kgf·m, 9.6 lb·ft)
Part name Q’ty Remarks
1 Bolt M8  55
mm 10
2 Bolt M10  10
5 mm 10
3 Crankcase 1
4 Dowel pin 10
5 O-ring 1
6 Bolt M8  36
mm 8
7
Connecting rod
as
sembly
4
8 Bearing 8
9 Piston ring set 4
10 Clip 8
11 Pin 4
12 Piston 4
13 Thrust bearing 2
Locating
cr
ankcase
side
14 Bearing 5
15 Crankshaft 1
16 Bearing 5
17 Thrust bearing 2
Locating cyl-
inder block
side
18 Oil seal 1
19 Collar 1
20 Cylinder block 1
Part name Q’ty Remarks
