Fuel system
2-19
High-pressure fuel pump control
The high pressure fuel pump operates for 5 seconds after the engine start switch is turned to ON, and
always operates while the engine is running.
The pump stops 1 second later after the engine stops.

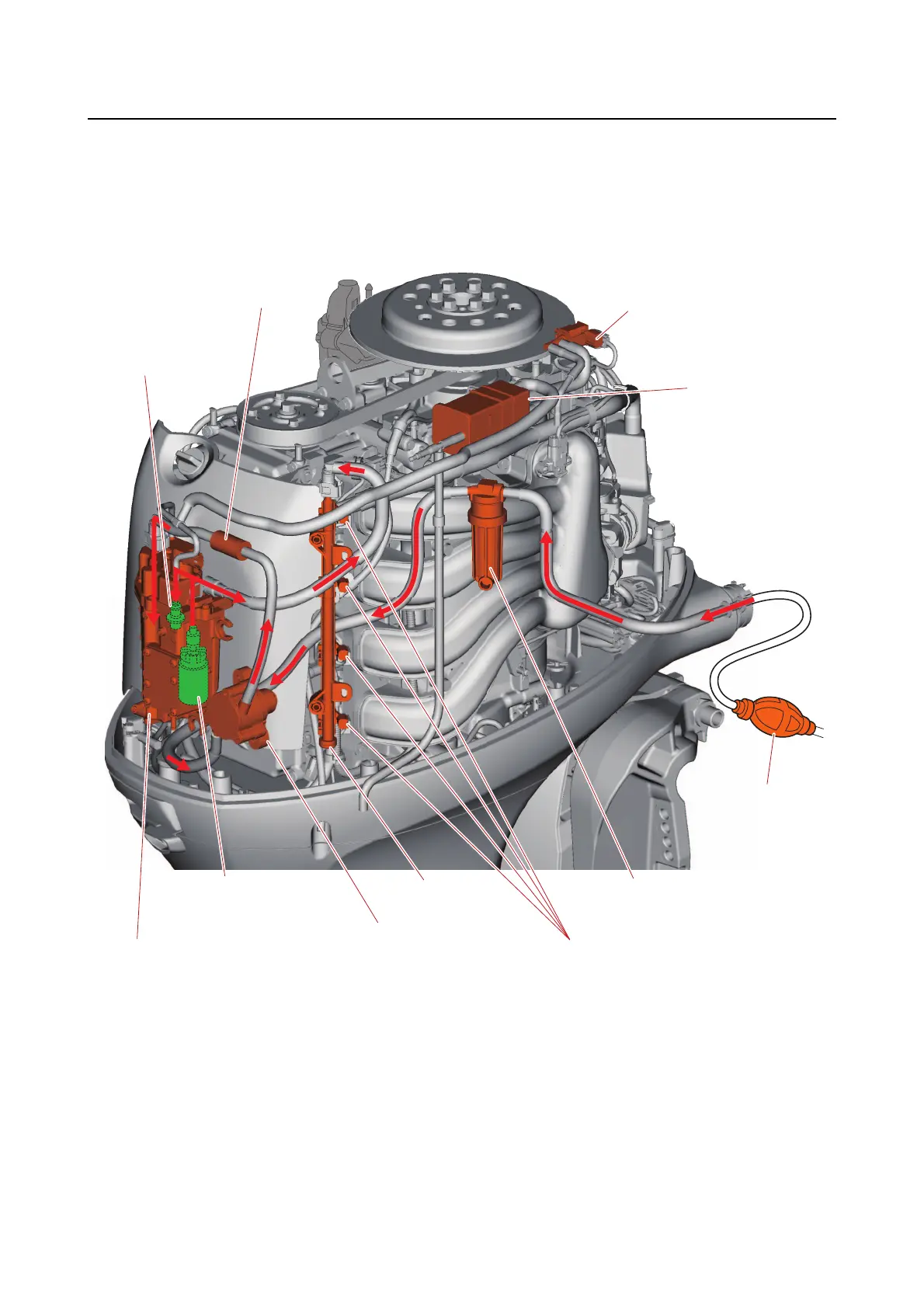

Fuel diagram
11. Fuel rail
9. High-pressure
fuel pump
10. Fuel pressure
regulator
12. Fuel injector
3. Fuel filter
(Water separator)
16. Vapor shut-off valve
15. Canister
6. Vapor separator
5. Fuel strainer
4. Low-pressure
fuel pump
2. Primer pump
