Hose routing
2-26
Hose routing

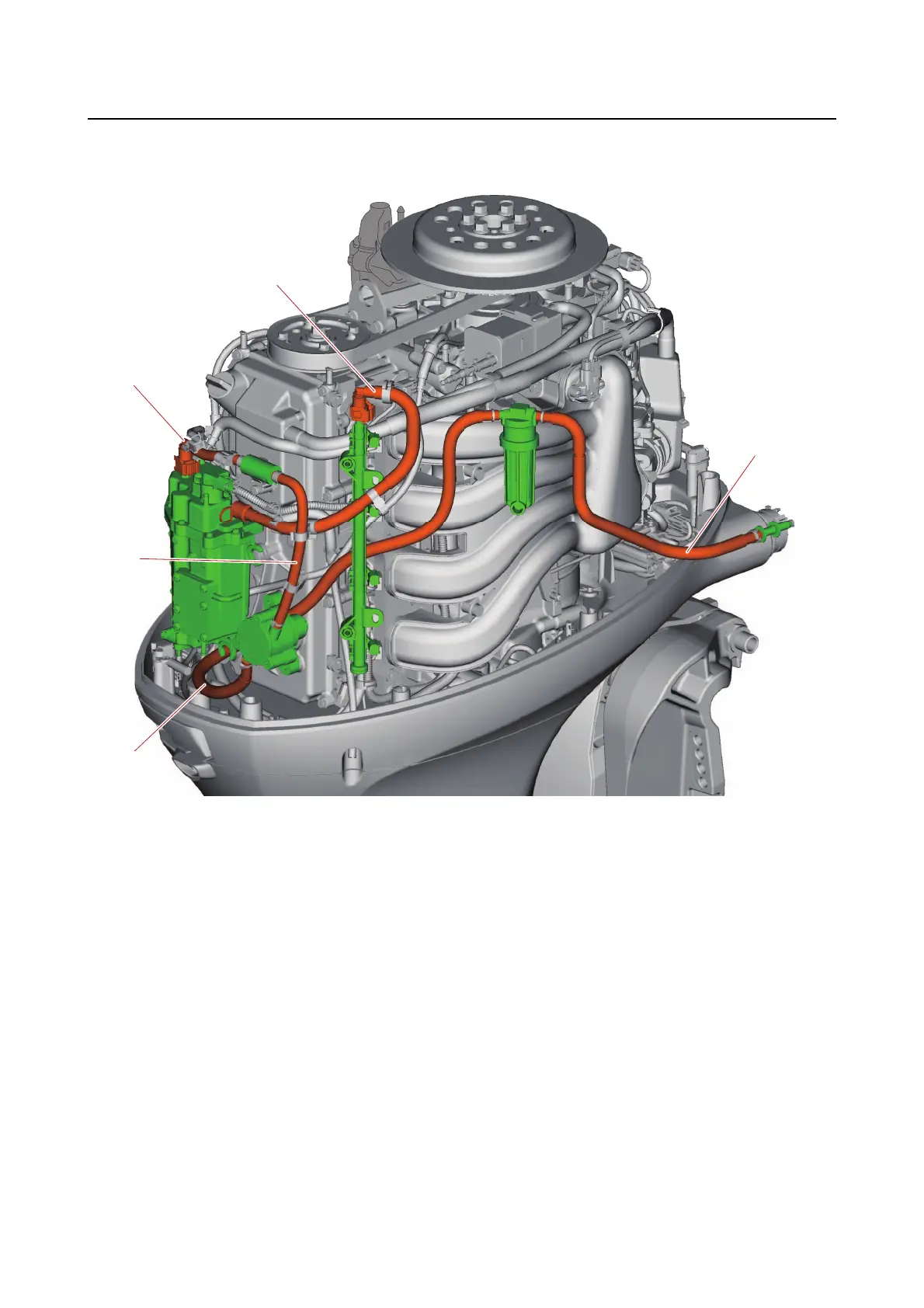

Fuel hose
1
2
3
4
5
1. Joint to fuel filter assembly
2. Fuel filter assembly to low-pressure fuel
pump
3. Low-pressure fuel pump to fuel strainer
4. Fuel strainer to vapor separator
5. Vapor separator to fuel rail
