Yamaha F75F - Starter Motor

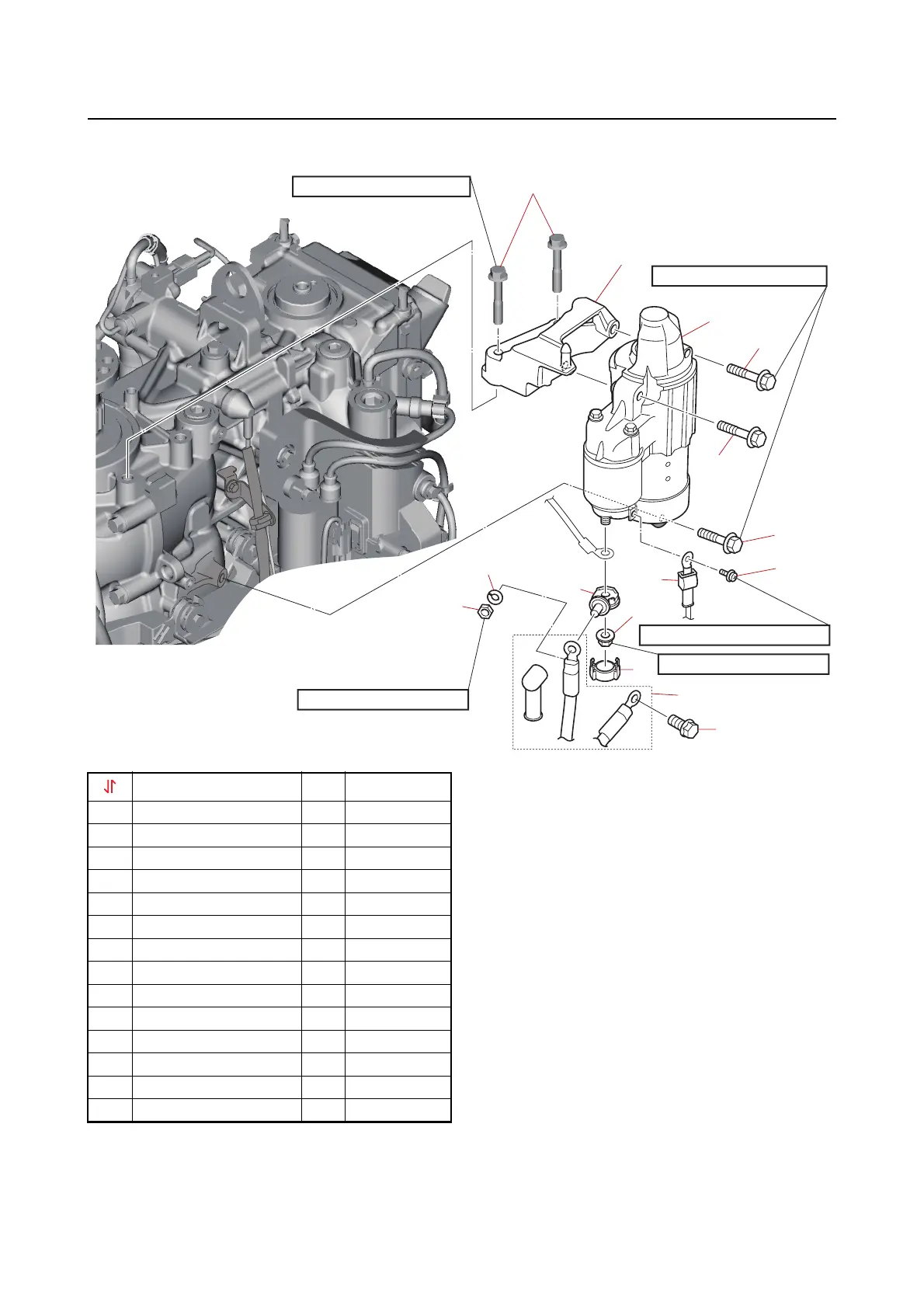

Starter motor
7-16
Starter motor
11
11
4
12
7
1
8
3
2
9 N·m (0.9 kgf·m, 6.6 lb·ft)
9 N·m (0.9 kgf·m, 6.6 lb·ft)
2.0 N·m (0.20 kgf·m, 1.5 lb·ft)
33 N·m (3.3 kgf·m, 24 lb·ft)
9
6
5
10
13
14
25 N·m (2.5 kgf·m, 18 lb·ft)
Part name Q’ty Remarks
1 Bolt M6  16
mm 1
2 Nut M8 1
3 Washer 1
4 Battery cable 1
5 Cap 1
6 Nut M8 1
7 Ter m in a l 1
8 Screw M4  8 mm 1
9 Cap 1
10 Bolt M8  40
mm 1
11 Bolt M8  45
mm 2
12 Starter motor 1
13 Bolt M8  50
mm 2
14 Bracket 1
