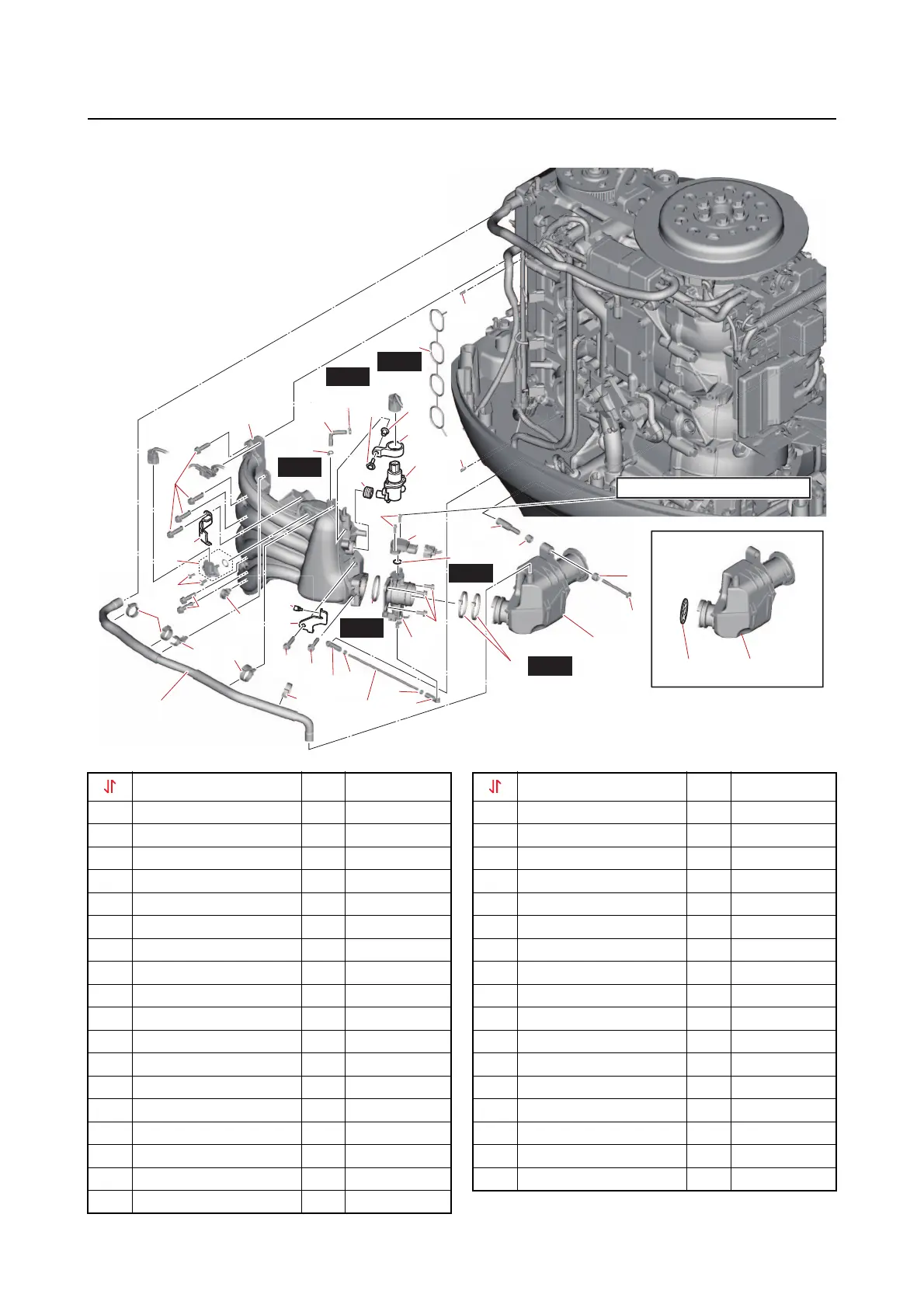

Yamaha F75F - Intake Silencer, Intake Manifold and Throttle Body

Intake silencer, intake manifold and throttle body
6-19
Intake silencer, intake manifold and throttle body
1
1
2
3
4
5
6
7
8
12
11
13
13
25
25
28
27
36
25
22
25
35
14
14
15
16
17
31
32
37
38
38
33
34
23
29
30
18
19
20
New
New
New
New
24
23
New
New
21
3.4 N·m (0.34 kgf·m, 2.5 lb·ft)
26
910
Part name Q’ty Remarks
1 Clamp 3
2 Holder 1
3 Holder 1
4 Hose 1
5 Bolt M6  80
mm 1
6 Bushing 1
7 Plastic tie 2
8 Intake silencer 1 *1
9 Intake silencer 1 *2
10 Plate 1 *2
11 Collar 1
12 Bushing 1
13 Joint 2
14 Nut M5 2
15 Rod 1
16 Screw M5  16
mm 2
17 TPS 1
18 O-ring 1
19 Bolt M6  16 mm 3
20 Throttle body 1
21 Gasket 1
22 Holder 1
23 Plastic tie 2
24 Hose 1
25 Bolt M8  40
mm 8
26 Cover 1
27 Plate 1
28 Grommet 1
29 Intake manifold 1
30 Bolt M6  25
mm 1
31 Damper 1
32 Collar 1
33 ISC valve 1
34 Gasket 1
35 Screw M5  15
mm 2
Part name Q’ty Remarks
