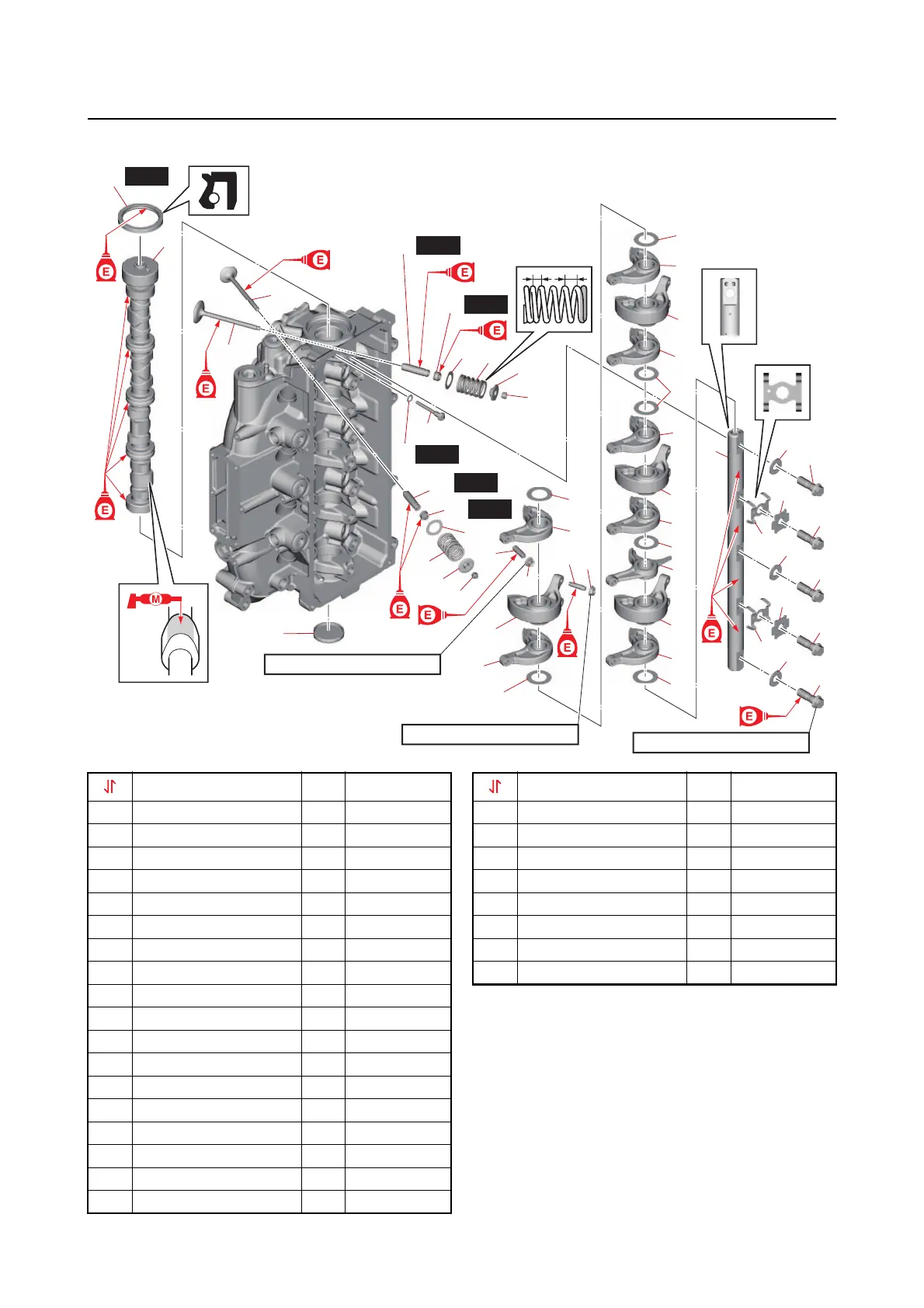

Yamaha F75F - Camshaft and Valve

Camshaft and valve
7-30
Camshaft and valve
1
2
3
4
5
5
5
5
5
6
6
6
7
7
8
8
9
10
10
10
10
10
11
11
11
12
10
11
11
11
11
13
12
12
12
14
15
16
17
18
19
19
20
20
21
22
22
25
26
23
24
New
New
New
25
26
New
New
New
21
14 N·m (1.4 kgf·m, 10 lb·ft)
14 N·m (1.4 kgf·m, 10 lb·ft)
28 N·m (2.8 kgf·m, 21 lb·ft)
Part name Q’ty Remarks
1 Locknut M7 8
2 Adjusting screw M7 8
3 Locknut M6 8
4 Adjusting screw M6 8
5 Bolt M10  32
mm 5
6 Washer 3
7 Stopper 2
8 Ten sio ner 2
9 Shaft 1
10 Washer 7
11 Rocker arm 7
12 Rocker arm 4
13 Rocker arm 1
14 Bolt M6  45
mm 1
15 Gasket 1
16 Camshaft 1
17 Oil seal 1
18 Plug 1
19 Valve cotter 32
20 Retainer 16
21 Valve spring 16
22 Valve spring seat 16
23 Intake valve 8
24 Exhaust valve 8
25 Valve stem seal 16
26 Valve guide 16
Part name Q’ty Remarks
