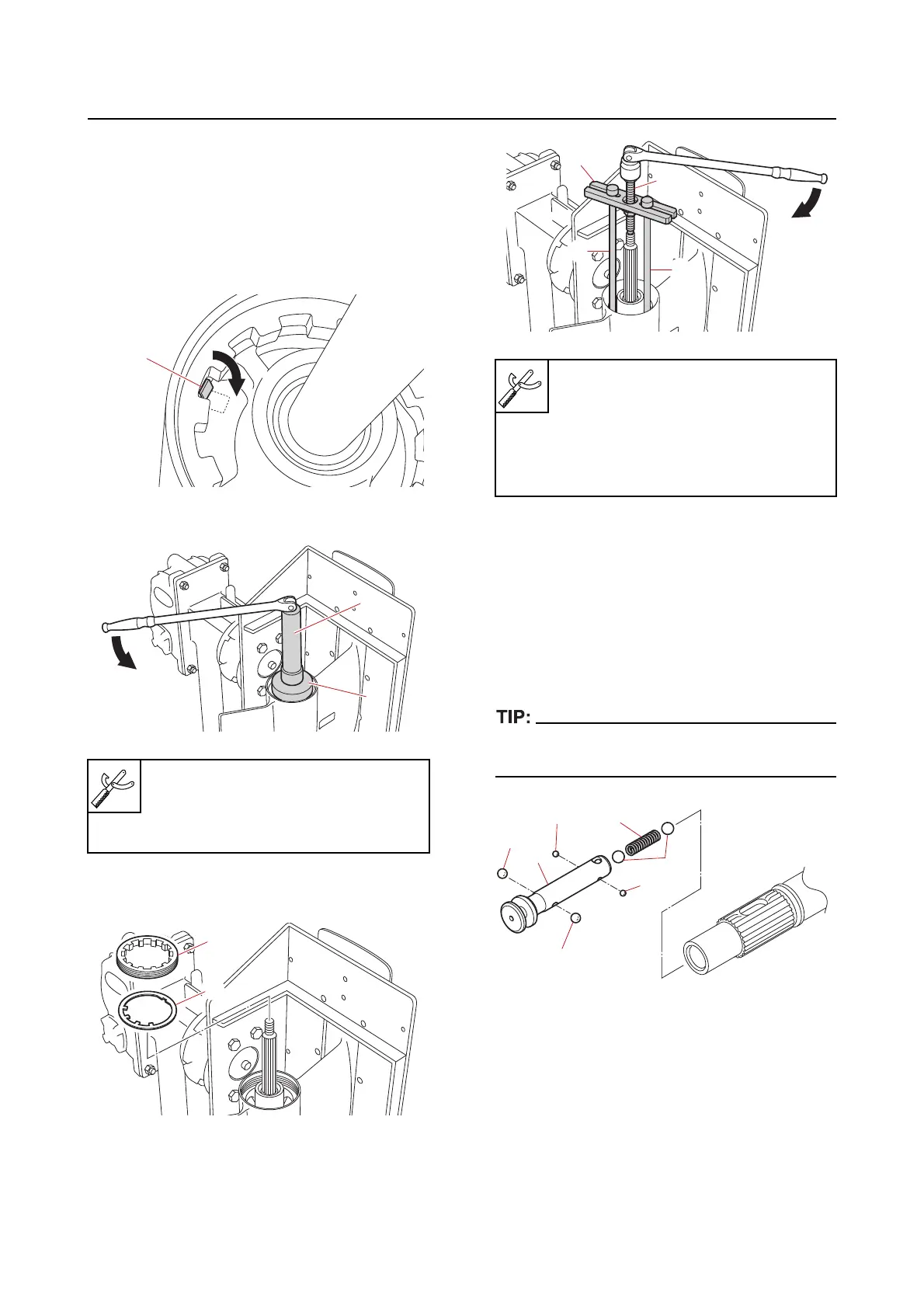

Yamaha F75F - Disassembling the Propeller Shaft Assembly; Removing the Propeller Shaft Housing Assembly

Propeller shaft housing
8-6
Removing the propeller shaft housing
assembly
1. Remove:
• Ring nut
• Claw washer
a. Straighten the bent tab “a” on the claw
washer.
b. Loosen the ring nut.
c. Remove the ring nut “1” and claw
w
asher “2”.
2. Remove:
• Propeller shaft
housing assembly
• Key
Disassembling the propeller shaft as-
sembly
1. Remove:
• Slider “1”
• Ball “2”
• Ball “3”
• Ball “4”
• Spring “5”
When removing the slider “1”, make sure that
the balls do not fall out of position.
Ring nut wrench 3 “1”
90890-06511
Ring nut wrench extension “2”
90890-06513
a
2
1
1
2
Stopper guide plate “1”
90890-06501
Bearing housing puller claw L “2”
90890-06502
Center bolt “3”
90890-06504
3
2
2
1
1
2
2
5
4
3
3
