PTT system
5-40

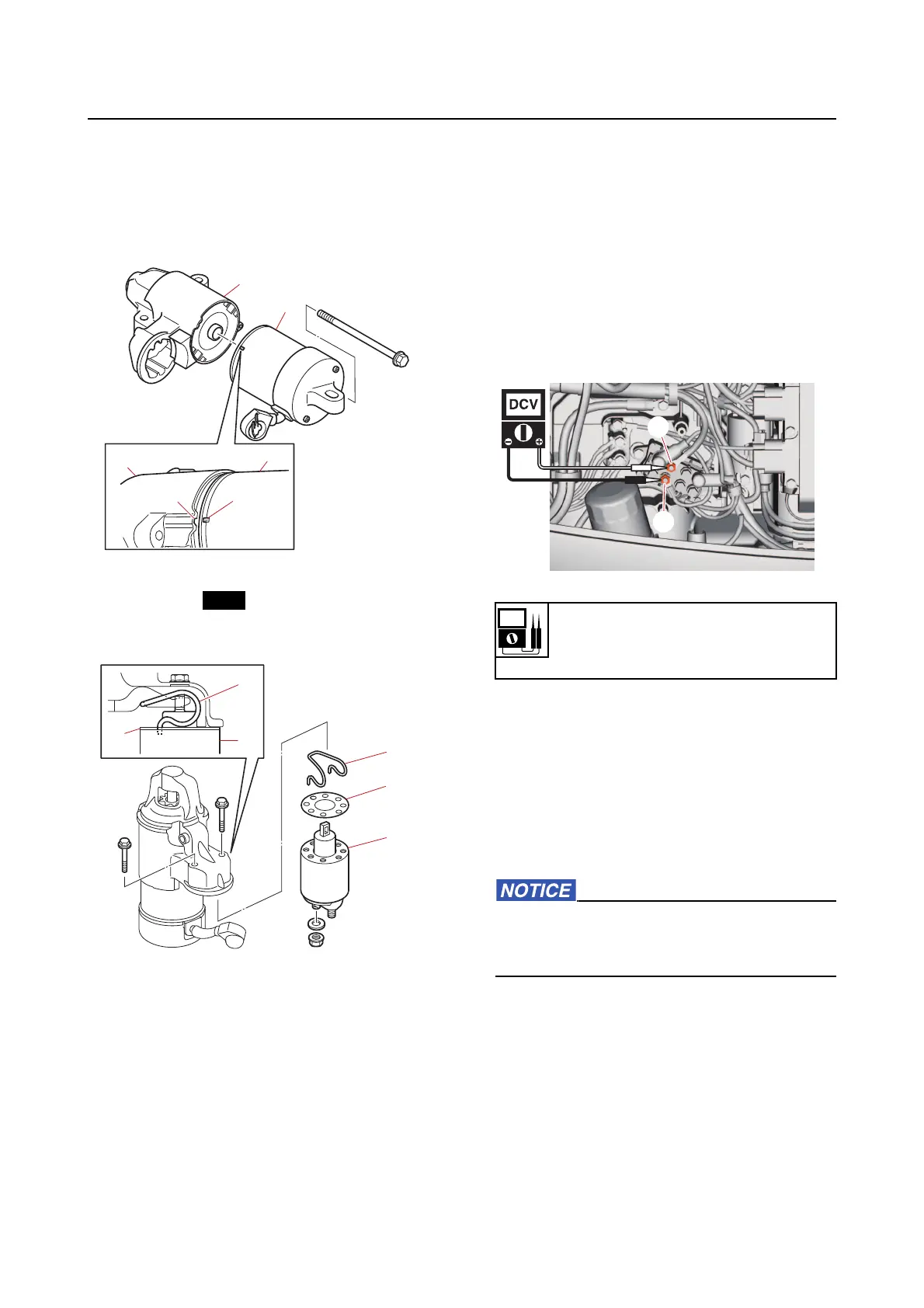

8. Install:
• Stator bolt
a. Align the protrusion “a” on the stator
“1” wit
h the slot “b” in the cover assem-
bly “2”, and then assemble the starter
motor.
9. Install:
• Gasket “1”
• Spring “2”
• Magnet switch “3”
Installing the starter motor
1. Install:
• Starter motor
See “Starter motor” (7-16).
PTT system
Checking the PTT relay
1. Measure:
• PTT relay input voltage
Out of specification Check the
wire har-
ness for continuity.
a. Remove the caps.
b. Measure the input voltage between
the PTT relay
terminal “a” and terminal
“b”.
c. Install the caps.
2. Check:
• PTT relay continuity
Out of specification Replace.
a. Disconnect the battery power source,
ground le
ad, PTT motor leads, and
PTT relay coupler.
Before disconnecting the PTT relay termi-
nals, make sure to disconnect the battery
negative terminal.
b. Remove the PTT relay.
c. Connect the special service tool “1”.
1
ab
2
1
2
1
2
1
2
3
3
Input voltage
12 V
Terminal “a”–Terminal “b”
b
a
To Next Page
