Yamaha F75F - Assembling the Drive Shaft Housing; Assembling the Forward Gear; Checking the Lower Case

Drive shaft and lower case
8-13
Checking the lower case
1. Check:
• Lower case
Cracked/damaged  Replace.

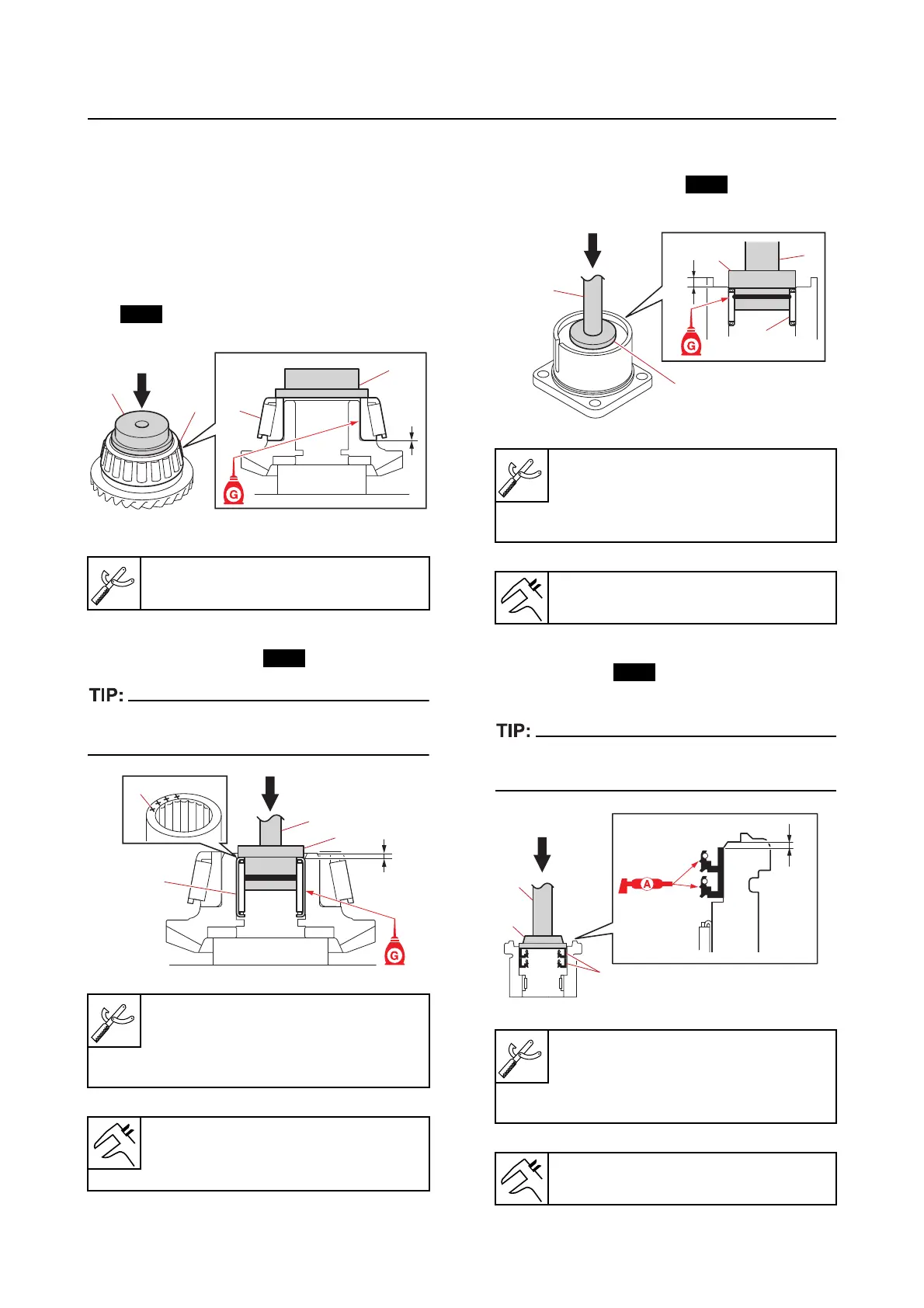

Assembling the forward gear
1. Install:
• Tapere
d roller bearing inner race “1”
2. Install:
• Needle
bearing “1”
Face the bearing identification mark “a” on the
needle bearing up.
Assembling the drive shaft housing
1. Install:
• Needle bea
ring “1” (in the drive
shaft housing)
2. Install:
• Oil seal “1” (in the drive shaft hous-
ing)
Install an oil seal halfway into the drive shaft
housing, and then install the other oil seal.
Needle bearing attachment “2”
90890-06607
Driver rod L3 “2”
90890-06652
Needle bearing attachment “3”
90890-06613
Installation depth “b”
2.50–3.50 mm (0.0984–0.1378
in)
New
1
1
2
2
New
2
3
b
1
a
Needle bearing attachment “2”
90890-06610
Driver rod L3 “3”
90890-06652
Installation depth “a”
5.75–6.25 mm (0.226–0.246 in)
Bearing outer race attachment “2”
90890-06628
Driver rod LS “3”
90890-06606
Installation depth “a”
0.25–0.75 mm (0.010–0.030 in)
New
2
3
a
1
2
3
New
2
3
1
a
