Yamaha F75F - Drive Shaft and Lower Case

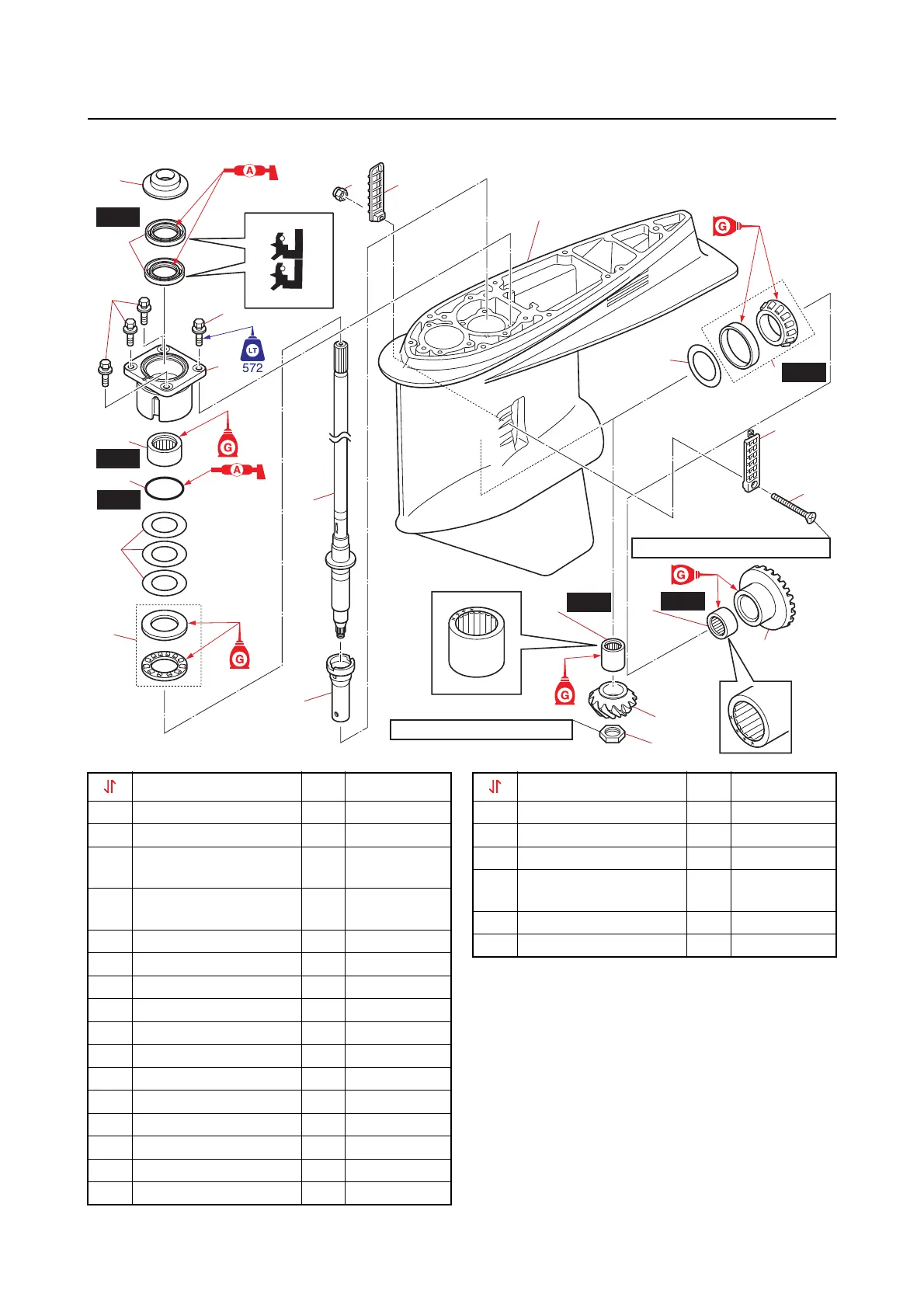

Drive shaft and lower case
8-10
Drive shaft and lower case
5
2
4
3
1
11
6
7
12
10
8
9
16
15
22
20
18
19
17
21
14
6
13
1.1 N·m (0.11 kgf·m, 0.81 lb·ft)
93 N·m (9.3 kgf·m, 69 lb·ft)
New
New
New
New
New
New
Part name Q’ty Remarks
1 Screw M5  48
mm 1
2 Self-locking nut 1
3
Water inlet cover
(PO
RT)
1
4
Water inlet cover
(ST
BD)
1
5 Cover 1
6 Bolt M8  25
mm 4
7 Drive shaft housing 1
8 Pinion shim (T3) —
9 Thrust bearing 1
10 O-ring 1
11 Oil seal 2
12 Needle bearing 1
13 Nut 1
14 Pinion 1
15 Drive shaft 1
16 Sleeve 1
17 Forward gear 1
18 Tapered roller bearing 1
19 Needle bearing 1
20
Forward gear shim
(T
1)
—
21 Needle bearing 1
22 Lower case 1
Part name Q’ty Remarks
