Yamaha F75F - PTT Cylinder

PTT cylinder
9-39

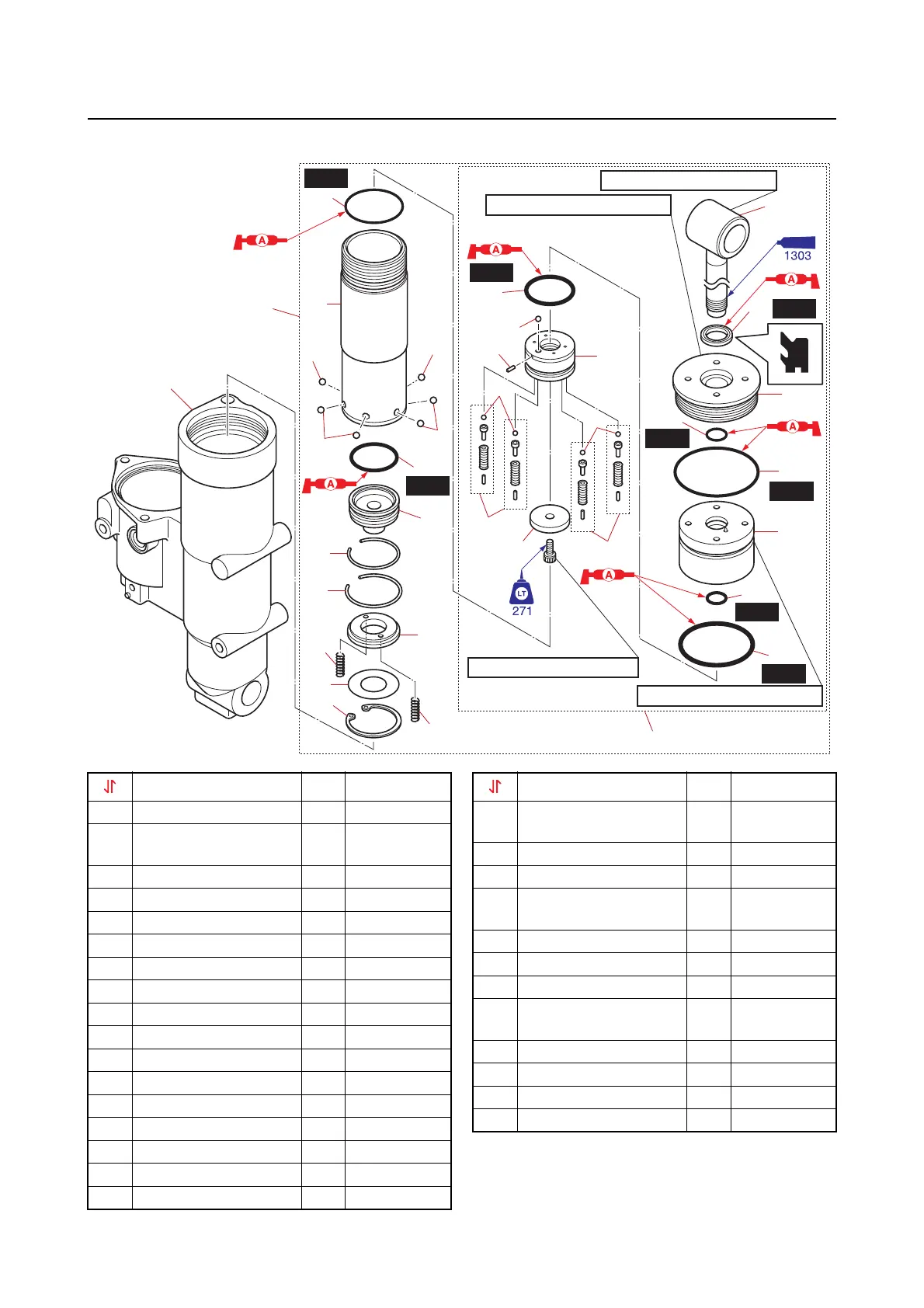

PTT cylinder
*1: Reference data
13
2
2
2
2
14
12
5
26
25
23
4
10
11
9
7
6
3
8
8
28
24
15
21
20
16
17
27
150 N·m (15 kgf·m, 111 lb·ft)
65 N·m (6.5 kgf·m, 48 lb·ft)
7 N·m (0.7 kgf·m, 5.2 lb·ft)
150 N·m (15 kgf·m, 111 lb·ft)
22
1
29
18
18
17
19
New
New
New
New
New
New
New
New
Part name Q’ty Remarks
1 Trim piston assembly 1
2
Ball 4.76 mm (0.19 in)
*1
6
3 Trim cylinder 1
4 Tilt piston assembly 1
5 O-ring 1
6 Circlip 1
7 Plate 1
8 Spring 2
9 Plate 1
10 Circlip 1
11 Circlip 1
12 Free piston 1
13 O-ring 1
14 Tilt cylinder M55 1
15 O-ring 1
16 Plate 1
17 Absorber valve 4
18
Ball 3.97 mm (0.16 in)
*1
4
19 Tilt piston 1
20 Pin 1
21
Ball 3.97 mm (0.16 in)
*1
1
22 Tilt cylinder end screw 1
23 O-ring 1
24 O-ring 1
25
Trim cylinder end
scre
w M68
1
26 Dust seal 1
27 O-ring 1
28 O-ring 1
29 Trim and tilt ram 1
Part name Q’ty Remarks
