Yamaha F75F - Rigging Grommet Description; Rigging Grommet Mounting

Rigging grommet mounting
3-4

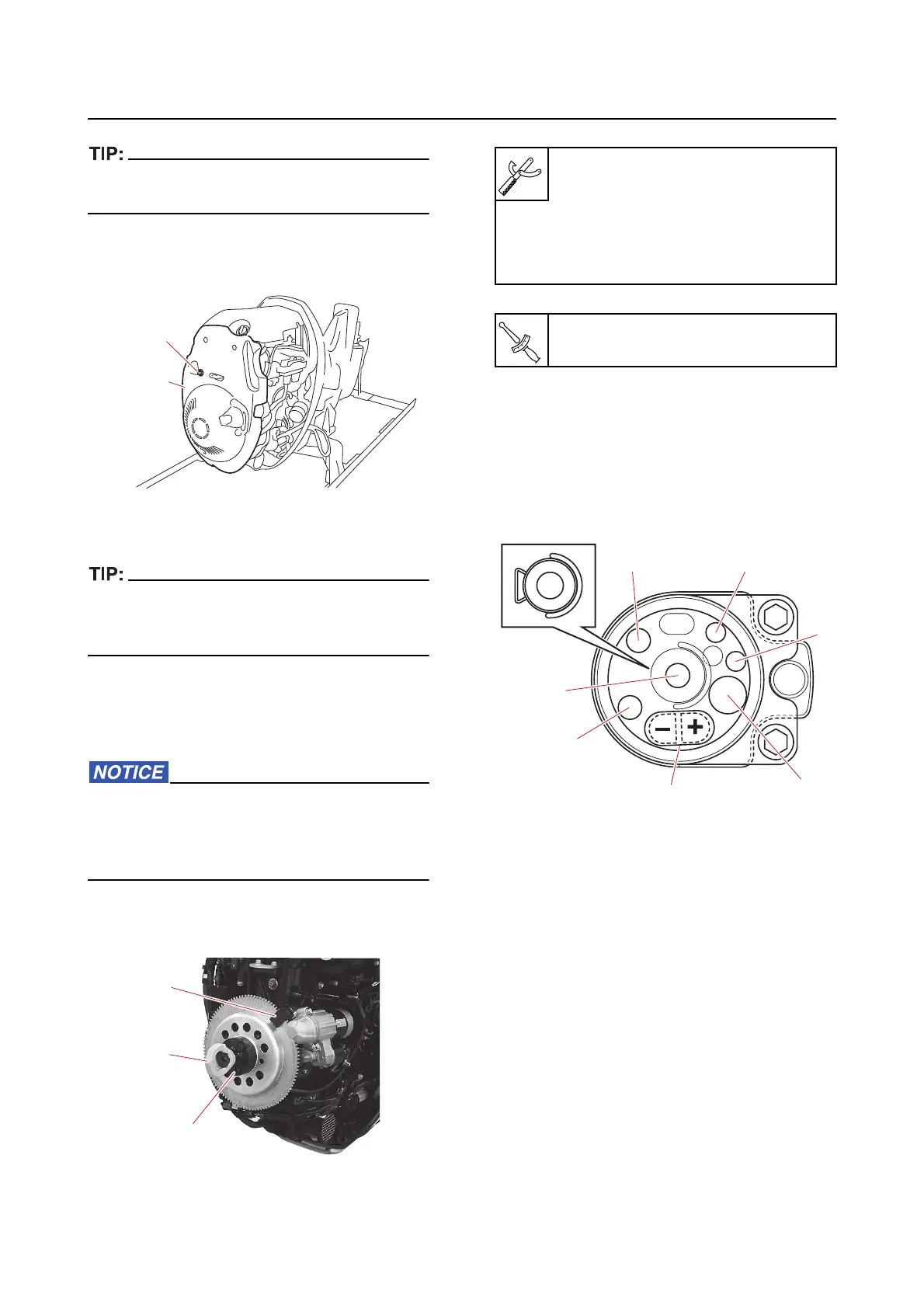

Use the following procedure to suspend the
outboard motor using the special service tool.
1. Remove the bolt “1”, and then remove the
flywheel magneto cover “2”.
2. Attach the special service tool “1” to pre-
vent the flywheel magneto from turning.
The special service tool “1” is installed to tight-
en the lifting eye bolts “3” to the specified
torque.
3. Install the special service tool “2” to the fly-
wheel magneto, and then tighten the lifting
eye bolts “3” to the specified
torque.
When lifting the outboard motor, make sure
to use the specified special service tool.
Other bolts and hanging jigs could bend or
break, causing the outboard motor to fall.
4. Remove the special service tool “1” from
the flywheel magneto.
5. Install the lifting harness to the lifting eye.
Rigging grommet mounting
Rigging grommet description
Pass all the rigging components through the
proper holes in the rigging grommet.
1
2
1
2
3
Flywheel stopper B “1”
90890-06686
Lifting eye “2”
90890-06953
Bolt hexagon with washer “3”
90890-06821
Lifting eye bolt “3”
36 N·m (3.6 kgf·m, 27 lb·ft)
1. Throttle cable
2. Speedometer hose
3. Gauge harness
4. Main wire harness
5. Battery cable
6. Shift cable
7. Fuel hose
T
R
.
.
1
2
3
5
6
7
4
