Yamaha F75F - Fuse Box

Fuse box
7-22

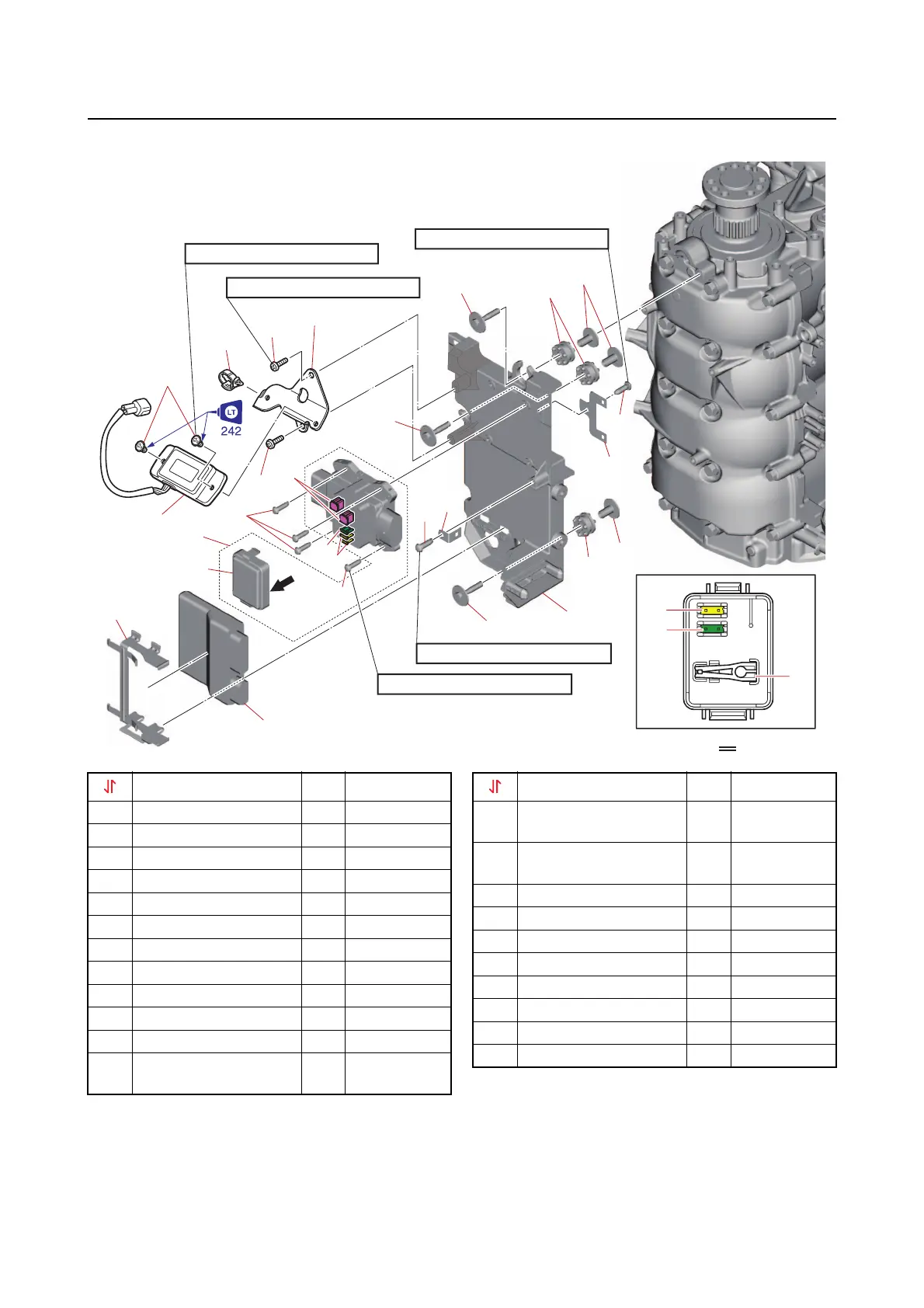

Fuse box
*1: F75FEHT, F100GEHT
3
4
5
6
7
5
A
1
2
8
8
9
10
11
12
13
13
14
15
16
17
17
18
19
20
19
21
22
12
1.8 N·m (0.18 kgf·m, 1.3 lb·ft)
20
2.5 N·m (0.25 kgf·m, 1.8 lb·ft)
17
2.5 N·m (0.25 kgf·m, 1.8 lb·ft)
2.3 N·m (0.23 kgf·m, 1.7 lb·ft)
2.5 N·m (0.25 kgf·m, 1.8 lb·ft)
A
Part name Q’ty Remarks
1 Lock plate 1
2 Engine ECM 1
3 Screw M5  12
mm 2 *1
4 Hour meter 1 *1
5 Screw M6  20
mm 2 *1
6 Holder 1 *1
7 Bracket 1 *1
8 Screw M5  20
mm 4
9 Fuse box assembly 1
10 Cover 1
11 Fuse puller 1
12 Fuse 3
20 A, spare
is inc
luded.
13 Fuse 2
30 A, spare
is inc
luded.
14 Fuse 2
50 A, spare
is inc
luded.
15 Screw M6  20
mm 1
16 Holder 1
17 Bolt M6  35
mm 3
18 Bracket 1
19 Collar 3
20 Grommet 3
21 Screw M6  20
mm 1
22 Plate 1
Part name Q’ty Remarks
