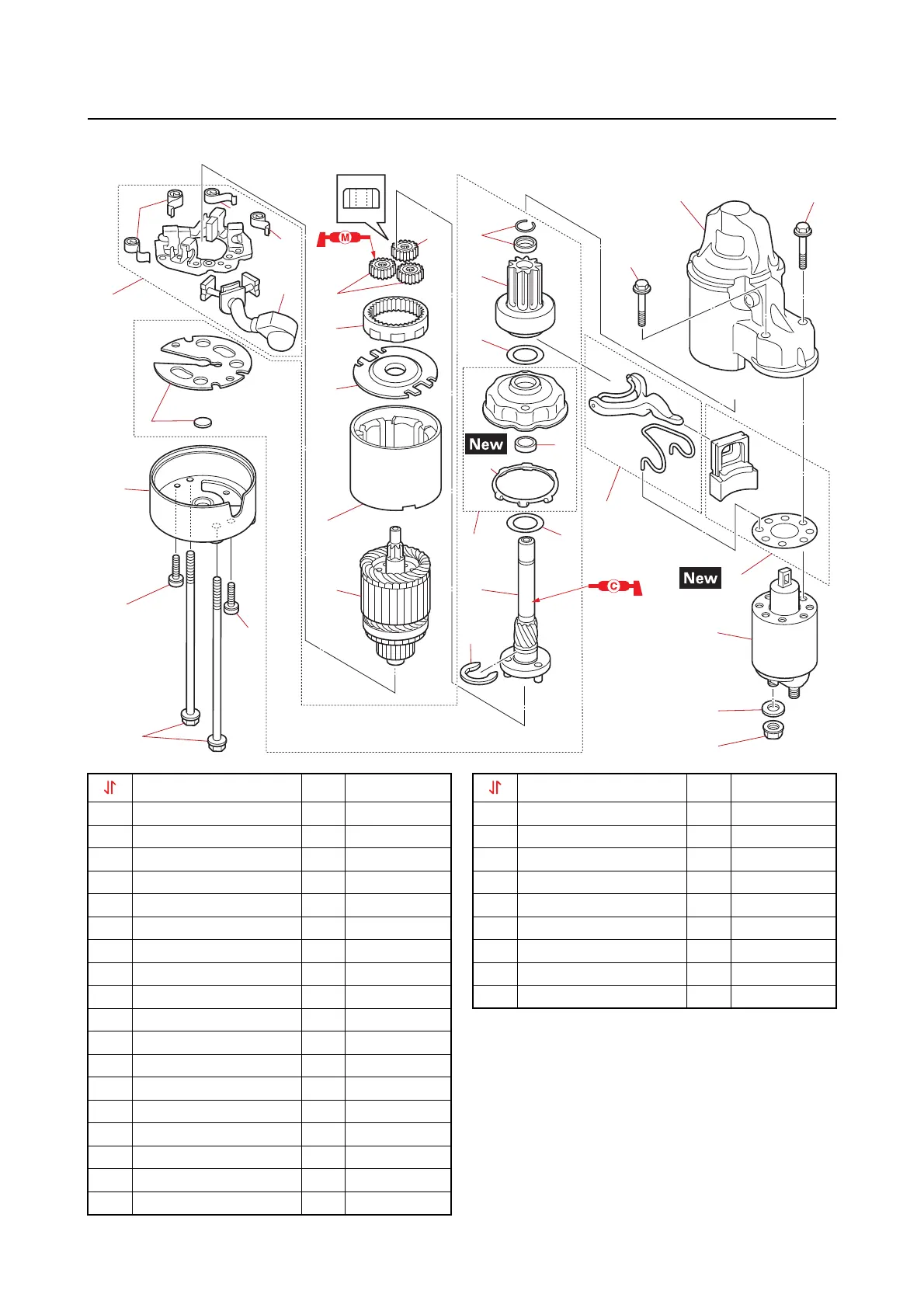

Starter motor
5-35
Starter motor
9
16
16
21
26
27
15
14
6
10
13
13
13
12
11
7
5
8
7
23
23
22
20
24
25
19
3
3
18
2
4
1
17
Part name Q’ty Remarks
1 Nut M8 1
2 Washer 1
3 Bolt M6  35
mm 2
4 Magnet switch 1
5 Bolt M5  12
7 mm 2
6 Stator 1
7 Screw M4  16
mm 2
8 Bracket 1
9 Washer set 1
10 Armature 1
11 Brush holder assembly 1
12 Brush assembly 1
13 Brush spring 4
14 Plate 1
15 Outer gear 1
16 Planetary gear 3
17 Cover 1
18 Seal set 1
19 Lever assembly 1
20 Stopper 1
21 Pinion assembly 1
22 E-clip 1
23 Washer 2
24 Bracket assembly 1
25 Bearing 1
26 Gasket 1
27 Pinion shaft 1
