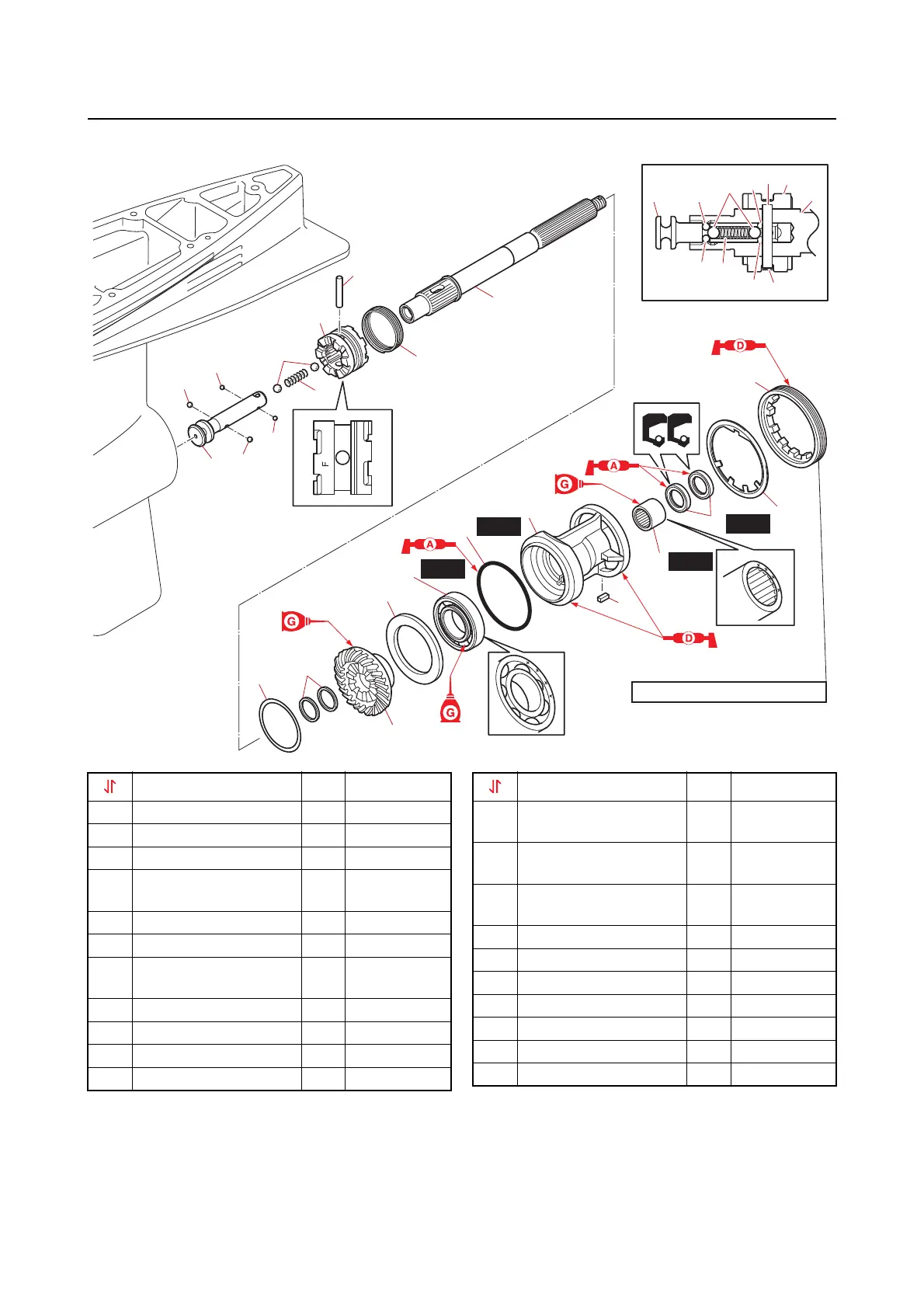

Propeller shaft housing
8-5
Propeller shaft housing
*1: Reference data
105 N·m (10.5 kgf·m, 77 lb·ft)
11
12
12
13
15
13
14
10
9
8
6
7
5
17
18
19
16
4
20
2
1
11
12
12 15
13
9
10
6
13
8
14
3
21
New
New
New
New
Part name Q’ty Remarks
1 Ring nut M101.5 1
2 Claw washer 1
3 Key 1
4
Propeller shaft hous-
ing
1
5 Washer 2
6 Propeller shaft 1
7
Reverse gear shim
(T
2)
—
8 Cross pin ring 1
9 Cross pin 1
10 Dog clutch 1
11 Slider 1
12
Ball 5.56 mm (0.22 in)
*1
2
13
Ball 4.76 mm (0.19 in)
*1
2
14
Ball 8.73 mm (0.34 in)
*1
2
15 Spring 1
16 O-ring 1
17 Reverse gear 1
18 Thrust washer 1
19 Ball bearing 1
20 Oil seal 2
21 Needle bearing 1
Part name Q’ty Remarks
