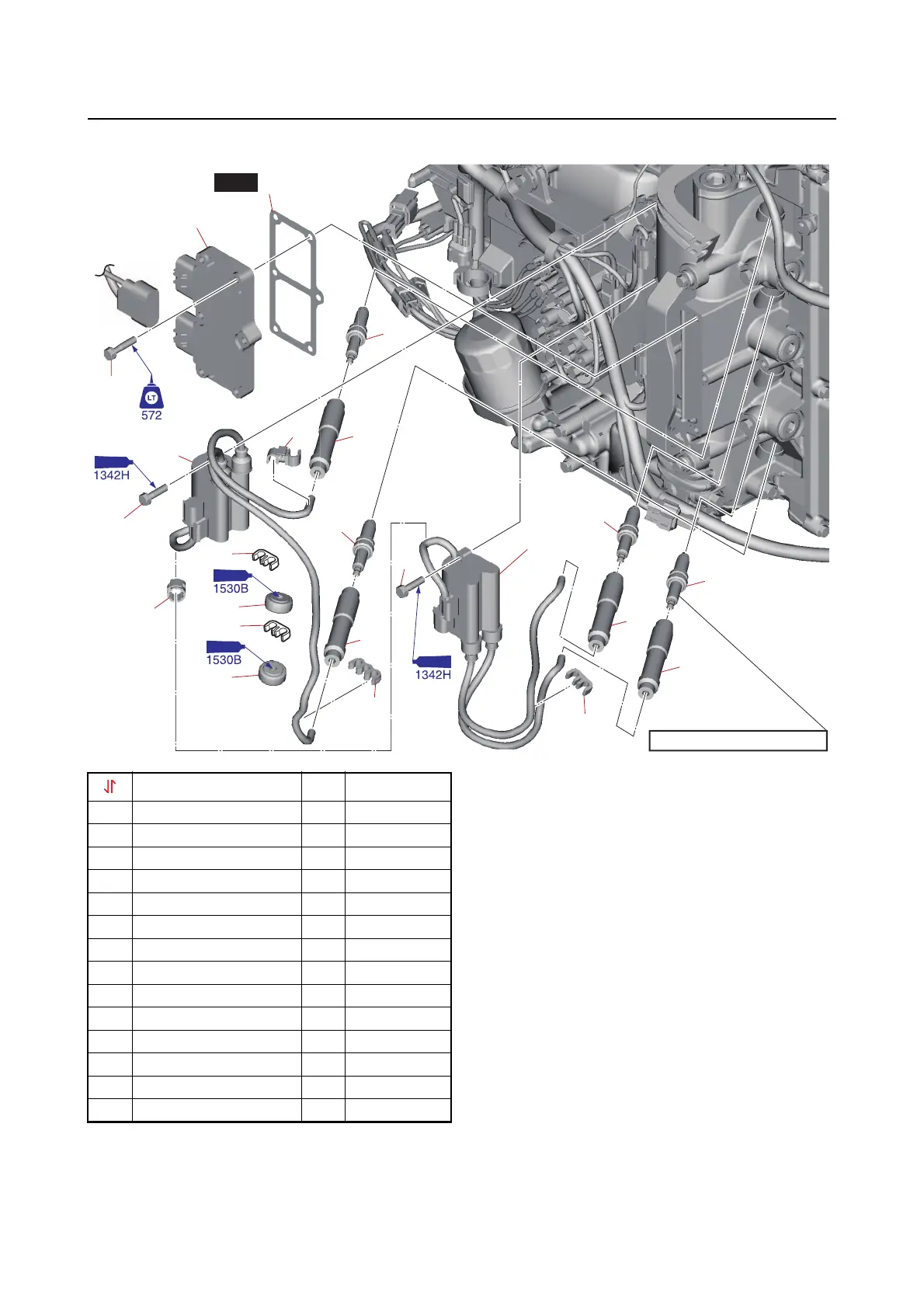

Rectifier/regulator, ignition coil, and spark plug
7-17
Rectifier/regulator, ignition coil, and spark plug
1
2
3
4
5
6
7
8
9
9
10
11
12
12
12
12
14
14
14
14
13
New
6
13
25 N·m (2.5 kgf·m, 18 lb·ft)
Part name Q’ty Remarks
1 Bolt M6  30
mm 6
2 Rectifier/regulator 1
3 Gasket 1
4 Clamp 1
5 Clamp 1
6 Clamp 2
7 Clamp 1
8 Clamp 1
9 Bolt M6  25
mm 4
10 Ignition coil 1
11 Ignition coil 1
12 Spark plug cap 4
13 Grommet 2
14 Spark plug M12 4
