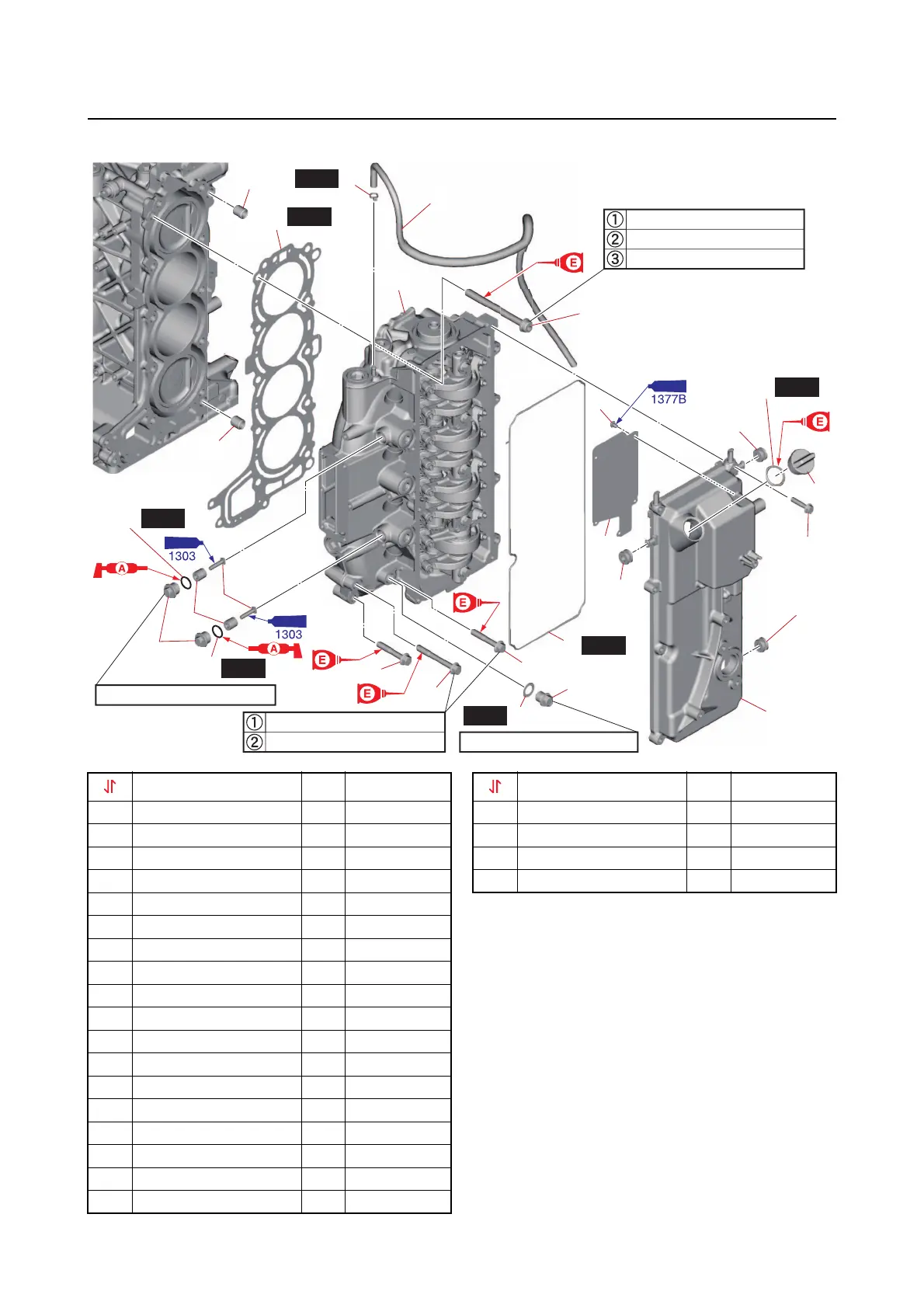

Yamaha F75F - Cylinder Head

Cylinder head
7-27
Cylinder head
18
1
2
3
3
3
4
5
6
7
8
9
10
11
12
13
14
19
20
21
22
22
New
New
New
12
New
New
New
17
17
18 N·m (1.8 kgf·m, 13 lb·ft)
23 N·m (2.3 kgf·m, 17 lb·ft)
15
16
New
46 N·m (4.6 kgf·m, 34 lb·ft)
180°
26 N·m (2.6 kgf·m, 19 lb·ft)
28 N·m (2.8 kgf·m, 21 lb·ft)
14 N·m (1.4 kgf·m, 10 lb·ft)
Part name Q’ty Remarks
1 Oil filler cap 1
2 O-ring 1
3 Grommet 3
4 Bolt M6  30
mm 8
5 Cylinder head cover 1
6 Gasket 1
7 Screw M4  7 mm 5
8 Plate 1
9 Plastic tie 1
10 Hose 1
11 Plug M16  11
mm 2
12 O-ring 2
13 Screw M5  25
mm 2
14 Anode 2
15 Plug M14  12
mm 1
16 Gasket 1
17 Bolt M8  50
mm 2
18 Bolt M8  70
mm 1
19 Bolt M10  110 mm 10
20 Cylinder head 1
21 Gasket 1
22 Dowel pin 2
Part name Q’ty Remarks
