Cylinder block
7-45
b. Install new O-rings “1” and the oil
pump assembly “2” by aligning the oil
pump gear with the crankshaft.

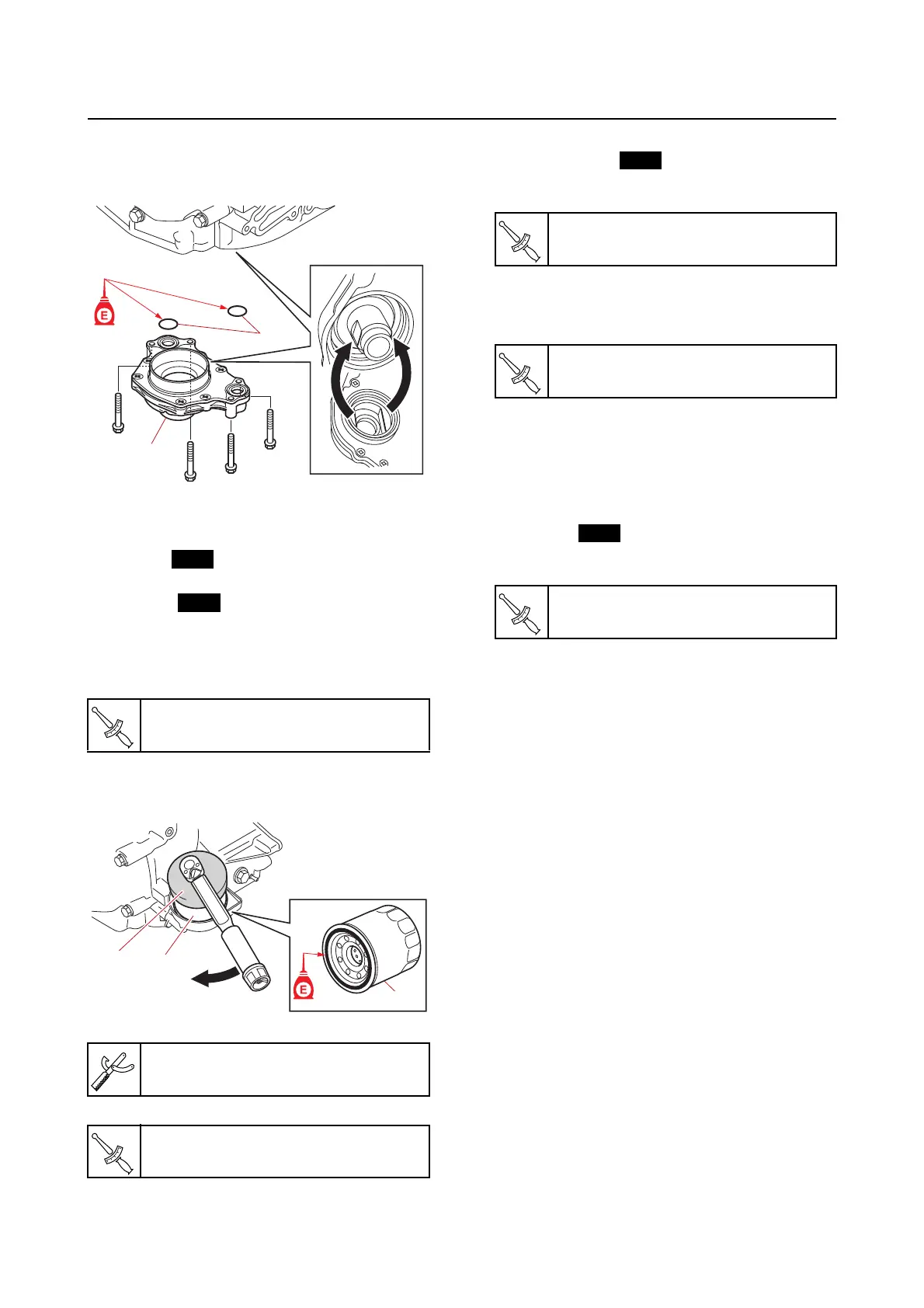

Installing the oil filter
1. Install:
• O-ring (to the relief valve)
• Reli
ef valve
• Gask
et
• Oil filte
r bracket
• Oil filte
r bracket bolt
• Union bolt
2. Install:
• Oil fil
ter “1”
3. Install:
• Plug gasket
• Plug
4. Install:
• Oil pressure switch
5. Install:
• Engine hanger
• Engine hanger bolt
• Anode (to the anode screw)
• Anode scre
w (to the anode plug)
• O-ring (to the anode plug)
• Anode plug
Union bolt
49 N·m (4.9 kgf·m, 36 lb·ft)
Oil filter wrench “2”
90890-01426
Oil filter “1”
18 N·m (1.8 kgf·m, 13 lb·ft)
2
1
New
New
T
R
.
.
1
1
2
T
R
.
.
Plug
56 N·m (5.6 kgf·m, 41 lb·ft)
Oil pressure switch
8 N·m (0.8 kgf·m, 5.9 lb·ft)
Anode plug
18 N·m (1.8 kgf·m, 13 lb·ft)
New
T
R
.
.
T
R
.
.
New
T
R
.
.
